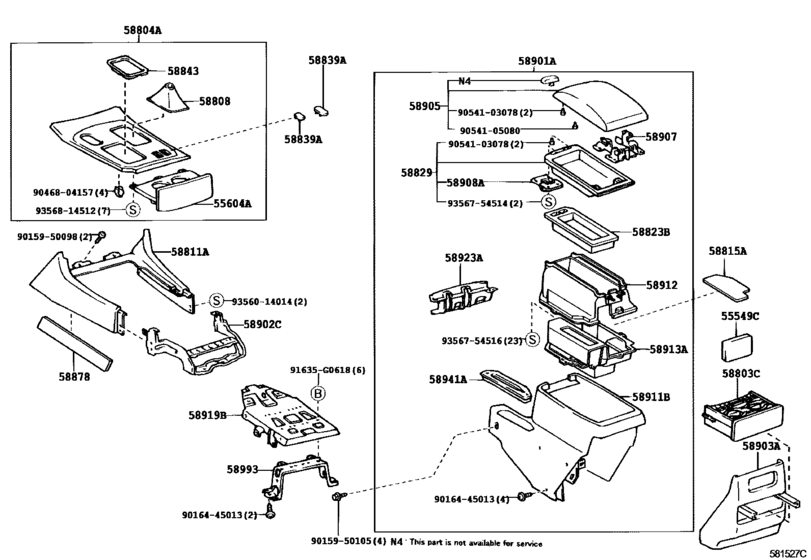

Console Box & Bracket ([08.2000 - 08.2002] W(ELECTRO MULTI VISION) (0008-0208)) Diagram Toyota LEXUS LX
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55549C
|
55549C
55549-60030-A0
Cover, Rear Cooler Switch Hole
[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
55549-60030-A0 |
— | ||
| replacement | |||||
|
55549C
|
55549C
55549-60030-B2 Cover, Rear Cooler Switch Hole[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
55549-60030-B2 |
from US $12.01 |
||
|
55549C
|
55549C
55549-60030-B1 Cover, Rear Cooler Switch Hole[01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
55549-60030-B1 |
US $11.79 |
||
| replacement | |||||
|
55549C
|
55549C
55549-60030-B2 Cover, Rear Cooler Switch Hole[01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
55549-60030-B2 |
from US $12.01 |
||
|
55604A
|
55604A
55604-60100 Holder Sub-Assy, Instrument Panel Cup[01.1998 - 07.1999] UZJ100 |
55604-60100 |
US $527.07 |
||
| replacement | |||||
|
55604A
|
55604A
55604-60130
Holder Sub-Assy, Instrument Panel Cup
[01.1998 - 07.1999] UZJ100 |
55604-60130 |
— | ||
|
55604A
|
55604A
55604-60130
Holder Sub-Assy, Instrument Panel Cup
[07.1999 - 08.2002] UZJ100 |
55604-60130 |
— | ||
|
58803C
|
58803C
58803-60010-A0
Box Sub-Assy, Console Cup Holder
[01.1998 - 09.1998] UZJ100 IVORY,TRIM4# |
58803-60010-A0 |
— | ||
| replacement | |||||
|
58803C
|
58803C
58803-60H00-B0
Box Sub-Assy, Console Cup Holder
[01.1998 - 09.1998] UZJ100 IVORY,TRIM4# |
58803-60H00-B0 |
— | ||
|
58803C
|
58803C
58803-60010-B0 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [01.1998 - 09.1998] UZJ100 MD. GRAY,TRIM1# |
58803-60010-B0 |
US $69.01 |
||
| replacement | |||||
|
58803C
|
58803C
58803-60H00-B0
Box Sub-Assy, Console Cup Holder
[01.1998 - 09.1998] UZJ100 MD. GRAY,TRIM1# |
58803-60H00-B0 |
— | ||
|
58803C
|
58803C
58803-60011-A0 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [09.1998 - 01.2002] UZJ100 IVORY,TRIM4# |
58803-60011-A0 |
US $69.01 |
||
| replacement | |||||
|
58803C
|
58803C
58803-60012-B1
Box Sub-Assy, Console Cup Holder
[09.1998 - 01.2002] UZJ100 IVORY,TRIM4# |
58803-60012-B1 |
— | ||
|
58803C
|
58803C
58803-60011-B0 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [09.1998 - 01.2002] UZJ100 MD.GRAY,TRIM1# |
58803-60011-B0 |
US $69.01 |
||
| replacement | |||||
|
58803C
|
58803C
58803-60012-B1
Box Sub-Assy, Console Cup Holder
[09.1998 - 01.2002] UZJ100 MD.GRAY,TRIM1# |
58803-60012-B1 |
— | ||
|
58803C
|
58803C
58803-60012-A0
Box Sub-Assy, Console Cup Holder
[01.2002 - 08.2002] UZJ100 IVORY,TRIM4# |
58803-60012-A0 |
— | ||
| replacement | |||||
|
58803C
|
58803C
58803-60012-B1
Box Sub-Assy, Console Cup Holder
[01.2002 - 08.2002] UZJ100 IVORY,TRIM4# |
58803-60012-B1 |
— | ||
|
58803C
|
58803C
58803-60012-B0 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [01.2002 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58803-60012-B0 |
US $69.01 |
||
| replacement | |||||
|
58803C
|
58803C
58803-60012-B1
Box Sub-Assy, Console Cup Holder
[01.2002 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58803-60012-B1 |
— | ||
|
58804A
|
58804A
58804-60150 Panel Sub-Assy, Console, Upper[01.1998 - 07.1999] UZJ100 |
58804-60150 |
US $1,776.32 |
||
| replacement | |||||
|
58804A
|
58804A
58804-60151 Panel Sub-Assy, Console, Upper[01.1998 - 07.1999] UZJ100 |
58804-60151 |
US $1,776.32 |
||
|
58804A
|
58804A
58804-60151 Panel Sub-Assy, Console, Upper[07.1999 - 08.2002] UZJ100 |
58804-60151 |
US $1,776.32 |
||
|
58808
|
58808
58808-60130 Cover Sub-Assy, Shifting Hole[01.1998 - 08.2002] UZJ100 |
58808-60130 |
US $59.23 |
||
|
58811A
|
58811A
58811-60180-A0
Box, Console, Front
[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
58811-60180-A0 |
— | ||
| replacement | |||||
|
58811A
|
58811A
58811-60180-B1
Box, Console, Front
[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
58811-60180-B1 |
— | ||
|
58811A
|
58811A
58811-60180-B1
Box, Console, Front
[01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58811-60180-B1 |
— | ||
|
58815A
|
58815A
58815-60060 Carpet, Console BoxCONSOLE BOX [01.1998 - 08.2002] UZJ100 |
58815-60060 |
US $6.41 |
||
|
58815A
|
58815A
58815-60080 Carpet, Console BoxCONSOLE BOX [08.2000 - 08.2002] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM) |
58815-60080 |
US $5.53 |
||
|
58823B
|
58823B
58823-60020 Box, Console CompartmentCONSOLE COMPARTMENT [01.1998 - 08.2000] UZJ100 |
58823-60020 |
US $50.09 |
||
|
58823B
|
58823B
58823-60030 Box, Console CompartmentCONSOLE COMPARTMENT [08.2000 - 08.2002] UZJ100 |
58823-60030 |
US $39.17 |
||
|
58829
|
58829
58806-60050 Pocket, Console BoxCONSOLE BOX [01.1998 - 08.2000] UZJ100 |
58806-60050 |
US $62.32 |
||
| replacement | |||||
|
58829
|
58829
58806-60051 Pocket, Console BoxCONSOLE BOX [01.1998 - 08.2000] UZJ100 |
58806-60051 |
US $62.32 |
||
|
58829
|
58829
58806-60051 Pocket, Console BoxCONSOLE BOX [08.2000 - 08.2002] UZJ100 |
58806-60051 |
US $62.32 |
||
|
58839A
|
58839A
58839-60020 Cover, Console Box Hole[01.1998 - 07.1999] UZJ100 |
58839-60020 |
US $10.48 |
||
|
58843
|
58843
58843-60010 Bezel, Shifting Hole[01.1998 - 08.2002] UZJ100 |
58843-60010 |
from US $9.43 |
||
|
58878
|
58878
58878-60040 Pad, Console Box Silencer, No.4[01.1998 - 08.2002] UZJ100 |
58878-60040 |
US $3.93 |
||
|
58901A
|
58901A
58901-60260-A0 Box Sub-Assy, Console, RearCONSOLE, REAR [01.1998 - 08.2000] UZJ100 IVORY,TRIM4# |
58901-60260-A0 |
US $1,118.21 |
||
|
58901A
|
58901A
58901-60260-B0 Box Sub-Assy, Console, RearCONSOLE, REAR [01.1998 - 08.2000] UZJ100 MD.GRAY,TRIM1# |
58901-60260-B0 |
US $1,118.21 |
||
|
58901A
|
58901A
58901-60261-A0 Box Sub-Assy, Console, RearCONSOLE, REAR [08.2000 - 08.2002] UZJ100 IVORY,TRIM4# |
58901-60261-A0 |
US $1,185.18 |
||
|
58901A
|
58901A
58901-60261-B0 Box Sub-Assy, Console, RearCONSOLE, REAR [08.2000 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58901-60261-B0 |
US $1,185.18 |
||
|
58901A
|
58901A
58901-60500-A0 Box Sub-Assy, Console, RearCONSOLE, REAR [08.2000 - 08.2002] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),IVORY,TRIM4# |
58901-60500-A0 |
US $1,185.18 |
||
|
58901A
|
58901A
58901-60500-B0 Box Sub-Assy, Console, RearCONSOLE, REAR [08.2000 - 08.2002] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),MD.GRAY,TRIM1# |
58901-60500-B0 |
US $1,185.18 |
||
|
58902C
|
58902C
58902-60050 Bracket Sub-Assy, Console Box MountingCONSOLE BOX MOUNTING [01.1998 - 08.2002] UZJ100 |
58902-60050 |
US $40.25 |
||
|
58903A
|
58903A
58903-60020-A0 Panel Sub-Assy, Console Rear EndCONSOLE REAR END [01.1998 - 09.1998] UZJ100 IVORY,TRIM4# |
58903-60020-A0 |
US $215.49 |
||
| replacement | |||||
|
58903A
|
58903A
58903-60H00-A0 Panel Sub-Assy, Console Rear End[01.1998 - 09.1998] UZJ100 IVORY,TRIM4# |
58903-60H00-A0 |
US $215.49 |
||
|
58903A
|
58903A
58903-60020-B0 Panel Sub-Assy, Console Rear EndCONSOLE REAR END [01.1998 - 09.1998] UZJ100 MD.GRAY,TRIM1# |
58903-60020-B0 |
US $215.49 |
||
| replacement | |||||
|
58903A
|
58903A
58903-60H00-B0 Panel Sub-Assy, Console Rear End[01.1998 - 09.1998] UZJ100 MD.GRAY,TRIM1# |
58903-60H00-B0 |
US $215.49 |
||
|
58903A
|
58903A
58903-60021-A0 Panel Sub-Assy, Console Rear EndCONSOLE REAR END [09.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
58903-60021-A0 |
US $215.49 |
||
| replacement | |||||
|
58903A
|
58903A
58903-60021-B1 Panel Sub-Assy, Console Rear EndCONSOLE REAR END [09.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
58903-60021-B1 |
US $215.49 |
||
|
58903A
|
58903A
58903-60021-B0 Panel Sub-Assy, Console Rear EndCONSOLE REAR END [09.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58903-60021-B0 |
US $215.49 |
||
| replacement | |||||
|
58903A
|
58903A
58903-60021-B1 Panel Sub-Assy, Console Rear EndCONSOLE REAR END [09.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58903-60021-B1 |
US $215.49 |
||
|
58905
|
58905
58905-60120-A0 Door Sub-Assy, Console Compartment[01.1998 - 08.2000] UZJ100 IVORY,TRIM4# |
58905-60120-A0 |
US $473.20 |
||
| replacement | |||||
|
58905
|
58905
58905-60110-A0
Door Sub-Assy, Console Compartment
[01.1998 - 08.2000] UZJ100 IVORY,TRIM4# |
58905-60110-A0 |
— | ||
|
58905
|
58905
58905-60120-B0 Door Sub-Assy, Console Compartment[01.1998 - 08.2000] UZJ100 MD.GRAY,TRIM1# |
58905-60120-B0 |
US $473.20 |
||
| replacement | |||||
|
58905
|
58905
58905-60141-B1 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [01.1998 - 08.2000] UZJ100 MD.GRAY,TRIM1# |
58905-60141-B1 |
US $541.63 |
||
|
58905
|
58905
58905-60150-A0 Door Sub-Assy, Console Compartment[08.2000 - 08.2002] UZJ100 IVORY,TRIM4# |
58905-60150-A0 |
US $541.63 |
||
| replacement | |||||
|
58905
|
58905
58905-60141-A1
Door Sub-Assy, Console Compartment
[08.2000 - 08.2002] UZJ100 IVORY,TRIM4# |
58905-60141-A1 |
— | ||
|
58905
|
58905
58905-60150-B0 Door Sub-Assy, Console Compartment[08.2000 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58905-60150-B0 |
US $541.63 |
||
| replacement | |||||
|
58905
|
58905
58905-60141-B0 Door Sub-Assy, Console Compartment[08.2000 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58905-60141-B0 |
US $541.63 |
||
|
58907
|
58907
58907-60050
Hinge Sub-Assy, Console Compartment Door
[01.1998 - 08.2000] UZJ100 |
58907-60050 |
— | ||
|
58907
|
58907
58907-60051 Hinge Sub-Assy, Console Compartment DoorCONSOLE COMPARTMENT DOOR [08.2000 - 08.2002] UZJ100 |
58907-60051 |
US $66.39 |
||
|
58908A
|
58908A
58908-32050 Lock Sub-Assy, Console Compartment Door[01.1998 - 08.2002] UZJ100 |
58908-32050 |
from US $9.42 |
||
|
58911B
|
58911B
58911-60100-A0 Panel, Box, No.1BOX, NO.1 [01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
58911-60100-A0 |
US $311.58 |
||
|
58911B
|
58911B
58911-60100-B0 Panel, Box, No.1BOX, NO.1 [01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
58911-60100-B0 |
US $311.58 |
||
|
58912
|
58912
58912-60050
Box, Rear Console, No.2
[01.1998 - 08.2002] UZJ100 |
58912-60050 |
— | ||
|
58912
|
58912
58912-60070 Box, Rear Console, No.2REAR CONSOLE, NO.2 [08.2000 - 08.2002] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM) |
58912-60070 |
US $94.64 |
||
|
58913A
|
58913A
58913-60010
Panel, Box, No.3
[01.1998 - 08.2002] UZJ100 |
58913-60010 |
— | ||
|
58913A
|
58913A
58913-60020 Panel, Box, No.3BOX, NO.3 [08.2000 - 08.2002] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM) |
58913-60020 |
US $120.85 |
||
|
58919B
|
58919B
58085-60010 Plate, Console BoxCONSOLE BOX [08.2000 - 08.2002] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM) |
58085-60010 |
US $88.82 |
||
|
58919B
|
58919B
58919-60020 Plate, Console Box[01.1998 - 08.2002] UZJ100 |
58919-60020 |
US $84.91 |
||
|
58923A
|
58923A
58923-60030
Panel, Console Rear End
[01.1998 - 08.2002] UZJ100 |
58923-60030 |
— | ||
|
58941A
|
58941A
58941-60040
Cover, Parking Brake Hole
[01.1998 - 08.2002] UZJ100 |
58941-60040 |
— | ||
|
58993
|
58993
58993-60030 Bracket, Console Box Mounting, Rear[03.1998 - 08.2002] UZJ100 |
58993-60030 |
US $33.37 |
||
|
58993
|
58993
58993-60050 Bracket, Console Box Mounting, RearCONSOLE BOX MOUNTING, REAR [01.1998 - 03.1998] UZJ100 |
58993-60050 |
US $34.07 |
||
| replacement | |||||
|
58993
|
58993
58993-60030 Bracket, Console Box Mounting, Rear[01.1998 - 03.1998] UZJ100 |
58993-60030 |
US $33.37 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.76 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.52 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.68 |
||
|
9016445013
|
9016445013
90164-45013 SCREW BINDING |
90164-45013 |
US $1.92 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.90 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.76 |
||
|
9054105080
|
9054105080
90541-05080 Cushion(For Glove Compartment) |
90541-05080 |
from US $1.49 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
from US $0.96 |
||
|
9356754514
|
9356754514
93567-54514 SCREW TAPPING |
93567-54514 |
US $1.28 |
||
| replacement | |||||
|
9356754514
|
9356754514
93567-A5014 SCREW TAPPING |
93567-A5014 |
from US $0.74 |
||
|
9356754516
|
9356754516
93567-54516
SCREW TAPPING
|
93567-54516 |
— | ||
| replacement | |||||
|
9356754516
|
9356754516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9356814512
|
9356814512
93568-14512
New Genuine Part
|
93568-14512 |
— | ||
| replacement | |||||
|
9356814512
|
9356814512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
