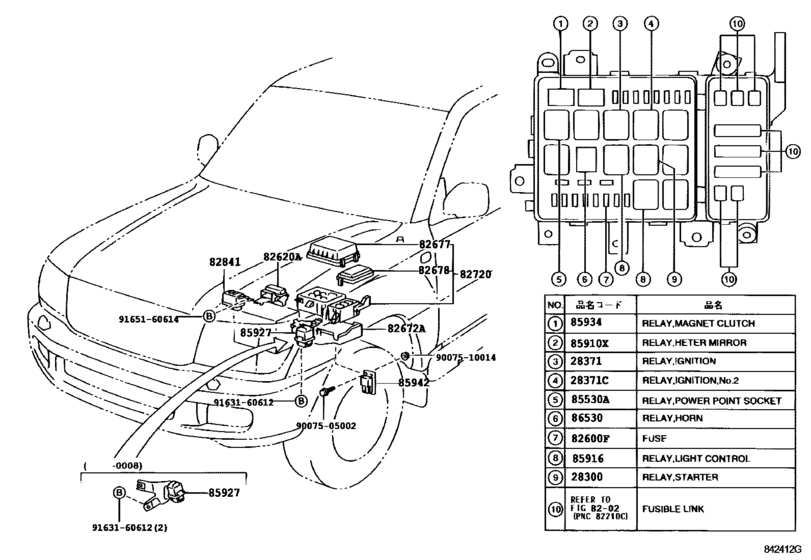

Switch & Relay & Computer ([01.1998 - 08.2002] ENGINE ROOM (9801-0208)) Diagram Toyota LEXUS LX
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-46010 Relay Assy, Starter[01.1998 - 08.2002] 2UZFE..UZJ100 |
28300-46010 |
from US $57.15 |
||
|
28371
|
28371
90987-02006 Relay[01.1998 - 08.2002] 2UZFE..UZJ100 |
90987-02006 |
from US $30.99 |
||
|
28371C
|
28371C
90987-02006 Relay[01.1998 - 08.2002] 2UZFE..UZJ100 |
90987-02006 |
from US $30.99 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[01.1998 - 08.2002] UZJ100 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1998 - 08.2002] UZJ100 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1998 - 08.2002] UZJ100 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.1998 - 08.2002] UZJ100 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2000 - 08.2002] UZJ100 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[01.1998 - 08.2002] UZJ100 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82620A
|
82620A
82620-60010 Block Assy, Fusible Link[01.1998 - 08.2002] UZJ100 |
82620-60010 |
from US $49.63 |
||
|
82672A
|
82672A
82674-60010 Cover, Junction Block[01.1998 - 08.2002] UZJ100 |
82674-60010 |
from US $39.12 |
||
|
82677
|
82677
82677-60010
Cover, Junction Block, Upper No.2
[01.1998 - 08.1998] UZJ100 |
82677-60010 |
— | ||
|
82677
|
82677
82677-60020
Cover, Junction Block, Upper No.2
[08.1998 - 11.1998] UZJ100 |
82677-60020 |
— | ||
|
82677
|
82677
82677-60021
Cover, Junction Block, Upper No.2
[11.1998 - 07.1999] UZJ100 |
82677-60021 |
— | ||
|
82677
|
82677
82677-60022
Cover, Junction Block, Upper No.2
[07.1999 - 08.2002] UZJ100 |
82677-60022 |
— | ||
|
82678
|
82678
82678-60010
Cover, Junction Block, Upper No.3
[01.1998 - 08.2002] UZJ100 |
82678-60010 |
— | ||
|
82720
|
82720
82720-60020
Block Assy, Engine Room Junction
[01.1998 - 08.1998] UZJ100 |
82720-60020 |
— | ||
|
82720
|
82720
82720-60021
Block Assy, Engine Room Junction
[08.1998 - 11.1998] UZJ100 |
82720-60021 |
— | ||
|
82720
|
82720
82720-60022
Block Assy, Engine Room Junction
[11.1998 - 07.1999] UZJ100 |
82720-60022 |
— | ||
|
82720
|
82720
82720-60023 Block Assy, Engine Room Junction[07.1999 - 08.2002] UZJ100 |
82720-60023 |
from US $621.04 |
||
|
82841
|
82841
82840-60020 Relay, Running Light Voltage ControlRUNNING LIGHT VOLTAGE CONTROL [01.1998 - 08.2002] UZJ100 |
82840-60020 |
US $101.92 |
||
|
85530A
|
85530A
90987-02006 Relay[01.1998 - 08.2002] UZJ100 |
90987-02006 |
from US $30.99 |
||
|
85910X
|
85910X
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2002] UZJ100 |
90987-02012 |
from US $27.85 |
||
|
85916
|
85916
85916-30060 Relay, Light Control[01.1998 - 08.2002] UZJ100 |
85916-30060 |
from US $86.89 |
||
|
85927
|
85927
88630-60090
Relay, Cooling Fan
[01.1998 - 08.2000] UZJ100 MARK = 1 |
88630-60090 |
— | ||
| replacement | |||||
|
85927
|
85927
88840-60070
Relay, Cooling Fan
[01.1998 - 08.2000] UZJ100 MARK = 1 |
88840-60070 |
— | ||
|
85927
|
85927
88630-60091 Relay, Cooling Fan[08.2000 - 08.2002] UZJ100 |
88630-60091 |
US $53.11 |
||
|
85927
|
85927
88630-60150
Relay, Cooling Fan
[05.2000 - 08.2000] UZJ100 MARK = 4 |
88630-60150 |
— | ||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2002] UZJ100 |
90987-02012 |
from US $27.85 |
||
|
85942
|
85942
85942-33010 Relay, Cleaner Control[01.1998 - 08.2002] UZJ100 |
85942-33010 |
US $164.24 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[01.1998 - 08.2002] UZJ100 |
86530-20070 |
from US $12.54 |
||
|
9007505002
|
9007505002
90075-05002 New Genuine Part |
90075-05002 |
US $1.14 |
||
|
9007510014
|
9007510014
90075-10014 New Genuine Part |
90075-10014 |
US $1.05 |
||
|
9163160612
|
9163160612
91631-60612
New Genuine Part
|
91631-60612 |
— | ||
| replacement | |||||
|
9163160612
|
9163160612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
