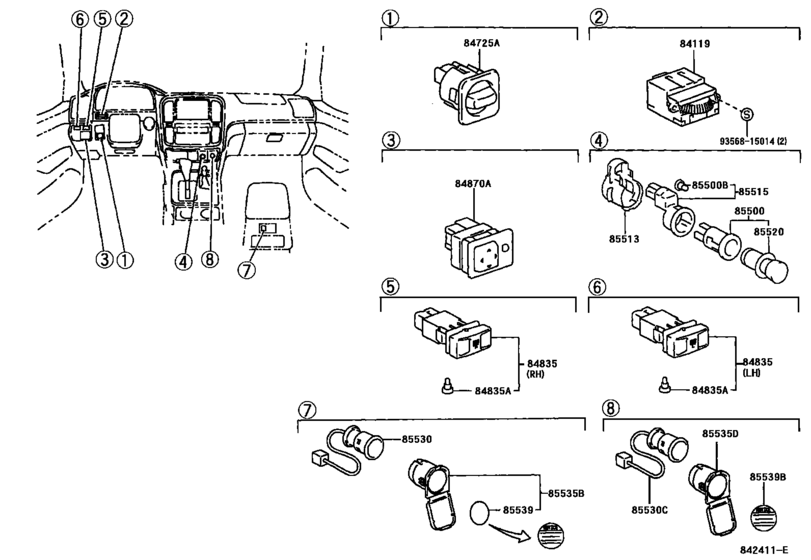

Switch & Relay & Computer ([01.1998 - 08.2002] INSTRUMENT PANEL SWITCH (9801-0208)) Diagram Toyota LEXUS LX
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-60060 Rheostat, Light ControlLIGHT CONTROL [01.1998 - 08.2002] UZJ100 |
84119-60060 |
US $123.76 |
||
| replacement | |||||
|
84119
|
84119
84119-60070 Rheostat, Light Control[01.1998 - 08.2002] UZJ100 |
84119-60070 |
US $123.76 |
||
|
84725A
|
84725A
84725-60030 Switch, Center Differential Lock[01.1998 - 07.1999] UZJ100 |
84725-60030 |
from US $36.70 |
||
|
84835
|
84835
84835-60010 Switch, Power Quarter Window[01.1998 - 08.2002] UZJ100 RH |
84835-60010 |
US $81.54 |
||
| replacement | |||||
|
84835
|
84835
84835-60040
Switch, Power Quarter Window
[01.1998 - 08.2002] UZJ100 RH |
84835-60040 |
— | ||
|
84835
|
84835
84835-60020 Switch, Power Quarter Window[01.1998 - 08.2002] UZJ100 LH |
84835-60020 |
US $81.54 |
||
| replacement | |||||
|
84835
|
84835
84835-60030 Switch, Power Quarter Window[01.1998 - 08.2002] UZJ100 LH |
84835-60030 |
US $81.54 |
||
|
84835A
|
84835A
84999-10310 Bulb, Air Conditioner Control[01.1998 - 08.2002] UZJ100 |
84999-10310 |
from US $2.96 |
||
|
84870A
|
84870A
84870-60060 Switch Assy, Outer MirrorOUTER MIRROR [01.1998 - 08.1998] UZJ100 |
84870-60060 |
US $94.64 |
||
|
84870A
|
84870A
84870-60080 Switch Assy, Outer Mirror[08.1998 - 08.2002] UZJ100 |
84870-60080 |
from US $105.08 |
||
|
85500
|
85500
85500-89106
Lighter Assy, Cigarette
[01.1998 - 08.2002] UZJ100 |
85500-89106 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[01.1998 - 08.2002] UZJ100 |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[01.1998 - 08.2002] UZJ100 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.69 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[01.1998 - 08.2002] UZJ100 |
85513-12020 |
from US $5.21 |
||
|
85515
|
85515
85515-60010 Stay, Cigarette Lighter Bezel[01.1998 - 08.2002] UZJ100 |
85515-60010 |
from US $7.92 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[01.1998 - 08.2002] UZJ100 |
85520-89101 |
from US $19.85 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[01.1998 - 08.2002] UZJ100 |
85530-33020 |
from US $16.05 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[01.1998 - 08.2002] UZJ100 |
85530-06010 |
from US $26.06 |
||
|
85530C
|
85530C
85530-60030 Socket Assy, Power Outlet, CenterPOWER OUTLET, CENTER [01.1998 - 08.2002] UZJ100 |
85530-60030 |
US $37.56 |
||
| replacement | |||||
|
85530C
|
85530C
85530-60010 Socket Assy, Power Outlet, Rear No.1[01.1998 - 08.2002] UZJ100 |
85530-60010 |
US $36.52 |
||
|
85535B
|
85535B
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[01.1998 - 08.2002] UZJ100 BLACK,TRIM1#,4# |
85535-60040-C0 |
from US $10.80 |
||
|
85535D
|
85535D
85535-33020 Cover, Power Outlet Socket, No.1[01.1998 - 08.2002] UZJ100 |
85535-33020 |
US $11.36 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[01.1998 - 08.2002] UZJ100 |
85539-60020 |
US $1.41 |
||
|
85539B
|
85539B
85539-60030 Label, Power Outlet NoticePOWER OUTLET NOTICE [01.1998 - 08.2002] UZJ100 |
85539-60030 |
US $1.60 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
