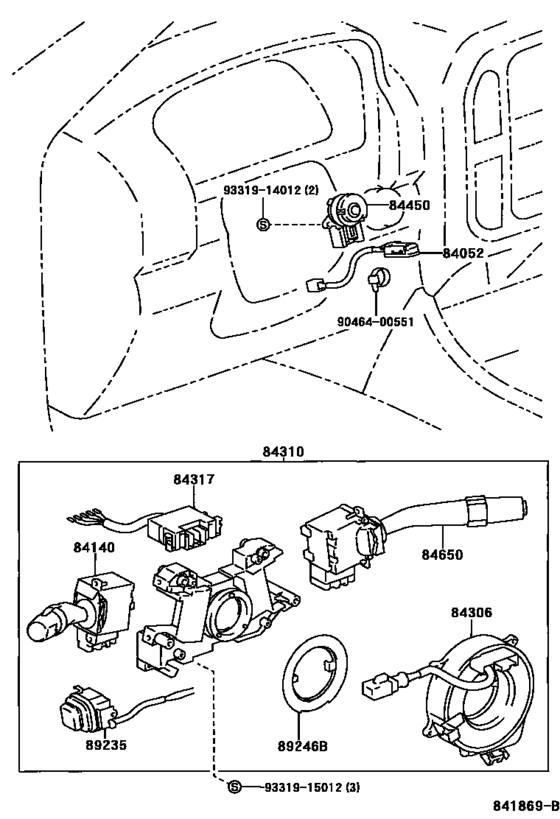

Switch & Relay & Computer ([01.1998 - 08.2002] IGNITION & COMBINATION SWITCH (9801-0208)) Diagram Toyota LEXUS LX
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-33040 Switch Assy, Un-Lock Warning[01.1998 - 08.2002] UZJ100 |
84052-33040 |
US $22.54 |
||
|
84140
|
84140
84140-33020 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [01.1998 - 08.2002] UZJ100 |
84140-33020 |
from US $124.27 |
||
|
84306
|
84306
84306-60050 Cable Sub-Assy, Spiral[01.1998 - 08.2002] UZJ100 |
84306-60050 |
from US $230.10 |
||
|
84310
|
84310
84310-6A590 Switch Assy, Turn SignalTURN SIGNAL [01.1998 - 07.1999] UZJ100 |
84310-6A590 |
US $557.65 |
||
|
84310
|
84310
84310-6A591 Switch Assy, Turn SignalTURN SIGNAL [07.1999 - 08.2002] UZJ100 |
84310-6A591 |
US $631.90 |
||
|
84310
|
84310
84310-6A600 Switch Assy, Turn SignalTURN SIGNAL [01.1998 - 07.1999] UZJ100 W(HEADLAMP CLEANER) |
84310-6A600 |
US $567.84 |
||
|
84310
|
84310
84310-6A601 Switch Assy, Turn SignalTURN SIGNAL [07.1999 - 08.2002] UZJ100 W(HEADLAMP CLEANER) |
84310-6A601 |
US $643.55 |
||
|
84317
|
84317
84317-33030
Sensor, Steering Position
[01.1998 - 07.1999] UZJ100 |
84317-33030 |
— | ||
|
84317
|
84317
89245-60010 Sensor, Steering Position[07.1999 - 08.2002] UZJ100 |
89245-60010 |
US $253.34 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[01.1998 - 08.2002] UZJ100 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-60840 Switch Assy, Windshield WiperWINDSHIELD WIPER [01.1998 - 08.2002] UZJ100 |
84652-60840 |
US $152.88 |
||
|
84650
|
84650
84652-60850 Switch Assy, Windshield WiperWINDSHIELD WIPER [01.1998 - 08.2002] UZJ100 W(HEADLAMP CLEANER) |
84652-60850 |
US $163.07 |
||
|
89235
|
89235
89235-50070 Switch, Tilt Steering[01.1998 - 08.2002] UZJ100 |
89235-50070 |
US $53.46 |
||
|
89246B
|
89246B
89246-50010 Disc, Sensor Steering[07.1999 - 08.2002] UZJ100 |
89246-50010 |
from US $92 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
