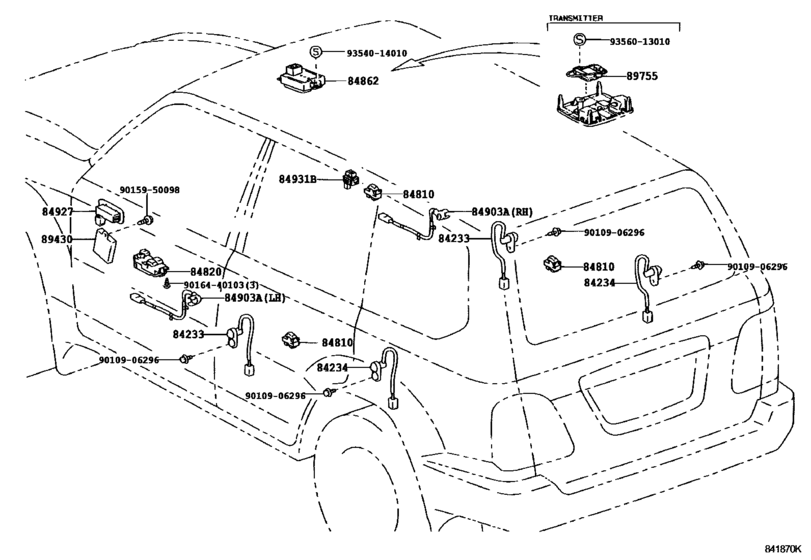

Switch & Relay & Computer ([01.1998 - 08.2002] DOOR & ROOF (9801-0208)) Diagram Toyota LEXUS LX
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[01.1998 - 08.2002] UZJ100 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[01.1998 - 08.2002] UZJ100 |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-60040 Switch Assy, Power Window Regulator[01.1998 - 08.2002] UZJ100 |
84810-60040 |
from US $270.82 |
||
|
84820
|
84820
84820-60100 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [01.1998 - 08.2002] UZJ100 |
84820-60100 |
US $1,084.28 |
||
|
84862
|
84862
84862-60020-A0
Switch, Slide Roof Motor
[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
84862-60020-A0 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60020-B0 Switch, Slide Roof Motor[01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
84862-60020-B0 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84903A
|
84903A
84903-60010
Switch Sub-Assy, Door Unlock
[01.1998 - 08.2000] UZJ100 RH |
84903-60010 |
— | ||
|
84903A
|
84903A
84903-60020 Switch Sub-Assy, Door UnlockDOOR UNLOCK [01.1998 - 08.2000] UZJ100 LH |
84903-60020 |
US $172.79 |
||
|
84903A
|
84903A
84903-60040
Switch Sub-Assy, Door Unlock
[01.1998 - 08.2000] UZJ100 BACK DOOR |
84903-60040 |
— | ||
|
84903A
|
84903A
84903-60060 Switch Sub-Assy, Door Unlock[08.2000 - 08.2002] UZJ100 LH |
84903-60060 |
from US $60.28 |
||
|
84903A
|
84903A
84903-60070 Switch Sub-Assy, Door Unlock[08.2000 - 08.2002] UZJ100 RH |
84903-60070 |
US $62.03 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2000 - 08.2002] UZJ100 BACK DOOR |
84903-60080 |
US $43.51 |
||
|
84927
|
84927
84927-60020-B0 Switch, Seat MemorySEAT MEMORY [01.1998 - 08.2002] UZJ100 SHADOW GRAY,TRIM1# |
84927-60020-B0 |
US $88.82 |
||
| replacement | |||||
|
84927
|
84927
84927-60020-B1
Switch, Seat Memory
[01.1998 - 08.2002] UZJ100 SHADOW GRAY,TRIM1# |
84927-60020-B1 |
— | ||
|
84927
|
84927
84927-60020-E0 Switch, Seat MemorySEAT MEMORY [01.1998 - 08.2002] UZJ100 OAK,TRIM4# |
84927-60020-E0 |
US $88.82 |
||
| replacement | |||||
|
84927
|
84927
84927-60020-B1
Switch, Seat Memory
[01.1998 - 08.2002] UZJ100 OAK,TRIM4# |
84927-60020-B1 |
— | ||
|
84931B
|
84931B
84930-33050
Switch Assy, Door Control
[01.1998 - 08.2002] UZJ100 |
84930-33050 |
— | ||
|
89430
|
89430
89430-60020 Computer Assy, Outer Mirror ControlOUTER MIRROR CONTROL [01.1998 - 08.2002] UZJ100 |
89430-60020 |
US $310.13 |
||
|
89755
|
89755
89755-0W060-A0
Transmitter, Garage Door Opener
[01.1998 - 08.2002] UZJ100 IVORY,TRIM4# |
89755-0W060-A0 |
— | ||
|
89755
|
89755
89755-0W060-B0
Transmitter, Garage Door Opener
[01.1998 - 08.2002] UZJ100 MD.GRAY,TRIM1# |
89755-0W060-B0 |
— | ||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.44 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.52 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
|
9356013010
|
9356013010
93560-13010 New Genuine Part |
93560-13010 |
US $0.67 |
||
