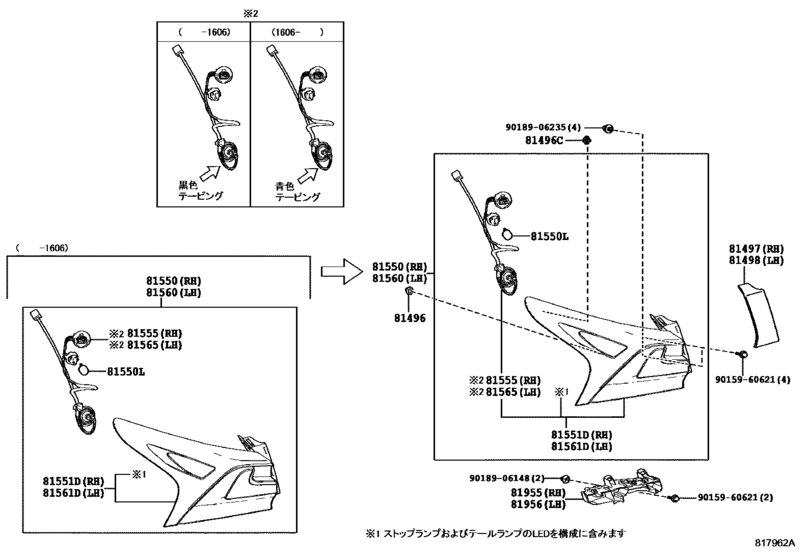

Rear Combination Lamp ([07.2014 - ] ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ (1407- )) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-52020 Guide, Rear Combination Lamp[07.2014 -] AGZ1#,AYZ1# |
81496-52020 |
from US $0.82 |
||
|
81496C
|
81496C
81496-60010 Guide, Rear Combination Lamp[07.2014 -] AGZ1#,AYZ1# |
81496-60010 |
from US $1.11 |
||
|
81497
|
81497
81497-78010 Cover, Rear Combination Lamp, Rh[07.2014 -] AGZ1#,AYZ1# |
81497-78010 |
from US $14.59 |
||
|
81498
|
81498
81498-78010 Cover, Rear Combination Lamp, Lh[07.2014 -] AGZ1#,AYZ1# |
81498-78010 |
from US $14.98 |
||
|
81550
|
81550
81550-78020 Lamp Assy, Rear Combination, Rh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５５５参照 |
81550-78020 |
US $544.54 |
||
| replacement | |||||
|
81550
|
81550
81550-78021 Lamp Assy, Rear Combination, Rh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５５５参照 |
81550-78021 |
US $495.04 |
||
|
81550
|
81550
81550-78021 Lamp Assy, Rear Combination, Rh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５５５参照 |
81550-78021 |
US $495.04 |
||
|
81550L
|
81550L
90981-15011-79 Bulb (For Turn Signal Lamp)[07.2014 -] AGZ1#,AYZ1# １２Ｖ ２１Ｗ，アンバー |
90981-15011-79 |
US $5.38 |
||
|
81551D
|
81551D
81551-78020 Lens & Body, Rear Combination Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５５５参照 |
81551-78020 |
US $538.72 |
||
| replacement | |||||
|
81551D
|
81551D
81551-78021 Lens & Body, Rear Combination Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５５５参照 |
81551-78021 |
from US $411.16 |
||
|
81551D
|
81551D
81551-78021 Lens & Body, Rear Combination Lamp, Rh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５５５参照 |
81551-78021 |
from US $411.16 |
||
|
81555
|
81555
81555-78010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ブラツク テ−ピング |
81555-78010 |
US $18.78 |
||
|
81555
|
81555
81555-78011 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2016 -] AGZ1#,AYZ1# ブル− テ−ピング |
81555-78011 |
US $17.04 |
||
|
81560
|
81560
81560-78020 Lamp Assy, Rear Combination, Lh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５６５参照 |
81560-78020 |
US $544.54 |
||
| replacement | |||||
|
81560
|
81560
81560-78021 Lamp Assy, Rear Combination, Lh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５６５参照 |
81560-78021 |
US $495.04 |
||
|
81560
|
81560
81560-78021 Lamp Assy, Rear Combination, Lh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５６５参照 |
81560-78021 |
US $495.04 |
||
|
81561D
|
81561D
81561-78020 Lens & Body, Rear Combination Lamp, Lh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５６５参照 |
81561-78020 |
US $538.72 |
||
| replacement | |||||
|
81561D
|
81561D
81561-78021 Lens & Body, Rear Combination Lamp, Lh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５６５参照 |
81561-78021 |
from US $388.52 |
||
|
81561D
|
81561D
81561-78021 Lens & Body, Rear Combination Lamp, Lh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５６５参照 |
81561-78021 |
from US $388.52 |
||
|
81565
|
81565
81555-78010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ブラツク テ−ピング |
81555-78010 |
US $18.78 |
||
|
81565
|
81565
81555-78011 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2016 -] AGZ1#,AYZ1# ブル− テ−ピング |
81555-78011 |
US $17.04 |
||
|
81955
|
81955
52562-78010 Retainer, Rear Combination Lamp, Rh[07.2014 -] AGZ1#,AYZ1# |
52562-78010 |
from US $49.14 |
||
|
81956
|
81956
52563-78010 Retainer, Rear Combination Lamp, Lh[07.2014 -] AGZ1#,AYZ1# |
52563-78010 |
from US $51.38 |
||
|
9015960621
|
9015960621
90159-60621 SCREW, W/WASHER |
90159-60621 |
from US $0.60 |
||
|
9018906148
|
9018906148
90189-06148 GROMMET, SCREW |
90189-06148 |
from US $0.82 |
||
|
9018906235
|
9018906235
90189-06235 GROMMET SCREW |
90189-06235 |
from US $0.60 |
||
