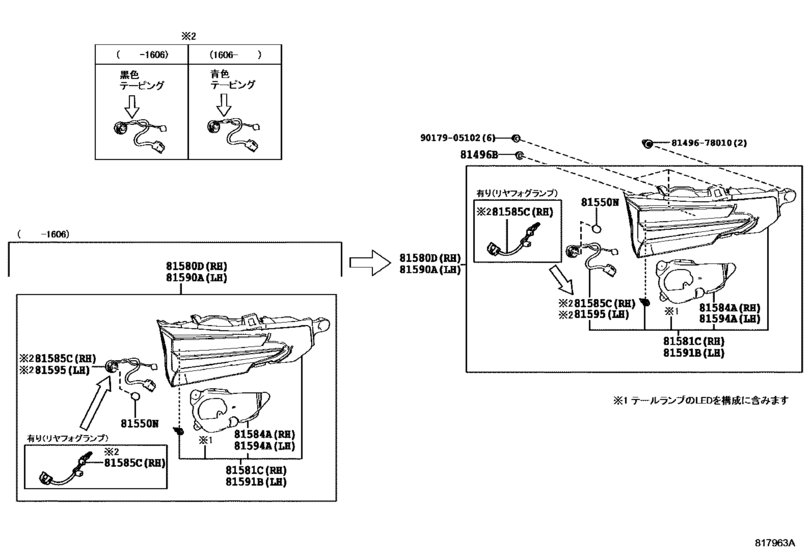

Rear Combination Lamp ([07.2014 - ] ﾘﾔﾗﾝﾌﾟ (1407- )) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496B
|
81496B
81496-52020 Guide, Rear Combination Lamp[07.2014 -] AGZ1#,AYZ1# |
81496-52020 |
from US $0.82 |
||
|
81550N
|
81550N
90981-11059-79 Bulb, Rear Turn Signal Lamp[07.2014 -] AGZ1#,AYZ1# １２Ｖ １６Ｗ,寒冷地仕様 |
90981-11059-79 |
US $3.58 |
||
|
81580D
|
81580D
81580-78010 Lamp Assy, Rear, Rh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５８５Ｃ参照 |
81580-78010 |
US $420.78 |
||
| replacement | |||||
|
81580D
|
81580D
81580-78011 Lamp Assy, Rear, Rh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５８５Ｃ参照 |
81580-78011 |
US $381.47 |
||
|
81580D
|
81580D
81580-78011 Lamp Assy, Rear, Rh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５８５Ｃ参照 |
81580-78011 |
US $381.47 |
||
|
81580D
|
81580D
81580-78020 Lamp Assy, Rear, Rh[07.2014 - 05.2016] AGZ1#,AYZ1# 寒冷地仕様,ＰＮＣ ８１５８５Ｃ参照 |
81580-78020 |
US $500.86 |
||
| replacement | |||||
|
81580D
|
81580D
81580-78021 Lamp Assy, Rear, Rh[07.2014 - 05.2016] AGZ1#,AYZ1# 寒冷地仕様,ＰＮＣ ８１５８５Ｃ参照 |
81580-78021 |
US $454.27 |
||
|
81580D
|
81580D
81580-78021 Lamp Assy, Rear, Rh[06.2016 -] AGZ1#,AYZ1# 寒冷地仕様,ＰＮＣ ８１５８５Ｃ参照 |
81580-78021 |
US $454.27 |
||
|
81581C
|
81581C
81581-78010 Lens And Body, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５８５Ｃ参照 |
81581-78010 |
US $410.59 |
||
| replacement | |||||
|
81581C
|
81581C
81581-78011 Lens And Body, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５８５Ｃ参照 |
81581-78011 |
from US $316.10 |
||
|
81581C
|
81581C
81581-78011 Lens And Body, Rear Lamp, Rh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５８５Ｃ参照 |
81581-78011 |
from US $316.10 |
||
|
81581C
|
81581C
81581-78020 Lens And Body, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# 寒冷地仕様,ＰＮＣ ８１５８５Ｃ参照 |
81581-78020 |
US $495.04 |
||
| replacement | |||||
|
81581C
|
81581C
81581-78021 Lens And Body, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# 寒冷地仕様,ＰＮＣ ８１５８５Ｃ参照 |
81581-78021 |
US $449.90 |
||
|
81581C
|
81581C
81581-78021 Lens And Body, Rear Lamp, Rh[06.2016 -] AGZ1#,AYZ1# 寒冷地仕様,ＰＮＣ ８１５８５Ｃ参照 |
81581-78021 |
US $449.90 |
||
|
81584A
|
81584A
81584-78010 Gasket, Rear Lamp Rh[07.2014 -] AGZ1#,AYZ1# |
81584-78010 |
US $18.14 |
||
|
81585C
|
81585C
81585-78010 Socket & Wire, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ブラツク テ−ピング |
81585-78010 |
US $20.09 |
||
|
81585C
|
81585C
81585-78011 Socket & Wire, Rear Lamp, Rh[06.2016 -] AGZ1#,AYZ1# ブル− テ−ピング |
81585-78011 |
US $18.20 |
||
|
81585C
|
81585C
81585-78020 Socket & Wire, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# 寒冷地仕様,ブラツク テ−ピング |
81585-78020 |
US $20.09 |
||
|
81585C
|
81585C
81585-78021 Socket & Wire, Rear Lamp, Rh[06.2016 -] AGZ1#,AYZ1# 寒冷地仕様,ブル− テ−ピング |
81585-78021 |
US $18.20 |
||
|
81590A
|
81590A
81590-78010 Lamp Assy, Rear, Lh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５９５参照 |
81590-78010 |
US $420.78 |
||
| replacement | |||||
|
81590A
|
81590A
81590-78011 Lamp Assy, Rear, Lh[07.2014 - 05.2016] AGZ1#,AYZ1# ＰＮＣ ８１５９５参照 |
81590-78011 |
US $381.47 |
||
|
81590A
|
81590A
81590-78011 Lamp Assy, Rear, Lh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５９５参照 |
81590-78011 |
US $381.47 |
||
|
81591B
|
81591B
81591-78010 Lens And Body, Rear Lamp, Lh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５９５参照 |
81591-78010 |
US $410.59 |
||
| replacement | |||||
|
81591B
|
81591B
81591-78011 Lens And Body, Rear Lamp, Lh[07.2014 - 06.2016] AGZ1#,AYZ1# ＰＮＣ ８１５９５参照 |
81591-78011 |
from US $309.60 |
||
|
81591B
|
81591B
81591-78011 Lens And Body, Rear Lamp, Lh[06.2016 -] AGZ1#,AYZ1# ＰＮＣ ８１５９５参照 |
81591-78011 |
from US $309.60 |
||
|
81594A
|
81594A
81584-78010 Gasket, Rear Lamp Rh[07.2014 -] AGZ1#,AYZ1# |
81584-78010 |
US $18.14 |
||
|
81595
|
81595
81585-78010 Socket & Wire, Rear Lamp, Rh[07.2014 - 06.2016] AGZ1#,AYZ1# ブラツク テ−ピング |
81585-78010 |
US $20.09 |
||
|
81595
|
81595
81585-78011 Socket & Wire, Rear Lamp, Rh[06.2016 -] AGZ1#,AYZ1# ブル− テ−ピング |
81585-78011 |
US $18.20 |
||
|
8149678010
|
8149678010
81496-78010 Guide, Rear Combination Lamp |
81496-78010 |
from US $1.23 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.76 |
||
