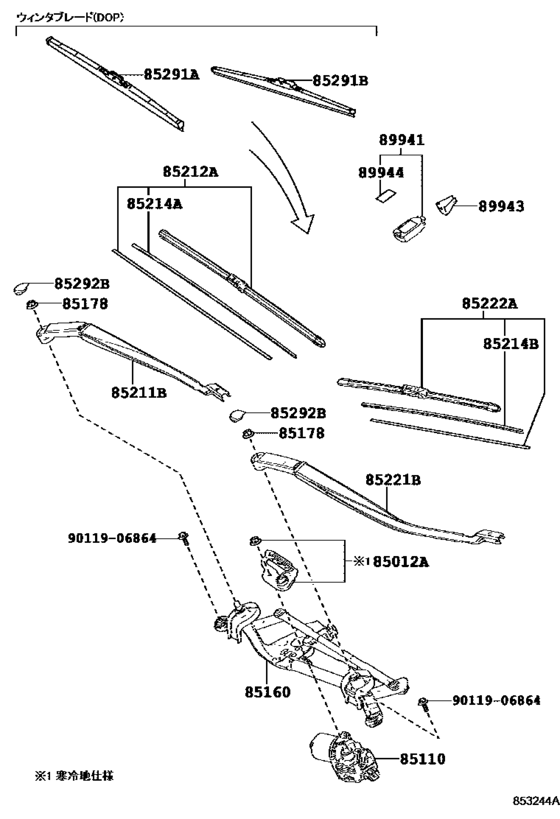

Windshield Wiper ([07.2014 - ] (1407- )) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85012A
|
85012A
85012-58030 Crank Sub-Assy, Front Wiper[07.2014 -] AGZ1#,AYZ1# 寒冷地仕様 |
85012-58030 |
US $19.74 |
||
|
85110
|
85110
85110-48230 Motor Assy, Windshield Wiper[07.2014 -] AGZ1#,AYZ1# 寒冷地仕様 |
85110-48230 |
US $329.16 |
||
|
85110
|
85110
85110-78041 Motor Assy, Windshield Wiper[07.2014 -] AGZ1#,AYZ1# |
85110-78041 |
US $254.80 |
||
|
85160
|
85160
85150-78040 Link Assy, Windshield Wiper[07.2014 -] AGZ1#,AYZ1# |
85150-78040 |
US $75.71 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2014 -] AGZ1#,AYZ1# |
90182-10006 |
from US $1.07 |
||
|
85211B
|
85211B
85211-78030 Arm, Front Wiper, Rh[07.2014 - 12.2016] AGZ1#,AYZ1# |
85211-78030 |
US $51.25 |
||
| replacement | |||||
|
85211B
|
85211B
85211-78031 Arm, Front Wiper, Rh[07.2014 - 12.2016] AGZ1#,AYZ1# |
85211-78031 |
US $46.59 |
||
|
85211B
|
85211B
85211-78031 Arm, Front Wiper, Rh[01.2017 -] AGZ1#,AYZ1# |
85211-78031 |
US $46.59 |
||
|
85212A
|
85212A
85212-78020-79
Blade, Fr Wiper, Rh
[07.2014 - 04.2015] AGZ1#,AYZ1# |
85212-78020-79 |
— | ||
|
85212A
|
85212A
85212-78021-79
Blade, Fr Wiper, Rh
[05.2015 - 01.2016] AGZ1#,AYZ1# |
85212-78021-79 |
— | ||
|
85212A
|
85212A
85212-78022-79 Blade, Fr Wiper, Rh[02.2016 - 11.2016] AGZ1#,AYZ1# |
85212-78022-79 |
US $62.46 |
||
|
85212A
|
85212A
85212-78040-79 Blade, Fr Wiper, Rh[11.2016 - 12.2016] AGZ1#,AYZ1# |
85212-78040-79 |
US $62.46 |
||
|
85212A
|
85212A
85212-78041-79 Blade, Fr Wiper, Rh[01.2017 -] AGZ1#,AYZ1# |
85212-78041-79 |
US $72.07 |
||
|
85214A
|
85214A
85214-10140 Rubber, Wiper, Rh[11.2016 -] AGZ1#,AYZ1# |
85214-10140 |
US $16.13 |
||
|
85214A
|
85214A
85214-78020 Rubber, Wiper, Rh[07.2014 - 11.2016] AGZ1#,AYZ1# |
85214-78020 |
from US $13.10 |
||
|
85214B
|
85214B
85214-10130 Rubber, Wiper, Lh[11.2016 -] AGZ1#,AYZ1# |
85214-10130 |
US $14.34 |
||
|
85214B
|
85214B
85214-78010 Rubber, Wiper, Lh[07.2014 - 11.2016] AGZ1#,AYZ1# |
85214-78010 |
US $8.83 |
||
|
85221B
|
85221B
85221-78030 Arm, Front Wiper, Lh[07.2014 -] AGZ1#,AYZ1# |
85221-78030 |
US $57.80 |
||
|
85222A
|
85222A
85222-78020-79 Blade, Fr Wiper, Lh[07.2014 - 01.2016] AGZ1#,AYZ1# |
85222-78020-79 |
US $26.35 |
||
|
85222A
|
85222A
85222-78021-79 Blade, Fr Wiper, Lh[02.2016 - 11.2016] AGZ1#,AYZ1# |
85222-78021-79 |
US $26.35 |
||
|
85222A
|
85222A
85222-78040-79 Blade, Fr Wiper, Lh[11.2016 -] AGZ1#,AYZ1# |
85222-78040-79 |
US $30.41 |
||
|
85291A
|
85291A
85291-78010-79 Blade, Front Wiper, Winter, Rh[07.2014 - 02.2015] AGZ1#,AYZ1# ウィンタブレード（ＤＯＰ） |
85291-78010-79 |
US $87.36 |
||
|
85291A
|
85291A
85291-78011-79 Blade, Front Wiper, Winter, Rh[03.2015 -] AGZ1#,AYZ1# ウィンタブレード（ＤＯＰ） |
85291-78011-79 |
US $98.40 |
||
|
85291B
|
85291B
85291-78020-79 Blade, Front Wiper, Winter, Lh[07.2014 - 02.2015] AGZ1#,AYZ1# ウィンタブレード（ＤＯＰ） |
85291-78020-79 |
US $52.42 |
||
|
85291B
|
85291B
85291-78021-79 Blade, Front Wiper, Winter, Lh[03.2015 -] AGZ1#,AYZ1# ウィンタブレード（ＤＯＰ） |
85291-78021-79 |
US $60.48 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[07.2014 -] AGZ1#,AYZ1# |
85292-13010 |
from US $4.11 |
||
|
89941
|
89941
89941-52010 Sensor, Rain[07.2014 -] AGZ1#,AYZ1# |
89941-52010 |
from US $169.61 |
||
|
89943
|
89943
89943-78010 Cover, Rain Sensor[07.2014 -] AGZ1#,AYZ1# |
89943-78010 |
US $21.45 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[07.2014 -] AGZ1#,AYZ1# |
89944-42010 |
from US $13.32 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
||
