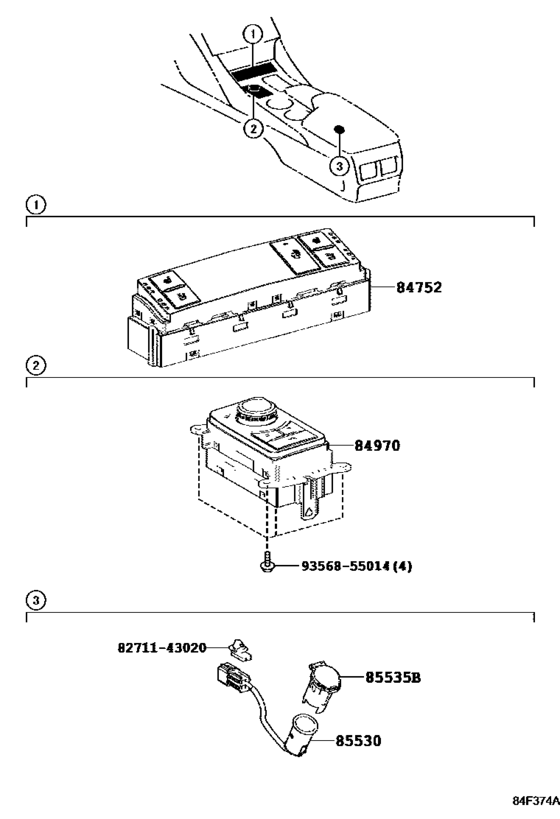

Switch & Relay & Computer ([09.2014 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2 (1409- )) Diagram Toyota LEXUS RC
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- Model
- RC300 Hybrid
- From
- 09.2014
- Vehicle Model
- RC300 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84752
|
84752
84752-24060 Switch, Refreshing Seat[09.2014 - 10.2015] AVC10,GSC10 |
84752-24060 |
US $144.14 |
||
|
84752
|
84752
84752-24070 Switch, Refreshing Seat[09.2014 - 10.2015] AVC10,GSC10 “Ｆ ＳＰＯＲＴ”; AVC10,GSC10 “ｖｅｒｓｉｏｎ Ｌ” |
84752-24070 |
US $157.25 |
||
|
84970
|
84970
84970-24050 Switch Assy, Combination[09.2014 - 10.2015] AVC10 |
84970-24050 |
US $165.98 |
||
|
84970
|
84970
84970-24060 Switch Assy, Combination[09.2014 - 10.2015] AVC10 ＡＶＳ−有り |
84970-24060 |
US $165.98 |
||
|
85530
|
85530
85530-24010 Socket Assy, Power Outlet, No.1[09.2014 - 10.2015] AVC10,GSC10 |
85530-24010 |
US $23.59 |
||
|
85535B
|
85535B
85535-30020 Cover, Power Outlet Socket, No.1[09.2014 - 10.2015] AVC10,GSC10 |
85535-30020 |
from US $6.08 |
||
|
8271143020
|
8271143020
82711-43020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-43020 |
US $8.48 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
