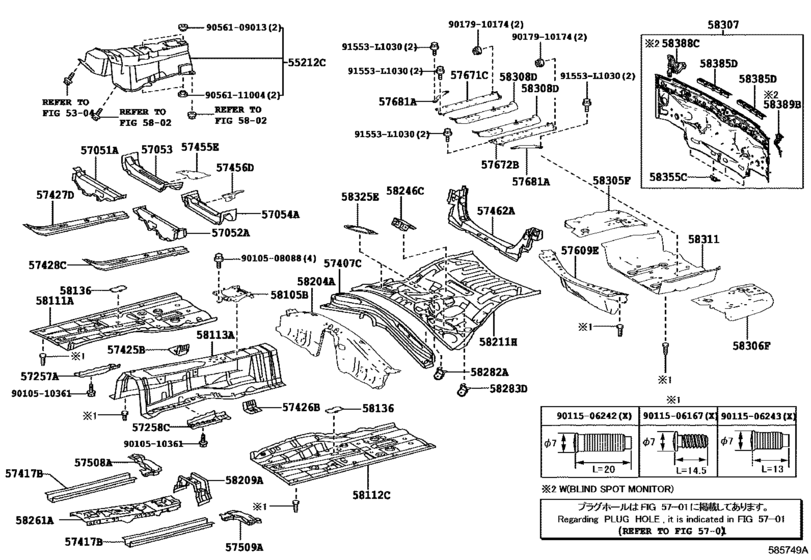

Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )AVC10) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RC300 Hybrid
- From
- 10.2015
- Vehicle Model
- RC300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55212C
|
55212C
55212-30211 Silencer, Front Panel, LowerFRONT PANEL, LOWER [10.2015 -] AVC10..GEN |
55212-30211 |
US $106.29 |
||
|
57051A
|
57051A
57051-53030 Member Sub-Assy, Front Floor Cross, RhFRONT FLOOR CROSS, RH [10.2015 -] ASC10,AVC10,GSC10 |
57051-53030 |
US $81.54 |
||
|
57052A
|
57052A
57052-53030 Member Sub-Assy, Front Floor Cross, LhFRONT FLOOR CROSS, LH [10.2015 -] ASC10,AVC10,GSC10 |
57052-53030 |
US $81.54 |
||
|
57053
|
57053
57053-30080 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[10.2015 -] ASC10,AVC10,GSC10 |
57053-30080 |
US $51.83 |
||
|
57054A
|
57054A
57054-30080 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[10.2015 -] ASC10,AVC10,GSC10 |
57054-30080 |
US $51.83 |
||
|
57257A
|
57257A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[10.2015 -] ASC10,AVC10,GSC10 |
57257-30042 |
US $40.48 |
||
|
57258C
|
57258C
57258-30091 Bracket, Engine Rear Mounting Member, Lh[10.2015 -] ASC10,AVC10,GSC10 |
57258-30091 |
US $38.15 |
||
|
57407C
|
57407C
57407-53010 Member Sub-Assy, Center Floor Cross, No.1[10.2015 -] ASC10,AVC10,GSC10 |
57407-53010 |
US $81.54 |
||
|
57417B
|
57417B
57603-24010 Reinforcement, Front Floor Under[10.2015 -] ASC10,AVC10,GSC10 |
57603-24010 |
US $68.43 |
||
|
57425B
|
57425B
57425-30030 Reinforcement, Front Floor, No.2 Rh[10.2015 -] ASC10,AVC10,GSC10 |
57425-30030 |
US $13.40 |
||
|
57426B
|
57426B
57426-30030 Reinforcement, Front Floor, No.2 Lh[10.2015 -] ASC10,AVC10,GSC10 |
57426-30030 |
US $13.40 |
||
|
57427D
|
57427D
57427-30041 Reinforcement, Front Floor, No.3 Rh[10.2015 -] ASC10,AVC10,GSC10 |
57427-30041 |
US $82.99 |
||
|
57428C
|
57428C
57427-30041 Reinforcement, Front Floor, No.3 Rh[10.2015 -] ASC10,AVC10,GSC10 |
57427-30041 |
US $82.99 |
||
|
57455E
|
57455E
57455-30060 Plate, Front Floor Cross Member, No.3 Rh[10.2015 -] ASC10,AVC10,GSC10 |
57455-30060 |
US $6.55 |
||
|
57456D
|
57456D
57456-30040 Plate, Front Floor Cross Member, No.3 Lh[10.2015 -] ASC10,AVC10,GSC10 |
57456-30040 |
US $6.55 |
||
|
57462A
|
57462A
57405-53020 Member, Center Floor Cross, No.2[10.2015 -] ASC10,AVC10,GSC10 |
57405-53020 |
US $165.98 |
||
|
57508A
|
57508A
57508-30031 Reinforcement Sub-Assy, Front Floor, Rh[10.2015 -] ASC10,AVC10,GSC10 |
57508-30031 |
US $33.20 |
||
|
57509A
|
57509A
57509-30031 Reinforcement Sub-Assy, Front Floor, Lh[10.2015 -] ASC10,AVC10,GSC10 |
57509-30031 |
US $33.20 |
||
|
57609E
|
57609E
57609-53040 Reinforce Sub-Assy, Side Member To Floor, Lh[10.2015 -] AVC10..GEN |
57609-53040 |
US $103.38 |
||
|
57671C
|
57671C
58035-53010 Brace, Rear Floor No.1 Crossmember, Rh[10.2015 -] AVC10..GEN |
58035-53010 |
US $87.36 |
||
|
57672B
|
57672B
58036-53010 Brace, Rear Floor No.1 Crossmember, Lh[10.2015 -] AVC10..GEN |
58036-53010 |
US $87.36 |
||
|
57681A
|
57681A
57681-53010 Brace, Rear Floor No.2 Crossmember, Outer[10.2015 -] AVC10..GEN |
57681-53010 |
US $32.98 |
||
|
58105B
|
58105B
58105-53020 Panel Sub-Assy, Front Floor Rear Upper Sub[10.2015 -] ASC10,AVC10,GSC10 |
58105-53020 |
US $46.74 |
||
|
58111A
|
58111A
58111-24060 Pan, Front Floor, Rh[10.2015 -] ASC10,AVC10,GSC10 |
58111-24060 |
US $198.02 |
||
|
58112C
|
58112C
58112-24040 Panel, Front Floor, Lh[10.2015 -] ASC10,AVC10,GSC10 |
58112-24040 |
US $198.02 |
||
|
58113A
|
58113A
58113-53030 Panel, Front Floor, Center[10.2015 -] ASC10,AVC10,GSC10 |
58113-53030 |
US $298.48 |
||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[10.2015 -] ASC10,AVC10,GSC10 |
58136-51010 |
US $2.04 |
||
|
58204A
|
58204A
58204-24010 Reinforcement Sub-Assy, Center Floor Panel, Lh[10.2015 -] ASC10,AVC10,GSC10 |
58204-24010 |
US $334.88 |
||
|
58209A
|
58209A
58209-30050 Reinforcement Sub-Assy, Drive Shaft Center Support[10.2015 -] ASC10,AVC10,GSC10 |
58209-30050 |
US $36.98 |
||
|
58211H
|
58211H
58211-30410 Pan, Center Floor[10.2015 -] AVC10 |
58211-30410 |
US $346.53 |
||
|
58246C
|
58246C
58246-30020 Bracket, Rear Seat Hinge, Center No.2[10.2015 -] ASC10,AVC10,GSC10 |
58246-30020 |
US $14.56 |
||
|
58261A
|
58261A
58261-30231 Cover, Transmission[10.2015 -] ASC10,AVC10,GSC10 |
58261-30231 |
US $66.98 |
||
|
58282A
|
58282A
58282-30040 Base, Belt Anchor To Floor Pan, No.3 Rh[10.2015 -] ASC10,AVC10,GSC10 |
58282-30040 |
US $6.70 |
||
|
58283D
|
58283D
58283-30030 Base, Belt Anchor To Floor Pan, No.3 Lh[10.2015 -] ASC10,AVC10,GSC10 |
58283-30030 |
US $6.70 |
||
|
58305F
|
58305F
58305-53010 Panel Sub-Assy, Rear Floor Side, Rh[10.2015 -] ASC10,AVC10,GSC10 |
58305-53010 |
US $57.37 |
||
|
58306F
|
58306F
58306-53020 Panel Sub-Assy, Rear Floor Side, Lh[10.2015 -] AVC10; GSC10 STEERING-ELECTRIC POWER STEERING(VGRS) |
58306-53020 |
US $63.63 |
||
|
58307
|
58307
58302-24020 Panel Sub-Assy, Body Lower Back[10.2015 -] AVC10..GEN BLIND SPOT MONITOR-WITH |
58302-24020 |
US $251.89 |
||
|
58307
|
58307
58307-24100 Panel Sub-Assy, Body Lower Back[10.2015 -] AVC10 |
58307-24100 |
US $235.87 |
||
|
58308D
|
58308D
58308-53010 Bracket Sub-Assy, Rear Floor Crossmember[10.2015 -] AVC10 |
58308-53010 |
US $55.33 |
||
|
58311
|
58311
58311-53050 Pan, Rear Floor[10.2015 -] AVC10 |
58311-53050 |
US $195.10 |
||
|
58325E
|
58325E
58325-30030 Cover, Rear Floor Service Hole[10.2015 -] ASC10,AVC10,GSC10 |
58325-30030 |
US $19.51 |
||
|
58355C
|
58355C
58355-53030 Bracket, Rear Bumper Arm[10.2015 -] ASC10,AVC10,GSC10 |
58355-53030 |
US $2.62 |
||
|
58385D
|
58385D
58385-30080 Bracket, Rear Bumper Cover[10.2015 -] ASC10,AVC10,GSC10 |
58385-30080 |
US $11.07 |
||
|
58388C
|
58388C
58388-24010 Plate, Body Lower Back Reinforcement, Rh[10.2015 -] AVC10..GEN;ASC10,GSC10 BLIND SPOT MONITOR-WITH |
58388-24010 |
US $11.07 |
||
|
58389B
|
58389B
58389-24010 Plate, Body Lower Back Reinforcement, Lh[10.2015 -] AVC10..GEN;ASC10,GSC10 BLIND SPOT MONITOR-WITH |
58389-24010 |
US $11.07 |
||
|
91553L1030
|
91553L1030
91553-L1030 New Genuine Part |
91553-L1030 |
US $1.92 |
||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.76 |
||
|
9010510361
|
9010510361
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $1.01 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9011506242
|
9011506242
90115-06242 New Genuine Part |
90115-06242 |
US $0.96 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9017910174
|
9017910174
90179-10174 Nut(For Front Pneumatic Cylinder) |
90179-10174 |
US $1.44 |
||
|
9056109013
|
9056109013
90561-09013 SPACER |
90561-09013 |
US $1.02 |
||
|
9056111004
|
9056111004
90561-11004 SPACER |
90561-11004 |
US $1.28 |
