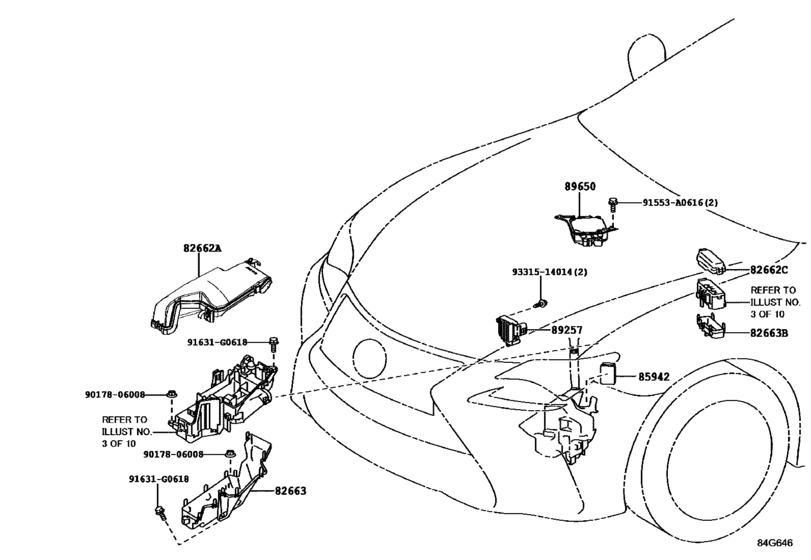

Switch & Relay & Computer ([10.2015 - ] ENGINE ROOM (1510- )AVC10..GEN) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RC300 Hybrid
- From
- 10.2015
- Vehicle Model
- RC300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82662A
|
82662A
82662-24260 Cover, Relay Block, Upper, No.1[10.2015 -] AVC10..GEN |
82662-24260 |
US $46.01 |
||
|
82662C
|
82662C
82662-30B70 Cover, Relay Block, Upper, No.3[10.2015 -] AVC10..GEN |
82662-30B70 |
US $7.86 |
||
|
82663
|
82663
82663-30350 Cover, Relay Block, Lower[10.2015 -] AVC10..GEN |
82663-30350 |
US $55.02 |
||
|
82663B
|
82663B
82663-30340 Cover, Relay Block, Lower, No.2[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82663-30340 |
US $8.30 |
||
|
85942
|
85942
85942-53020 Relay, Headlamp Cleaner Control[10.2015 -] ASC10,AVC10,GSC10..ARL,CHI,GEN; ASC10,GSC10..GCC HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER) |
85942-53020 |
from US $66.73 |
||
|
89257
|
89257
89257-30110 Computer, Cooling Fan[10.2015 -] AVC10;GSC10..GCC; GSC10..ARL INDONESIA SPEC; GSC10..ARL MALAYSIA SPEC; GSC10..GEN PHILIPPINE SPEC |
89257-30110 |
US $195.84 |
||
|
89650
|
89650
89650-24260
Computer Assy, Power Steering
[10.2015 - 11.2017] AVC10..GEN |
89650-24260 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
91631G0618
|
91631G0618
91631-G0618 New Genuine Part |
91631-G0618 |
US $0.44 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
from US $0.72 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
