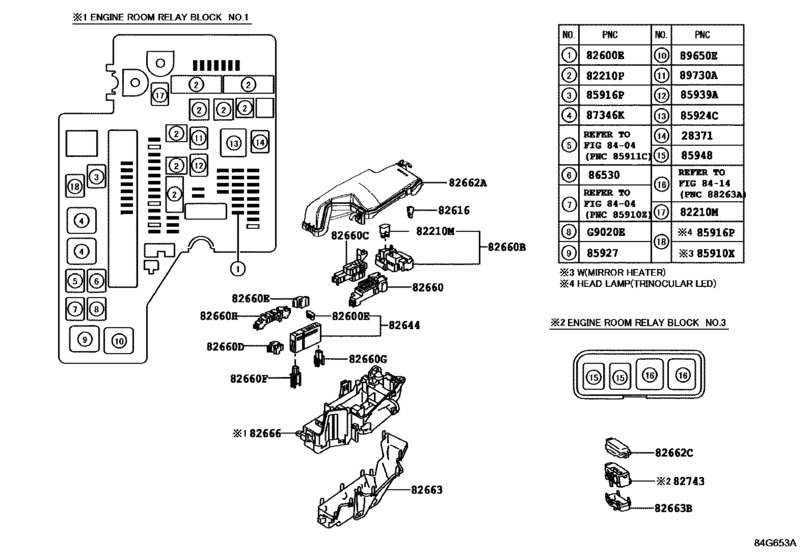

Switch & Relay & Computer ([10.2015 - ] ENGINE ROOM RELAY BLOCK (1510- )AVC10) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RC300 Hybrid
- From
- 10.2015
- Vehicle Model
- RC300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02027 Relay[10.2015 -] 2ARFSE..AVC10..GEN;8ARFTS,2GRFSE..ASC10,GSC10 |
90987-02027 |
from US $44.54 |
||
|
82210M
|
82210M
90982-08274 Fusible Link[10.2015 -] AVC10..GEN 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 50A-30A-50A,FEMALE |
90982-08302 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 80A,TERMINAL:FEMALE |
90982-08305 |
from US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82616-58010 |
from US $2.40 |
||
|
82644
|
82644
82644-53010 Computer, Semiconductor Power Integration[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82644-53010 |
from US $161.62 |
||
|
82660
|
82660
82660-30C30 Block Assy, Relay, Engine Room[10.2015 -] AVC10..GEN |
82660-30C30 |
US $33.34 |
||
|
82660B
|
82660B
82660-30B40 Block Assy, Relay[10.2015 -] AVC10..GEN |
82660-30B40 |
US $67.27 |
||
|
82660C
|
82660C
82660-30C40 Block Assy, Relay[10.2015 -] AVC10..GEN |
82660-30C40 |
US $54.45 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82660-0H070 |
US $6.99 |
||
|
82660E
|
82660E
82660-0C110 Block Assy, RelayRELAY [10.2015 -] AVC10..GEN;ASC10,GSC10 |
82660-0C110 |
from US $7.13 |
||
|
82660F
|
82660F
82660-30C00 Block Assy, Relay[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82660-30C00 |
US $4.66 |
||
|
82660G
|
82660G
82660-30D50 Block Assy, Relay[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82660-30D50 |
US $4.66 |
||
|
82660H
|
82660H
82660-30C50 Block Assy, Relay[10.2015 -] AVC10..GEN |
82660-30C50 |
US $28.97 |
||
|
82662A
|
82662A
82662-24260 Cover, Relay Block, Upper, No.1[10.2015 -] AVC10..GEN |
82662-24260 |
US $46.01 |
||
|
82662C
|
82662C
82662-30B70 Cover, Relay Block, Upper, No.3[10.2015 -] AVC10..GEN |
82662-30B70 |
US $7.86 |
||
|
82663
|
82663
82663-30350 Cover, Relay Block, Lower[10.2015 -] AVC10..GEN |
82663-30350 |
US $55.02 |
||
|
82663B
|
82663B
82663-30340 Cover, Relay Block, Lower, No.2[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82663-30340 |
US $8.30 |
||
|
82666
|
82666
82666-30C20 Holder, Connector[10.2015 -] AVC10..GEN |
82666-30C20 |
US $96.20 |
||
|
82743
|
82743
82743-30090 Block, Engine Room Relay, No.2[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82743-30090 |
US $19.80 |
||
|
85910X
|
85910X
90987-02027 Relay[10.2015 -] AVC10..GEN;ASC10,GSC10..ARL,GEN; AVC10..GEN;ASC10,GSC10..ARL,GEN "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE); ASC10,GSC10..ARL,GEN "VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE) |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02027 Relay[10.2015 - 12.2017] AVC10..GEN "F SPORT"&LANE KEEPING SYSTEM-WITH |
90987-02027 |
from US $44.54 |
||
|
85924C
|
85924C
90987-02025 Relay[10.2015 -] AVC10..GEN |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[10.2015 -] AVC10,GSC10 |
90987-02025 |
from US $44.54 |
||
|
85948
|
85948
90987-04004 Relay, Starter Cut[10.2015 -] ASC10,AVC10,GSC10 |
90987-04004 |
US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[10.2015 -] ASC10,AVC10,GSC10 |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02025 Relay[10.2015 -] AVC10 COLD AREA SPEC(WITH(PTC HEATER); ASC10..CHI COLD AREA SPEC |
90987-02025 |
from US $44.54 |
||
|
89650E
|
89650E
90987-02025 Relay[10.2015 -] ASC10,AVC10,GSC10 |
90987-02025 |
from US $44.54 |
||
|
89730A
|
89730A
90987-02027 Relay[10.2015 -] ASC10,AVC10,GSC10 |
90987-02027 |
from US $44.54 |
||
|
G9020E
|
G9020E
90987-02027 Relay[10.2015 -] AVC10..GEN |
90987-02027 |
from US $44.54 |
