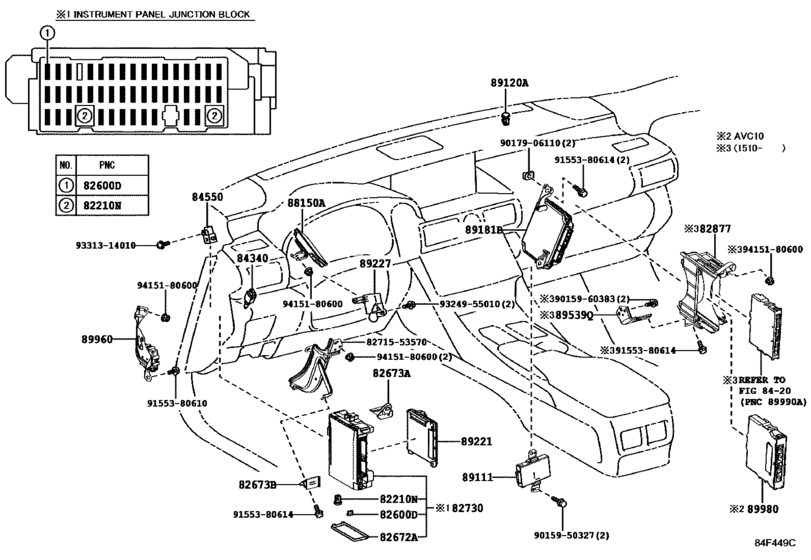

Switch & Relay & Computer ([09.2014 - ] COWL (1409- )LHD) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RC300 Hybrid
- From
- 10.2015
- Vehicle Model
- RC300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[10.2015 -] AVC10..GEN;ASC10,GSC10 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[10.2015 -] AVC10..GEN;ASC10,GSC10 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-53170 Cover, Junction Block[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82672-53170 |
US $3.49 |
||
|
82673A
|
82673A
82673-53010
Bracket, Junction Block
[10.2015 -] ASC10,AVC10,GSC10..LHD |
82673-53010 |
— | ||
|
82673B
|
82673B
82817-30W60 Bracket, Junction Block[10.2015 -] AVC10..GEN;ASC10,GSC10 |
82817-30W60 |
US $4.37 |
||
|
82730
|
82730
82730-53J30 Block Assy, Instrument Panel Junction[10.2015 - 02.2016] ASC10,AVC10,GSC10 |
82730-53J30 |
US $195.10 |
||
|
82730
|
82730
82730-53J31 Block Assy, Instrument Panel Junction[03.2016 -] AVC10..GEN;ASC10,GSC10 |
82730-53J31 |
from US $183.98 |
||
|
82877
|
82877
82877-53010
Box, Computer Integration, Rh
[10.2015 -] ASC10..CHI;AVC10..GEN; ASC10..GEN TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
82877-53010 |
— | ||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[10.2015 -] ASC10,AVC10,GSC10 |
84340-30130 |
from US $42.10 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[10.2015 -] ASC10,AVC10,GSC10 |
84550-16060 |
from US $17.48 |
||
|
89111
|
89111
89100-30221 Computer, Network Gateway[10.2015 - 12.2017] ASC10..ARL HONG KONG SPEC&"VERSION L"&CLEARANCE & BACK SONAR-WITH; ASC10..ARL HONG KONG SPEC&"VERSION L"&CLEARANCE & BACK SONAR-WITH&LANE KEEPING SYSTEM-WITH; ASC10..ARL HONG KONG SPEC&"VERSION L"&LANE KEEPING SYSTEM-WITH; ASC10,GSC10. |
89100-30221 |
US $174.72 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[10.2015 -] ASC10,AVC10,GSC10 |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-24J80
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC10..GEN TAIWAN SPEC&"F SPORT"&LANE KEEPING SYSTEM-WITH; AVC10..GEN "F SPORT"&LANE KEEPING SYSTEM-WITH |
89220-24J80 |
— | ||
|
89221
|
89221
89220-24J90
Computer, Multiplex Network Body
[10.2015 - 09.2016] AVC10..GEN; ASC10..GEN TAIWAN SPEC |
89220-24J90 |
— | ||
|
89221
|
89221
89220-24T90
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC10..GEN TAIWAN SPEC&"F SPORT"&LANE KEEPING SYSTEM-WITH; AVC10 "F SPORT"&LANE KEEPING SYSTEM-WITH |
89220-24T90 |
— | ||
|
89221
|
89221
89220-24U00
Computer, Multiplex Network Body
[09.2016 -] AVC10; ASC10..GEN TAIWAN SPEC |
89220-24U00 |
— | ||
|
89227
|
89227
89227-53010 Computer, Multiplex Tilt & Telescopic[10.2015 - 12.2017] ASC10..ARL;AVC10..GEN STEERING COLUMN-POWER |
89227-53010 |
US $235.87 |
||
|
89539Q
|
89539Q
89955-53010
Bracket, Computer
[10.2015 -] ASC10..CHI;AVC10..GEN; ASC10..GEN TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
89955-53010 |
— | ||
|
89960
|
89960
89960-24120 Computer Assy, Headlamp Leveling[10.2015 -] ASC10,AVC10,GSC10..ARL,GEN; ASC10,AVC10,GSC10..ARL,GEN "F SPORT"; AVC10..GEN "F SPORT"&LANE KEEPING SYSTEM-WITH; AVC10..ARL;ASC10,GSC10..ARL,GEN "VERSION L" |
89960-24120 |
US $270.82 |
||
|
89980
|
89980
89981-24020
Computer Assy, Hybrid Vehicle Control
[10.2015 - 09.2016] AVC10..GEN |
89981-24020 |
— | ||
|
89980
|
89980
89981-24040
Computer Assy, Hybrid Vehicle Control
[09.2016 - 12.2017] AVC10 |
89981-24040 |
— | ||
|
8271553570
|
8271553570
82715-53570
Bracket,wiring Harness Clamp
|
82715-53570 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9324955010
|
9324955010
93249-55010 New Genuine Part |
93249-55010 |
US $0.73 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
