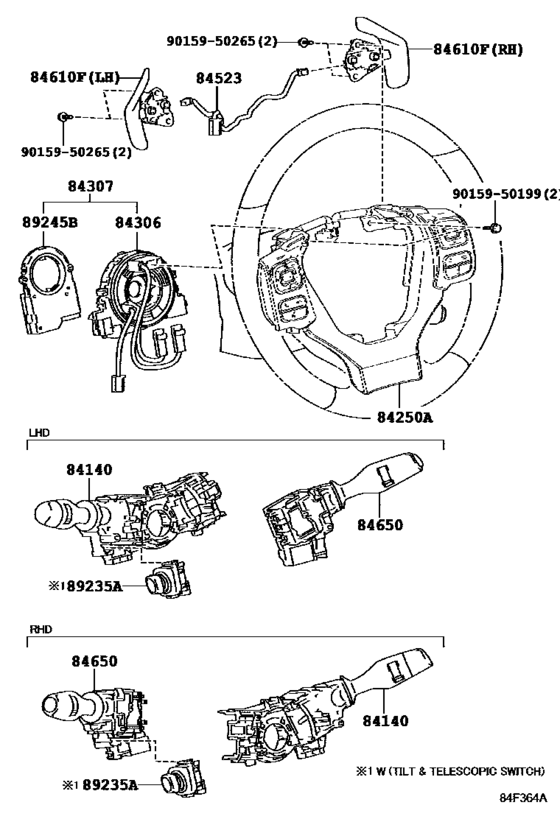

Switch & Relay & Computer ([09.2014 - ] STEERING (1409- )) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RC300 Hybrid
- From
- 10.2015
- Vehicle Model
- RC300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30350
Switch Assy, Headlamp Dimmer
[10.2015 -] ASC10,AVC10,GSC10..CHI,GEN FRONT FOG LAMP-WITH |
84140-30350 |
— | ||
|
84140
|
84140
84140-30410
Switch Assy, Headlamp Dimmer
[10.2015 -] ASC10,AVC10,GSC10..CHI,GEN |
84140-30410 |
— | ||
|
84250A
|
84250A
84250-24010 Switch Assy, Steering Pad[10.2015 - 12.2017] ASC10,AVC10,GSC10; GSC10..ARL INDONESIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH; GSC10..ARL MALAYSIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH |
84250-24010 |
US $211.12 |
||
|
84250A
|
84250A
84250-24040 Switch Assy, Steering Pad[10.2015 - 12.2017] GSC10..ARL SOUTH AFRICA SPEC&"VERSION L"&STEERING COLUMN-POWER&LANE KEEPING SYSTEM-WITH; GSC10..GEN TAIWAN SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH&LANE KEEPING SYSTEM-WITH; ASC10..GEN TAIWAN SPEC&"F SPORT"&LANE KEEPING SYSTEM-WIT |
84250-24040 |
US $218.40 |
||
|
84306
|
84306
84308-53010 Cable Sub-Assy, Spiral[10.2015 -] ASC10,AVC10,GSC10 |
84308-53010 |
US $211.46 |
||
| replacement | |||||
|
84306
|
84306
84308-53011 NR CABLE SET SPIRAL[10.2015 -] ASC10,AVC10,GSC10 |
84308-53011 |
from US $171.36 |
||
|
84307
|
84307
84307-30130 Cable Sub-Assy, Spiral W/sensor[10.2015 -] ASC10,AVC10,GSC10; GSC10..ARL INDONESIA SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING WHEEL-LEATHER(DIMPLED), W( PADDLE SWITCH)&AVS-WITH; GSC10..ARL MALAYSIA SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING WHEEL-LEATHER(DIMPLED), W(P ADDLE SWITC |
84307-30130 |
US $342.16 |
||
|
84523
|
84523
84523-76010 Wire, Switch No.1[10.2015 -] ASC10,AVC10,GSC10 |
84523-76010 |
US $16.77 |
||
|
84610F
|
84610F
84610-53100 Switch Assy, Transmission Shift[10.2015 -] ASC10,AVC10,GSC10 LH |
84610-53100 |
US $60.63 |
||
|
84610F
|
84610F
84610-53110 Switch Assy, Transmission Shift[10.2015 -] ASC10,AVC10,GSC10 RH |
84610-53110 |
US $60.63 |
||
|
84650
|
84650
84652-30641
Switch Assy, Windshield Wiper
[10.2015 -] ASC10,AVC10,GSC10..LHD |
84652-30641 |
— | ||
|
84650
|
84650
84652-30650 Switch Assy, Windshield Wiper[10.2015 - 12.2017] ASC10,GSC10..GEN TAIWAN SPEC&"F SPORT"&LANE KEEPING SYSTEM-WITH; AVC10..GEN;ASC10,GSC10..CHI,GCC "F SPORT"&LANE KEEPING SYSTEM-WITH; GSC10..LHD;ASC10..CHI,GCC "VERSION L"&LANE KEEPING SYSTEM-WITH |
84652-30650 |
US $360.44 |
||
|
89235A
|
89235A
89235-33010 Switch, Tilt & Telescopic[10.2015 -] AVC10..GEN;ASC10,GSC10 STEERING COLUMN-POWER |
89235-33010 |
US $35.26 |
||
|
89245B
|
89245B
89245-39045 Sensor, Steering[10.2015 - 10.2016] ASC10,AVC10,GSC10; GSC10..ARL INDONESIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH; GSC10..ARL MALAYSIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH |
89245-39045 |
US $216.94 |
||
| replacement | |||||
|
89245B
|
89245B
8924B-53010 Sensor, Steering[10.2015 - 10.2016] ASC10,AVC10,GSC10; GSC10..ARL INDONESIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH; GSC10..ARL MALAYSIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH |
8924B-53010 |
US $221.46 |
||
|
89245B
|
89245B
8924B-53010 Sensor, Steering[10.2016 -] ASC10,AVC10,GSC10; GSC10..ARL INDONESIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH; GSC10..ARL MALAYSIA SPEC&"F SPORT"&STEERING COLUMN-POWER&AVS-WITH |
8924B-53010 |
US $221.46 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.12 |
||
