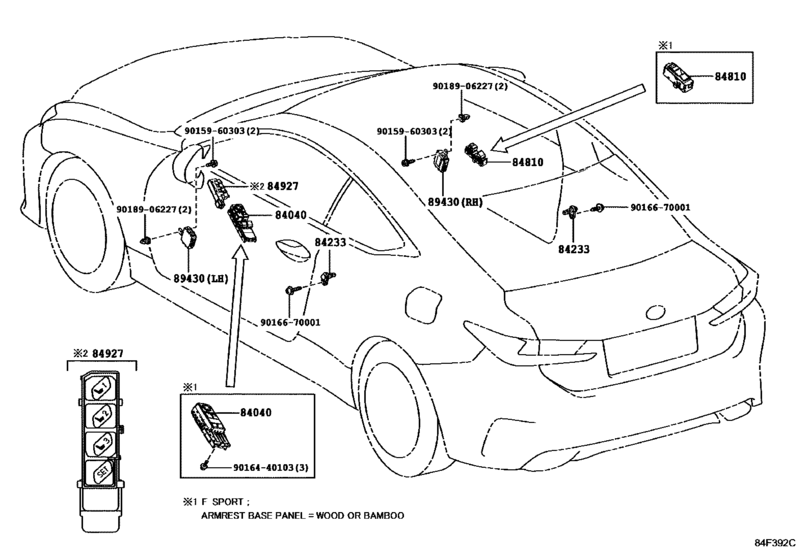

Switch & Relay & Computer ([09.2014 - ] DOOR & ROOF (1409- )LHD) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AVC10
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RC300 Hybrid
- From
- 10.2015
- Vehicle Model
- RC300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84040
|
84040
84040-24120
Master Switch Assy,multiplex Network
[10.2015 -] ASC10,AVC10,GSC10..GCC,GEN |
84040-24120 |
— | ||
|
84040
|
84040
840A0-24020
Master Switch Assy,multiplex Network
[10.2015 -] ASC10,GSC10..GEN TAIWAN SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SE AT-WITH(SEAT MEMORY = DRIVER SIDE); GSC10..GEN PHILIPPINE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWE R SEAT-WITH(S |
840A0-24020 |
— | ||
|
84233
|
84233
84231-30380 Switch, Courtesy Lamp[10.2015 -] ASC10,AVC10,GSC10 |
84231-30380 |
US $10.56 |
||
|
84810
|
84810
84810-30181 Switch Assy, Power Window Regulator[10.2015 -] ASC10,AVC10,GSC10 |
84810-30181 |
US $99.01 |
||
|
84810
|
84810
84810-48011 Switch Assy, Power Window Regulator[10.2015 -] ASC10,GSC10..GEN TAIWAN SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SE AT-WITH(SEAT MEMORY = DRIVER SIDE); GSC10..GEN PHILIPPINE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWE R SEAT-WITH(S |
84810-48011 |
US $45.14 |
||
|
84927
|
84927
84927-24050
Switch, Seat Memory
[10.2015 -] ASC10,AVC10,GSC10..LHD "F SPORT"; ASC10,GSC10..LHD "VERSION L" |
84927-24050 |
— | ||
|
89430
|
89430
89430-24030 Computer Assy, Outer Mirror Control[10.2015 - 09.2016] ASC10..CHI RH; ASC10,AVC10,GSC10..ARL,GCC,GEN "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RH; AVC10..ARL;ASC10,GSC10..ARL,GCC,GEN "VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RH |
89430-24030 |
US $251.89 |
||
|
89430
|
89430
89430-24040 Computer Assy, Outer Mirror Control[10.2015 - 09.2016] ASC10..CHI LH; ASC10,AVC10,GSC10..ARL,GCC,GEN "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),LH; AVC10..ARL;ASC10,GSC10..ARL,GCC,GEN "VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),LH |
89430-24040 |
US $251.89 |
||
|
89430
|
89430
89430-24050 Computer Assy, Outer Mirror Control[09.2016 -] ASC10..CHI RH; ASC10,AVC10,GSC10..ARL,GCC,GEN "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RH; ASC10,GSC10..ARL,GCC,GEN "VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RH |
89430-24050 |
US $129.58 |
||
|
89430
|
89430
89430-24060 Computer Assy, Outer Mirror Control[09.2016 -] ASC10..CHI LH; ASC10,AVC10,GSC10..ARL,GCC,GEN "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),LH; ASC10,GSC10..ARL,GCC,GEN "VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),LH |
89430-24060 |
US $129.58 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
