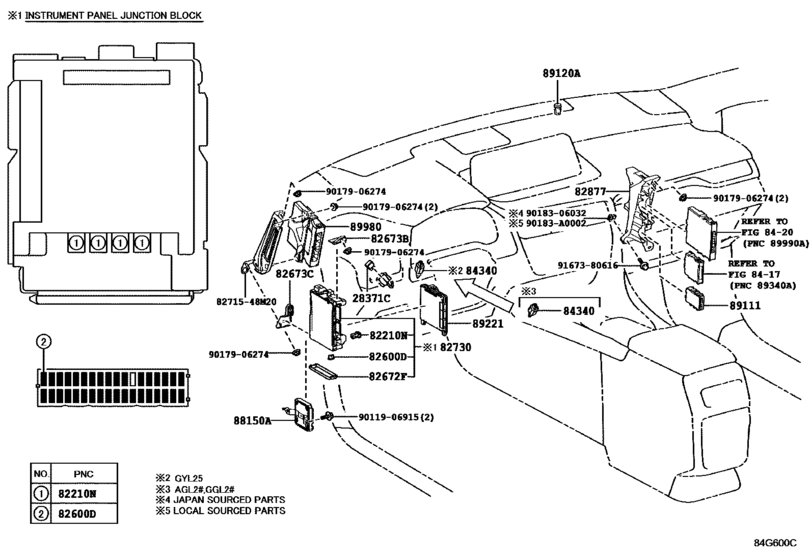

Switch & Relay & Computer ([09.2015 - ] COWL (1509- )LHD) Diagram Toyota LEXUS RX
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGL20
- grade
- STD
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- RX200T
- From
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX200T
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90987-02027 Relay[09.2015 -] 8ARFTS,2GR#..AGL2#,GGL2#,GYL25 |
90987-02027 |
from US $33.62 |
||
|
82210N
|
82210N
90982-08306 Fusible Link[09.2015 -] AGL2#,GGL2#,GYL25 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[09.2015 -] AGL2#,GGL2#,GYL25 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[09.2015 -] AGL2#,GGL2#,GYL25 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[09.2015 -] AGL2#,GGL2#,GYL25 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[09.2015 -] AGL2#,GGL2#,GYL25 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[09.2015 -] AGL2#,GGL2#,GYL25 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[09.2015 -] AGL2#,GGL2#,GYL25 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82672F
|
82672F
82672-48410 Cover, Junction Block[09.2015 -] AGL2#,GGL2#,GYL25 |
82672-48410 |
US $3.49 |
||
|
82673B
|
82673B
82673-48110
Bracket, Junction Block
[09.2015 -] AGL2#,GGL2#,GYL25..LHD |
82673-48110 |
— | ||
|
82673C
|
82673C
82673-48120
Bracket, Junction Block
[09.2015 -] AGL2#,GGL2#,GYL25..LHD |
82673-48120 |
— | ||
|
82730
|
82730
82730-48Z50 Block Assy, Instrument Panel Junction[09.2015 -] GYL25;AGL2#,GGL2#..GCC,GEN |
82730-48Z50 |
from US $182.41 |
||
|
82877
|
82877
82877-48030
Box, Computer Integration, Rh
[09.2015 -] AGL2#,GGL2#,GYL25..LHD |
82877-48030 |
— | ||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[09.2015 -] AGL2#,GGL2#,GYL25 |
84340-30130 |
from US $42.10 |
||
|
88150A
|
88150A
88150-48220
Computer Assy, Driving Support
[09.2015 - 08.2016] AGL20,GGL25..LHD..GEN TAIWAN&PRE-COLLISION SYSTEM-WITH(*PBA & *PB); AGL20,GGL25..RHD AUSTRALIA&PRE-COLLISION SYSTEM-WITH(*PBA & *PB); GGL25..RHD NEW ZEALAND&PRE-COLLISION SYSTEM-WITH(*PBA & *PB); AGL2#,GGL25..RHD THAILAND&PRE-COLLISION |
88150-48220 |
— | ||
|
88150A
|
88150A
88150-48221
Computer Assy, Driving Support
[08.2016 - 12.2017] AGL20,GGL25..LHD..GEN TAIWAN&PRE-COLLISION SYSTEM-WITH(*PBA & *PB); AGL20,GGL25..RHD AUSTRALIA&PRE-COLLISION SYSTEM-WITH(*PBA & *PB); GGL25..RHD NEW ZEALAND&PRE-COLLISION SYSTEM-WITH(*PBA & *PB); AGL2#,GGL25..RHD THAILAND&PRE-COLLISION |
88150-48221 |
— | ||
|
89111
|
89111
89111-48130 Computer, Network Gateway[09.2015 -] AGL2#,GGL2# |
89111-48130 |
US $244.46 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[09.2015 -] AGL2#,GGL2#,GYL25 |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-48N61
Computer, Multiplex Network Body
[09.2015 - 11.2015] AGL2#,GGL2#,GYL25..LHD..GEN |
89220-48N61 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48N62
Computer, Multiplex Network Body
[09.2015 - 11.2015] AGL2#,GGL2#,GYL25..LHD..GEN |
89220-48N62 |
— | ||
|
89221
|
89221
89220-48N62
Computer, Multiplex Network Body
[12.2015 -] AGL2#,GGL2#,GYL25..LHD..GEN |
89220-48N62 |
— | ||
|
89221
|
89221
89220-48N71
Computer, Multiplex Network Body
[09.2015 - 11.2015] AGL20,GGL25,GYL25..LHD..GEN TAIWAN |
89220-48N71 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48N72
Computer, Multiplex Network Body
[09.2015 - 11.2015] AGL20,GGL25,GYL25..LHD..GEN TAIWAN |
89220-48N72 |
— | ||
|
89221
|
89221
89220-48N72
Computer, Multiplex Network Body
[12.2015 -] AGL20,GGL25,GYL25..LHD..GEN TAIWAN |
89220-48N72 |
— | ||
|
89221
|
89221
89220-48N91
Computer, Multiplex Network Body
[09.2015 - 11.2015] AGL2#,GGL25,GYL25..LHD..GEN VIETNAM,CAMBODIA |
89220-48N91 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48N92
Computer, Multiplex Network Body
[09.2015 - 11.2015] AGL2#,GGL25,GYL25..LHD..GEN VIETNAM,CAMBODIA |
89220-48N92 |
— | ||
|
89221
|
89221
89220-48N92
Computer, Multiplex Network Body
[12.2015 -] AGL2#,GGL25,GYL25..LHD..GEN VIETNAM,CAMBODIA |
89220-48N92 |
— | ||
|
90183A0002
|
90183A0002
90183-A0002
New Genuine Part
|
90183-A0002 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018306032
|
9018306032
90183-06032 New Genuine Part |
90183-06032 |
US $1.12 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
