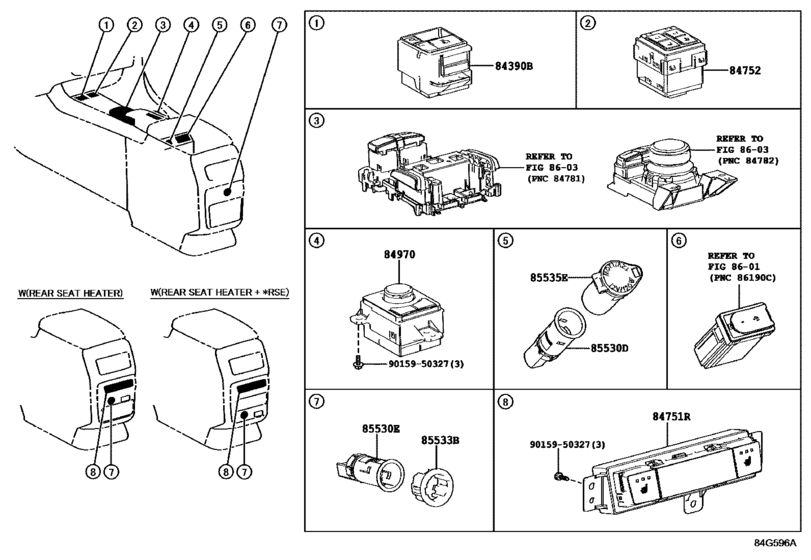

Switch & Relay & Computer ([09.2015 - ] INSTRUMENT PANEL(2/2) (1509- )LHD) Diagram Toyota LEXUS RX
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGL20
- grade
- STD
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- RX200T
- From
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX200T
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84390B
|
84390B
84390-48010
Switch Assy, Electric Parking Brake
[09.2015 -] AGL2#,GGL2#,GYL25..LHD |
84390-48010 |
— | ||
|
84751R
|
84751R
84752-48040 Switch, Seat Heater(Rear)[09.2015 -] AGL20,GGL2#..GEN;AGL25,GYL25..CHI,GEN SEAT HEATER-W(FRONT & REAR) |
84752-48040 |
US $100.46 |
||
|
84752
|
84752
84752-48010 Switch, Refreshing Seat[09.2015 -] AGL2#,GGL2#,GYL25..CHI,GEN SEAT COVER MATERIAL-SMOOTH&SEAT HEATER-W(FRONT ONLY); AGL20,GGL2#..GEN;AGL25,GYL25..CHI,GEN SEAT COVER MATERIAL-SMOOTH&SEAT HEATER-W(FRONT & REAR); AGL20,GGL2#..GEN;AGL25,GYL25..CHI,GEN SEAT COVER MATERIAL-SEMIANILIN |
84752-48010 |
US $117.94 |
||
|
84752
|
84752
84752-48020 Switch, Refreshing Seat[09.2015 -] AGL2#,GGL2#,GYL25..CHI,GEN SEAT HEATER-W(FRONT ONLY) |
84752-48020 |
US $100.46 |
||
|
84752
|
84752
84752-48030
Switch, Refreshing Seat
[09.2015 -] AGL2#,GGL2#,GYL25..LHD..(GCC,GEN) SEAT COVER MATERIAL-SMOOTH; AGL2#,GGL2#,GYL25..LHD..(GCC,GEN) SEAT COVER MATERIAL-SEMIANILIN |
84752-48030 |
— | ||
|
84970
|
84970
84970-48010
Switch Assy, Combination
[09.2015 -] AGL25..LHD;AGL20..LHD..GEN AVS(TEMS)-WITH |
84970-48010 |
— | ||
|
84970
|
84970
84970-48020
Switch Assy, Combination
[09.2015 -] AGL2#..LHD |
84970-48020 |
— | ||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[09.2015 -] AGL2#,GGL2#,GYL25 |
85530-42010 |
from US $26.60 |
||
|
85530E
|
85530E
85530-48120 Socket Assy, Power Outlet, No.1[09.2015 -] AGL2#,GGL2#,GYL25 |
85530-48120 |
US $23.59 |
||
|
85533B
|
85533B
85533-48020 Lens, Power Outlet Socket[09.2015 -] AGL2#,GGL2#,GYL25 |
85533-48020 |
US $8.44 |
||
|
85535E
|
85535E
85535-44050-C0 Cover, Power Outlet Socket, No.1 (Black)[09.2015 -] AGL2#,GGL2#,GYL25 BLACK |
85535-44050-C0 |
US $8.39 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
