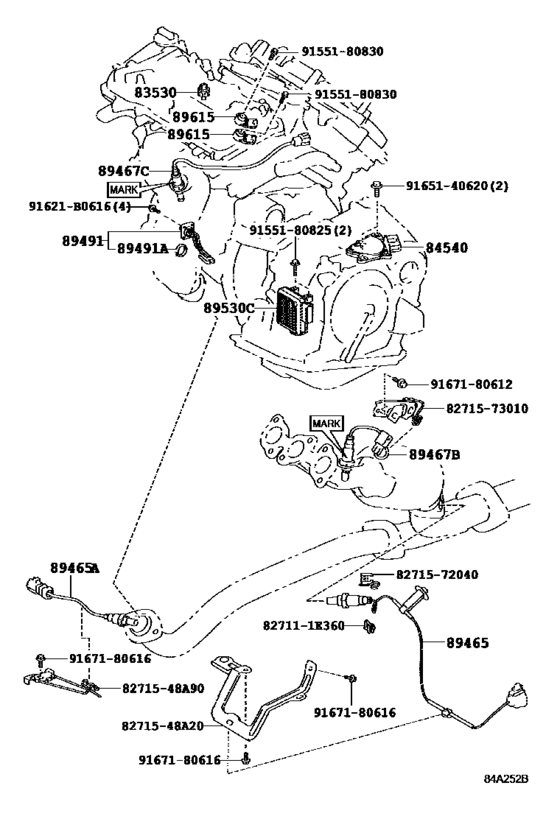

Switch & Relay & Computer ([12.2008 - ] ENGINE & TRANSMISSION (0812- )GGL15) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- Europe
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[12.2008 - 03.2012] AGL10,GGL15,GYL1# DENSO |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2008 - 03.2012] AGL10,GGL15,GYL1# DENSO |
83530-60020 |
from US $24.16 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2008 - 03.2012] AGL10,GGL15,GYL1# YAZAKI |
83530-60020 |
from US $24.16 |
||
|
84540
|
84540
84540-33010 Switch Assy, Neutral Start[12.2008 - 03.2012] AGL10,GGL15 |
84540-33010 |
from US $113.92 |
||
|
89465
|
89465
89465-48240 Sensor, OxygenOXYGEN [12.2008 - 03.2012] GGL15 |
89465-48240 |
from US $104.83 |
||
|
89465A
|
89465A
89465-48220 Sensor, Oxygen No.2OXYGEN NO.2 [12.2008 - 03.2012] GGL15 |
89465-48220 |
from US $182.40 |
||
|
89467B
|
89467B
89467-48130 Sensor, Air Fuel Ratio[12.2008 - 08.2011] GGL15 MARK 89467-48130 |
89467-48130 |
from US $222.55 |
||
|
89467B
|
89467B
89467-48210 Sensor, Air Fuel Ratio[08.2011 - 03.2012] GGL15 MARK 89467-48210 |
89467-48210 |
US $147.06 |
||
|
89467C
|
89467C
89467-48160 Sensor, Air Fuel Ratio, No.2AIR FUEL RATIO [12.2008 - 08.2011] GGL15 MARK 89467-48160 |
89467-48160 |
from US $174.72 |
||
|
89467C
|
89467C
89467-48220 Sensor, Air Fuel Ratio, No.2[08.2011 - 03.2012] GGL15 MARK 89467-48220 |
89467-48220 |
from US $132.50 |
||
|
89530C
|
89530C
89530-48060
Computer Assy, Transmission Control
[12.2008 - 07.2010] GGL15..GCC; GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..RHD SOUTH AFRICA SPEC; GGL15..RHD THAILAND SPEC; GGL15..RHD BRUNEI SPEC; GGL15..RHD MALAYSIA SPEC; GGL15..RHD SINGAPORE SPEC; GGL15..RHD INDONESIA SPEC; GGL15..LHD..EUR UKRAINE SPEC; |
89530-48060 |
— | ||
| replacement | |||||
|
89530C
|
89530C
89530-48160
Computer Assy, Transmission Control
[12.2008 - 07.2010] GGL15..GCC; GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..RHD SOUTH AFRICA SPEC; GGL15..RHD THAILAND SPEC; GGL15..RHD BRUNEI SPEC; GGL15..RHD MALAYSIA SPEC; GGL15..RHD SINGAPORE SPEC; GGL15..RHD INDONESIA SPEC; GGL15..LHD..EUR UKRAINE SPEC; |
89530-48160 |
— | ||
|
89530C
|
89530C
89530-48160
Computer Assy, Transmission Control
[08.2010 - 08.2011] GGL15..GCC; GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..RHD SOUTH AFRICA SPEC; GGL15..RHD THAILAND SPEC; GGL15..RHD BRUNEI SPEC; GGL15..RHD MALAYSIA SPEC; GGL15..RHD SINGAPORE SPEC; GGL15..RHD INDONESIA SPEC; GGL15..LHD..EUR KAZAKHSTAN SPE |
89530-48160 |
— | ||
|
89530C
|
89530C
89530-48230
Computer Assy, Transmission Control
[08.2011 - 03.2012] GGL15..GCC; GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..RHD SOUTH AFRICA SPEC; GGL15..RHD THAILAND SPEC; GGL15..RHD BRUNEI SPEC; GGL15..RHD MALAYSIA SPEC; GGL15..RHD SINGAPORE SPEC; GGL15..RHD INDONESIA SPEC; GGL15..LHD..EUR KAZAKHSTAN SPE |
89530-48230 |
— | ||
|
89530C
|
89530C
89530-48340
Computer Assy, Transmission Control
[03.2014 -] GGL15..GCC MARK=89530-48340; GGL15..LHD..EUR PHILIPPINE SPEC,MARK=89530-48340; GGL15..RHD SOUTH AFRICA SPEC,MARK=89530-48340; GGL15..RHD BRUNEI SPEC,MARK=89530-48340; GGL15..RHD MALAYSIA SPEC,MARK=89530-48340; GGL15..RHD INDONESIA SPEC,MARK=89 |
89530-48340 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[12.2008 - 03.2012] GGL15,GYL1# |
89615-20090 |
from US $39.82 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
8271548A20
|
8271548A20
82715-48A20 Bracket,wiring Harness Clamp |
82715-48A20 |
US $12.23 |
||
|
8271548A90
|
8271548A90
82715-48A90 Bracket,wiring Harness Clamp |
82715-48A90 |
US $5.53 |
||
|
8271572040
|
8271572040
82715-72040
Bracket,wiring Harness Clamp
|
82715-72040 |
— | ||
|
8271573010
|
8271573010
82715-73010 Bracket,wiring Harness Clamp |
82715-73010 |
US $7.57 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
