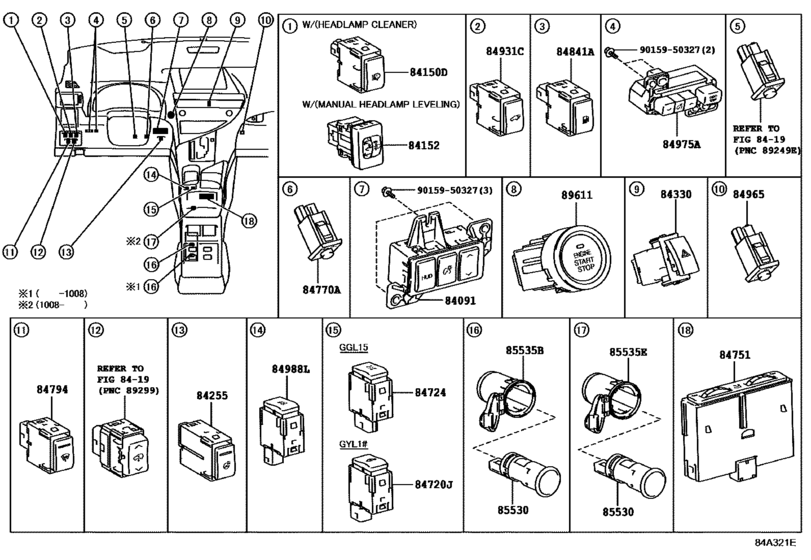

Switch & Relay & Computer ([12.2008 - ] INSTRUMENT PANEL (0812- )LHD) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- Europe
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-48010
Switch Set, Satellite
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD HEAD UP DISPLAY-WITH |
84091-48010 |
— | ||
|
84150D
|
84150D
84150-48020 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84150-48020 |
US $39.60 |
||
| replacement | |||||
|
84150D
|
84150D
84150-48021 Switch Assy, Headlamp Cleaner[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84150-48021 |
US $35.96 |
||
|
84150D
|
84150D
84150-48021 Switch Assy, Headlamp Cleaner[12.2014 -] GGL15;GYL15..GCC;AGL10,GYL1#..RHD; AGL10,GYL1#..LHD..EUR HEADLAMP-DISCHARGE & AFS; AGL10..LHD HEADLAMP-DISCHARGE; GYL1#..LHD..EUR HEADLAMP-LED & AFS |
84150-48021 |
US $35.96 |
||
|
84330
|
84330
84330-48010
Switch Assy, Hazard Warning Signal
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
84330-48010 |
— | ||
|
84330
|
84330
84330-48040
Switch Assy, Hazard Warning Signal
[03.2012 -] AGL10,GGL15,GYL1#..LHD |
84330-48040 |
— | ||
|
84724
|
84724
84724-48010 Switch, 4 Wheel Drive Control4 WHEEL DRIVE CONTROL [12.2008 - 03.2012] GGL15 |
84724-48010 |
US $34.36 |
||
| replacement | |||||
|
84724
|
84724
84724-48011 Switch, 4 Wheel Drive Control[12.2008 - 03.2012] GGL15 |
84724-48011 |
US $34.36 |
||
|
84724
|
84724
84724-48011 Switch, 4 Wheel Drive Control[12.2014 -] GGL15 |
84724-48011 |
US $34.36 |
||
|
84751
|
84751
84751-48110 Switch, Seat HeaterSEAT HEATER [12.2008 - 03.2012] AGL10,GGL15,GYL15 ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
84751-48110 |
US $176.18 |
||
|
84751
|
84751
84751-48130 Switch, Seat Heater[08.2013 -] AGL10,GGL15,GYL15 ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
84751-48130 |
US $195.10 |
||
|
84770A
|
84770A
84770-48020 Switch Assy, Pre-Collision System CancelPRECRASH SYSTEM CANCEL [12.2008 - 03.2012] GGL15,GYL1# PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
84770-48020 |
US $31.16 |
||
|
84841A
|
84841A
84841-48050 Switch, Fuel Lid OpenerFUEL LID OPENER [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84841-48050 |
US $34.36 |
||
| replacement | |||||
|
84841A
|
84841A
84841-48051 Switch, Fuel Lid Opener[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84841-48051 |
US $34.36 |
||
|
84841A
|
84841A
84841-48051 Switch, Fuel Lid Opener[12.2014 -] AGL10,GGL15,GYL1# |
84841-48051 |
US $34.36 |
||
|
84931C
|
84931C
84930-48060 Switch, Back Door ControlBACK DOOR CONTROL [12.2008 - 03.2012] AGL10,GGL15,GYL1# AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
84930-48060 |
US $34.36 |
||
| replacement | |||||
|
84931C
|
84931C
84930-48061 Switch, Back Door Control[12.2008 - 03.2012] AGL10,GGL15,GYL1# AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
84930-48061 |
US $34.36 |
||
|
84931C
|
84931C
84930-48061 Switch, Back Door Control[12.2014 -] AGL10,GGL15..RHD;GGL15,GYL15..GCC; GYL1#..EUR;AGL10,GGL15..LHD..EUR AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
84930-48061 |
US $34.36 |
||
|
84965
|
84965
84930-48070 Switch, Power Back Door MainPOWER BACK DOOR MAIN [12.2008 - 03.2012] AGL10,GGL15,GYL1# AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
84930-48070 |
US $34.36 |
||
|
84975A
|
84975A
84119-48020
Trip & Rheostat Switch Assy
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
84119-48020 |
— | ||
|
84988L
|
84988L
84988-48100 Switch, Vsc OffVSC OFF [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84988-48100 |
US $34.36 |
||
| replacement | |||||
|
84988L
|
84988L
84988-48101 Switch, Vsc Off[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84988-48101 |
US $31.16 |
||
|
84988L
|
84988L
84988-48101 Switch, Vsc Off[12.2014 -] AGL10,GGL15,GYL1# |
84988-48101 |
US $31.16 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
85530-42010 |
from US $26.27 |
||
|
85535B
|
85535B
85535-48140 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [08.2010 - 03.2012] AGL10,GGL15,GYL1# |
85535-48140 |
US $5.97 |
||
| replacement | |||||
|
85535B
|
85535B
85535-44050-B1 Cover, Power Outlet Socket, No.2[08.2010 - 03.2012] AGL10,GGL15,GYL1# |
85535-44050-B1 |
US $6.99 |
||
|
85535E
|
85535E
85535-44050-A0 Cover, Power Outlet Socket, No.2[08.2010 - 03.2012] AGL10,GGL15,GYL1# IVORY,TRIM0# |
85535-44050-A0 |
US $7.13 |
||
|
85535E
|
85535E
85535-44050-B1 Cover, Power Outlet Socket, No.2[08.2010 - 03.2012] AGL10,GGL15 LT.GRAY,TRIM1# |
85535-44050-B1 |
US $6.99 |
||
|
85535E
|
85535E
85535-44050-C0 Cover, Power Outlet Socket, No.1 (Black)[08.2010 - 03.2012] GYL1# BLACK,TRIM1#,2#; AGL10,GGL15 BLACK,TRIM2# |
85535-44050-C0 |
US $8.39 |
||
|
89611
|
89611
89611-48030 Switch, Push StartPUSH START [12.2008 - 01.2010] GGL15 |
89611-48030 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-48034 Switch, Push Start[12.2008 - 01.2010] GGL15 |
89611-48034 |
from US $65.72 |
||
|
89611
|
89611
89611-48031 Switch, Push StartPUSH START [02.2010 - 04.2011] AGL10,GGL15 |
89611-48031 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-48034 Switch, Push Start[02.2010 - 04.2011] AGL10,GGL15 |
89611-48034 |
from US $65.72 |
||
|
89611
|
89611
89611-48032 Switch, Push Start[05.2011 - 03.2012] AGL10,GGL15 |
89611-48032 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-48034 Switch, Push Start[05.2011 - 03.2012] AGL10,GGL15 |
89611-48034 |
from US $65.72 |
||
|
89611
|
89611
89611-48033 Switch, Push Start[05.2012 -] AGL10,GGL15 |
89611-48033 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-48034 Switch, Push Start[05.2012 -] AGL10,GGL15 |
89611-48034 |
from US $65.72 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
