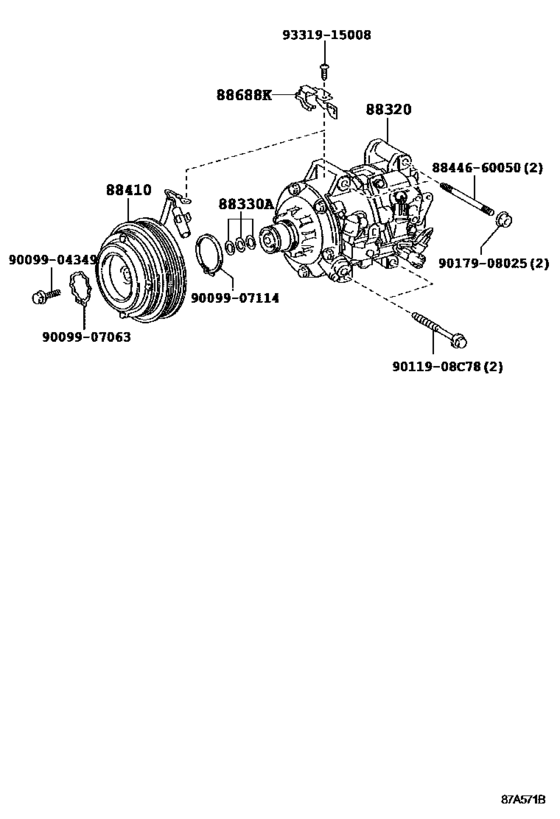

Heating & Air Conditioning - Compressor ([12.2008 - ] (0812- )GGL15..GCC) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-48180
Compressor Assy, Cooler
[12.2008 - 09.2010] GGL15..GCC |
88320-48180 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-48230 Compressor Assy, Cooler[12.2008 - 09.2010] GGL15..GCC |
88320-48230 |
US $1,181.84 |
||
|
88320
|
88320
88320-48230 Compressor Assy, Cooler[10.2010 - 03.2012] GGL15..GCC |
88320-48230 |
US $1,181.84 |
||
|
88320
|
88320
88320-48270
Compressor Assy, Cooler
[09.2012 - 10.2012] GGL15..GCC |
88320-48270 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-48290
Compressor Assy, Cooler
[09.2012 - 10.2012] GGL15..GCC |
88320-48290 |
— | ||
|
88320
|
88320
88320-48290
Compressor Assy, Cooler
[10.2012 -] GGL15..GCC |
88320-48290 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[12.2008 - 09.2010] GGL15 |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-33180
Clutch Assy, Magnet
[09.2012 - 03.2014] GGL15 |
88410-33180 |
— | ||
| replacement | |||||
|
88410
|
88410
88410-33190 Clutch Assy, Magnet[09.2012 - 03.2014] GGL15 |
88410-33190 |
from US $366.91 |
||
|
88410
|
88410
88410-33190 Clutch Assy, Magnet[03.2014 -] GGL15 |
88410-33190 |
from US $366.91 |
||
|
88410
|
88410
88410-48100 Clutch Assy, MagnetMAGNET [12.2008 - 09.2010] GGL15 |
88410-48100 |
from US $420.69 |
||
|
88688K
|
88688K
88688-33570
Bracket, Cooler Compressor
[09.2012 -] GGL15 |
88688-33570 |
— | ||
|
88688K
|
88688K
88688-48250
Bracket, Cooler Compressor
[12.2008 - 09.2010] GGL15 |
88688-48250 |
— | ||
|
9011908C78
|
9011908C78
90119-08C78 Bolt, No.2(For Alternator) |
90119-08C78 |
US $2.10 |
||
|
8844660050
|
8844660050
88446-60050 Bolt, Idle Pulley |
88446-60050 |
US $12.34 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $1.01 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
