OEM Parts Catalogue

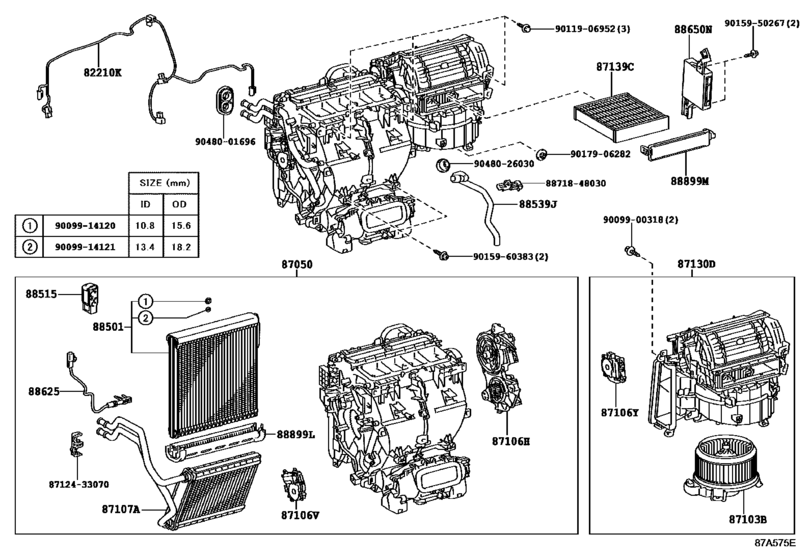

Heating & Air Conditioning - Cooler Unit ([12.2008 - ] (0812- )LHD) Diagram Toyota LEXUS RX

Year
2008 - 2015
Sales region
General
Frame
GGL15
grade
STD
ENGINE
2GRFE
TRANSMISSION
ATM
DESTINATION
GCC
Model
RX350
From
12.2008
To
09.2015
Gear Shift Type
6FC
Vehicle Model
RX350
Driver's Position
LHD

Difficulties in parts search?

Parts list Diagram
Parts list
Heating & Air Conditioning - Cooler Unit

Difficulties in parts search?

Heating & Air Conditioning - Cooler Unit
Description OEM Part # Price
82210K
82210K
82212-33021
Harness Assy, Air Conditioner

[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD

82212-33021

 —
replacement
82210K
82210K
82212-33022
Harness Assy, Air Conditioner

[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD

82212-33022

 —
87050
87050
87050-48290
Radiator Assy, Air Conditioner

[12.2008 - 03.2012] GGL15..GCC

87050-48290

 —
replacement
87050
87050
87050-48291
Radiator Assy, Air Conditioner

[12.2008 - 03.2012] GGL15..GCC

87050-48291

 —
87050
87050
87050-48291
Radiator Assy, Air Conditioner

[03.2015 -] GGL15..GCC

87050-48291

 —
87103B
87103B
87103-33110
Motor Sub-Assy, Blower W/fan

[08.2013 -] AGL10,GGL15,GYL1#..LHD

87103-33110

 —
87103B
87103B

87103-48080

Motor Sub-Assy, Blower W/fan

BLOWER W/FAN

[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD

87103-48080

US $267.64

87103B
87103B
87103-48100
Motor Sub-Assy, Blower W/fan

[03.2012 - 08.2013] AGL10,GGL15,GYL1#..LHD

87103-48100

 —
87106H
87106H
87106-33290
Damper Servo Sub-Assy, Air Conditioner Radiator, No.1

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

87106-33290

 —
87106V
87106V

87106-33260

Damper Servo Sub-Assy, Air Conditioner Radiator, No.2

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

87106-33260

US $112.67

87106Y
87106Y

87106-33270

Servo Sub-Assy, Damper

DAMPER(FOR RECIRCULATION)

[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD

87106-33270

US $111.13

87107A
87107A

87107-33120

Unit Sub-Assy, Heater Radiator

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

87107-33120

US $395.34

87130D
87130D
87130-48220
Blower Assy

[12.2008 - 03.2012] GGL15..LHD

87130-48220

 —
87130D
87130D
87130-48280
Blower Assy

[03.2012 - 08.2013] GGL15..LHD

87130-48280

 —
87130D
87130D
87130-48281
Blower Assy

[08.2013 -] GGL15..LHD

87130-48281

 —
87139C
87139C

87139-30040

Filter, Clean Air

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

87139-30040

from US $33.60

replacement
87139C
87139C

87139-YZZ45

Filter, Clean Air

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

87139-YZZ45

US $121.58

87139C
87139C
87139-50060
Filter, Clean Air (Charcoal)

[03.2012 - 04.2012] AGL10,GGL15,GYL1# DEODORANT FILTER

87139-50060

 —
replacement
87139C
87139C

87139-50100

Clean Air Filter (Charcoal type)

[03.2012 - 04.2012] AGL10,GGL15,GYL1# DEODORANT FILTER

87139-50100

from US $67.20

87139C
87139C

87139-50100

Clean Air Filter (Charcoal type)

[05.2012 - 09.2015] AGL10,GGL15,GYL1# *DPF

87139-50100

from US $67.20

87139C
87139C

87139-52040

Filter, Clean Air

[03.2012 - 09.2015] AGL10,GGL15,GYL1# POLLEN FILTER

87139-52040

from US $33.60

88501
88501
88501-33310
Evaporator Sub-Assy, Cooler, No.1

[03.2015 -] GGL15

88501-33310

 —
88501
88501
88501-48310
Evaporator Sub-Assy, Cooler, No.1

[12.2008 - 07.2010] GGL15

88501-48310

 —
replacement
88501
88501

88501-48311

Evaporator Sub-Assy, Cooler, No.1

[12.2008 - 07.2010] GGL15

88501-48311

from US $354.68

88501
88501

88501-48311

Evaporator Sub-Assy, Cooler, No.1

[07.2010 - 03.2012] GGL15

88501-48311

from US $354.68

88515
88515

88515-48080

Valve, Cooler Expansion

COOLER EXPANSION

[12.2008 - 03.2012] GGL15..GCC

88515-48080

US $109.84

88539J
88539J
88539-48040
Hose, Drain Cooler

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

88539-48040

 —
88625
88625

88625-33190

Thermistor, Cooler, No.1

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

88625-33190

US $10.35

88650N
88650N
88650-48340
Amplifier Assy, Air Conditioner

[12.2008 - 08.2009] GGL15

88650-48340

 —
replacement
88650N
88650N
88650-48341
Amplifier Assy, Air Conditioner

[12.2008 - 08.2009] GGL15

88650-48341

 —
88650N
88650N
88650-48341
Amplifier Assy, Air Conditioner

[08.2009 - 08.2010] GGL15

88650-48341

 —
88650N
88650N
88650-48350
Amplifier Assy, Air Conditioner

[12.2008 - 08.2009] GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); GGL15..EUR ULTRA

88650-48350

 —
replacement
88650N
88650N

88650-48351

Amplifier Assy, Air Conditioner

AIR CONDITIONER

[12.2008 - 08.2009] GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); GGL15..EUR ULTRA

88650-48351

US $636.79

88650N
88650N

88650-48351

Amplifier Assy, Air Conditioner

AIR CONDITIONER

[08.2009 - 08.2010] GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); GGL15..EUR ULTRA

88650-48351

US $636.79

88650N
88650N
88650-48460
Amplifier Assy, Air Conditioner

[08.2010 - 10.2010] AGL10,GGL15

88650-48460

 —
replacement
88650N
88650N
88650-48650
Amplifier Assy, Air Conditioner

[08.2010 - 10.2010] AGL10,GGL15

88650-48650

 —
88650N
88650N
88650-48461
Amplifier Assy, Air Conditioner

[10.2010 - 07.2011] AGL10,GGL15

88650-48461

 —
replacement
88650N
88650N
88650-48650
Amplifier Assy, Air Conditioner

[10.2010 - 07.2011] AGL10,GGL15

88650-48650

 —
88650N
88650N
88650-48470
Amplifier Assy, Air Conditioner

[08.2010 - 10.2010] AGL10,GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); AGL10,GGL1

88650-48470

 —
replacement
88650N
88650N
88650-48660
Amplifier Assy, Air Conditioner

[08.2010 - 10.2010] AGL10,GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); AGL10,GGL1

88650-48660

 —
88650N
88650N
88650-48471
Amplifier Assy, Air Conditioner

[10.2010 - 07.2011] AGL10,GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); AGL10,GGL1

88650-48471

 —
replacement
88650N
88650N
88650-48660
Amplifier Assy, Air Conditioner

[10.2010 - 07.2011] AGL10,GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); AGL10,GGL1

88650-48660

 —
88650N
88650N
88650-48590
Amplifier Assy, Air Conditioner

[03.2012 -] GGL15;AGL10..LHD

88650-48590

 —
88650N
88650N

88650-48600

Amplifier Assy, Air Conditioner

[03.2012 -] AGL10..RHD; AGL10..LHD;GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(HDD NAVIGATION); A

88650-48600

US $297.26

88650N
88650N
88650-48650
Amplifier Assy, Air Conditioner

[10.2011 - 03.2012] AGL10,GGL15

88650-48650

 —
88650N
88650N
88650-48660
Amplifier Assy, Air Conditioner

[10.2011 - 03.2012] AGL10,GGL15..EUR ULTRA LUXURY PACKAGE; GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); GGL15..GCC ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); AGL10,GGL1

88650-48660

 —
88899L
88899L

88899-33050

Parts, Cooling Unit

COVER(FOR AIR FILTER)

[12.2008 - 03.2012] AGL10,GGL15,GYL10

88899-33050

US $11.39

88899M
88899M

88899-33040

Plate, Cover(For Air Filter)

[12.2008 - 03.2012] AGL10,GGL15,GYL1#

88899-33040

from US $1.22

8712433070
8712433070

87124-33070

Clamp, Heater

87124-33070

from US $1.12

8871848030
8871848030
88718-48030
Pipe, Cooler Refrigerant Suction, No.2

88718-48030

 —
9009900318
9009900318
90099-00318
New Genuine Part

90099-00318

 —
9009914120
9009914120

90099-14120

O-Ring, Cooler Evaporator No.1(Discharge)

90099-14120

from US $1.83

9009914121
9009914121

90099-14121

O-Ring, Cooler Evaporator No.1(Suction)

90099-14121

from US $1.56

9011906952
9011906952

90119-06952

New Genuine Part

90119-06952

US $1.08

9015950267
9015950267

90159-50267

SCREW WWASHER

90159-50267

from US $0.78

9015960383
9015960383

90159-60383

SCREW WWASHER

90159-60383

from US $0.82

9017906282
9017906282

90179-06282

New Genuine Part

90179-06282

US $0.67

9048001696
9048001696
90480-01696
Grommet, Heater

90480-01696

 —
9048026030
9048026030

90480-26030

Grommet (For Cooler Unit Drain Hose)

90480-26030

US $2.13

Heating & Air Conditioning - Cooler Unit ([12.2008 - ] (0812- )LHD) Diagram Toyota LEXUS RX General 18045392-937423
