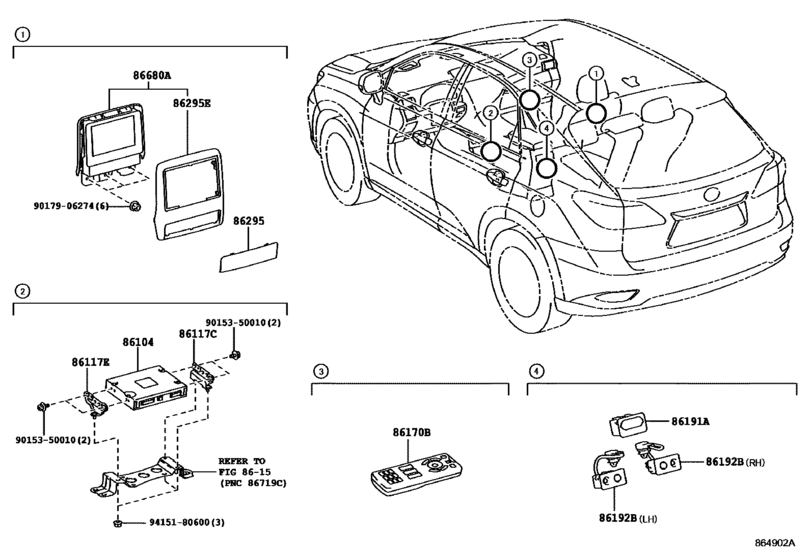

Rear Monitor Display & Camera ([03.2012 - ] (1203- )LHD) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86104
|
86104
86104-48031
Controller Sub-Assy, Multi-Display
[07.2009 - 03.2012] GGL15..GCC;GYL15..RHD WITH(REAR DISPLAY); AGL10,GGL15,GYL15..LHD..EUR WITH(REAR DISPLAY)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
86104-48031 |
— | ||
|
86104
|
86104
86104-60010 Controller Sub-Assy, Multi-Display[03.2012 -] GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS); GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS); GYL15;GGL15..LHD WITH(REAR DISPLAY) |
86104-60010 |
from US $1,563.83 |
||
|
86117C
|
86117C
86117-48120
Bracket, Multi-Display Controller, No.2
[03.2012 -] GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS); GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS); GYL15;GGL15..LHD WITH(REAR DISPLAY) |
86117-48120 |
— | ||
|
86117C
|
86117C
86117-48150
Bracket, Multi-Display Controller, No.2
[06.2009 - 03.2012] GGL15..GCC WITH(REAR DISPLAY) |
86117-48150 |
— | ||
|
86117E
|
86117E
86118-48090
Bracket, Multi-Display Controller, No.3
[03.2012 -] GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS); GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS); GYL15;GGL15..LHD WITH(REAR DISPLAY) |
86118-48090 |
— | ||
|
86117E
|
86117E
86118-48120
Bracket, Multi-Display Controller, No.3
[06.2009 - 03.2012] GGL15..GCC WITH(REAR DISPLAY) |
86118-48120 |
— | ||
|
86170B
|
86170B
86170-48020 Switch & Volume Assy, TelevisionTELEVISION [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY) |
86170-48020 |
US $381.70 |
||
|
86170B
|
86170B
86170-60120 Switch & Volume Assy, Television[03.2012 -] GYL15;GGL15..LHD WITH(REAR DISPLAY) |
86170-60120 |
US $220.51 |
||
|
86191A
|
86191A
86191-48050-A0 Terminal, Video(Video Adapter)VIDEO(VIDEO ADAPTER) [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0# |
86191-48050-A0 |
US $35.09 |
||
|
86191A
|
86191A
86191-48050-B0
Terminal, Video(Video Adapter)
[06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
86191-48050-B0 |
— | ||
|
86191A
|
86191A
86191-48050-C0 Terminal, Video(Video Adapter)VIDEO(VIDEO ADAPTER) [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2# |
86191-48050-C0 |
US $35.09 |
||
|
86192B
|
86192B
86192-48010-A0 Terminal, HeadphoneHEADPHONE [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0#,LH |
86192-48010-A0 |
US $78.62 |
||
|
86192B
|
86192B
86192-48010-B0
Terminal, Headphone
[06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1#,LH |
86192-48010-B0 |
— | ||
|
86192B
|
86192B
86192-48010-C0 Terminal, HeadphoneHEADPHONE [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2#,LH |
86192-48010-C0 |
US $78.62 |
||
|
86192B
|
86192B
86192-48020-A0 Terminal, HeadphoneHEADPHONE [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0#,RH |
86192-48020-A0 |
US $78.62 |
||
|
86192B
|
86192B
86192-48020-B0
Terminal, Headphone
[06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1#,RH |
86192-48020-B0 |
— | ||
|
86192B
|
86192B
86192-48020-C0 Terminal, HeadphoneHEADPHONE [06.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2#,RH |
86192-48020-C0 |
US $78.62 |
||
|
86295
|
86295
86295-48080-A0 Base, TelevisionTELEVISION [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0# |
86295-48080-A0 |
US $13.10 |
||
|
86295
|
86295
86295-48080-B0 Base, TelevisionTELEVISION [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
86295-48080-B0 |
US $13.10 |
||
|
86295
|
86295
86295-48080-C0 Base, TelevisionTELEVISION [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2# |
86295-48080-C0 |
US $11.79 |
||
|
86295E
|
86295E
86295-48060-A0 Base, Television, No.2TELEVISION, NO.2 [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0# |
86295-48060-A0 |
US $42.81 |
||
|
86295E
|
86295E
86295-48060-B0 Base, Television, No.2TELEVISION, NO.2 [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
86295-48060-B0 |
US $42.81 |
||
|
86295E
|
86295E
86295-48060-C0 Base, Television, No.2TELEVISION, NO.2 [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2# |
86295-48060-C0 |
US $42.81 |
||
|
86680A
|
86680A
86430-48011-A0 Display Assy, TelevisionTELEVISION [07.2009 - 03.2012] AGL10..LHD;GGL15..GCC PANASONIC,WITH(REAR DISPLAY),IVORY,TRIM0# |
86430-48011-A0 |
US $4,164.16 |
||
|
86680A
|
86680A
86430-48011-B0
Display Assy, Television
[07.2009 - 03.2012] AGL10..LHD;GGL15..GCC PANASONIC,WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
86430-48011-B0 |
— | ||
|
86680A
|
86680A
86430-48011-C0
Display Assy, Television
[07.2009 - 03.2012] AGL10..LHD;GGL15..GCC PANASONIC,WITH(REAR DISPLAY),BLACK,TRIM2# |
86430-48011-C0 |
— | ||
|
86680A
|
86680A
86430-48240-A0
Display Assy, Television
[03.2012 -] GYL15;GGL15..LHD PANASONIC,WITH(REAR DISPLAY),IVORY,TRIM0# |
86430-48240-A0 |
— | ||
|
86680A
|
86680A
86430-48240-C0
Display Assy, Television
[03.2012 -] GYL15..EUR;GGL15..LHD..EUR PANASONIC,WITH(REAR DISPLAY),BLACK,TRIM2#,4#; GGL15,GYL15..GCC PANASONIC,WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
86430-48240-C0 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
