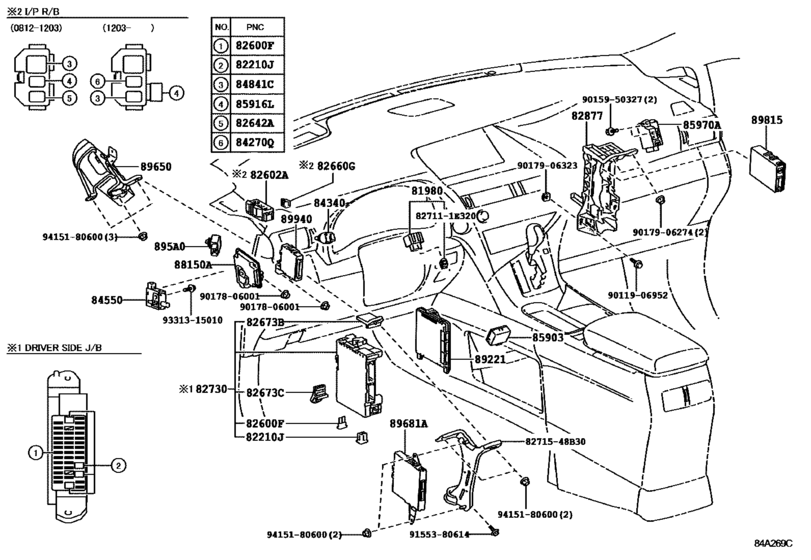

Switch & Relay & Computer ([12.2008 - ] COWL (0812- )AGL10,GGL15..LHD) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [12.2008 - 03.2012] GGL15..GCC; GGL15,GYL15..RHD NEW ZEALAND SPEC; AGL10,GGL15,GYL15..RHD HONG KONG SPEC; GGL15..LHD..EUR CHILE SPEC |
895A0-20020 |
US $48.75 |
||
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
81980-30170 |
from US $52.40 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[12.2008 - 03.2012] AGL10,GGL15 80A,TERMINAL:MALE |
90982-08203 |
from US $7.23 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[12.2008 - 03.2012] AGL10,GGL15,GYL1# 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.99 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2008 - 03.2012] AGL10,GGL15,GYL1# 7.5A,MINI FUSE |
90982-09020 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2008 - 03.2012] AGL10,GGL15,GYL1# 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2008 - 03.2012] AGL10,GGL15,GYL1# 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2008 - 03.2012] AGL10,GGL15,GYL1# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2008 - 03.2012] AGL10,GGL15,GYL1# 25A,MINI FUSE |
90982-09024 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2008 - 03.2012] AGL10,GGL15,GYL1# 30A,MINI FUSE |
90982-09025 |
from US $0.78 |
||
|
82602A
|
82602A
82602-48050 Block Sub-Assy, Relay[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
82602-48050 |
US $22.13 |
||
|
82642A
|
82642A
90987-02027 Relay[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
90987-02027 |
from US $47.11 |
||
|
82660G
|
82660G
82660-52030 Block Assy, Relay[03.2012 -] AGL10,GGL15,GYL1# |
82660-52030 |
US $5.82 |
||
|
82673B
|
82673B
82673-48020
Bracket, Junction Block
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
82673-48020 |
— | ||
|
82673C
|
82673C
82673-48030
Bracket, Junction Block
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
82673-48030 |
— | ||
|
82730
|
82730
82730-48A10
Block Assy, Instrument Panel Junction
[03.2012 - 08.2013] AGL10,GGL15,GYL1#..LHD |
82730-48A10 |
— | ||
|
82730
|
82730
82730-48A11
Block Assy, Instrument Panel Junction
[08.2013 - 02.2014] AGL10,GGL15,GYL1#..LHD |
82730-48A11 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-48A12
Block Assy, Instrument Panel Junction
[08.2013 - 02.2014] AGL10,GGL15,GYL1#..LHD |
82730-48A12 |
— | ||
|
82730
|
82730
82730-48A12
Block Assy, Instrument Panel Junction
[03.2014 -] AGL10,GGL15,GYL1#..LHD |
82730-48A12 |
— | ||
|
82730
|
82730
82730-48A20
Block Assy, Instrument Panel Junction
[03.2012 - 08.2013] GGL15..GCC ULTRA LUXURY PACKAGE; GGL15..LHD..EUR;AGL10,GYL1#..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
82730-48A20 |
— | ||
|
82730
|
82730
82730-48A21
Block Assy, Instrument Panel Junction
[08.2013 - 02.2014] GGL15..GCC ULTRA LUXURY PACKAGE; GGL15..LHD..EUR;AGL10,GYL1#..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
82730-48A21 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-48A22
Block Assy, Instrument Panel Junction
[08.2013 - 02.2014] GGL15..GCC ULTRA LUXURY PACKAGE; GGL15..LHD..EUR;AGL10,GYL1#..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
82730-48A22 |
— | ||
|
82730
|
82730
82730-48A22
Block Assy, Instrument Panel Junction
[03.2014 -] GGL15..GCC ULTRA LUXURY PACKAGE; GGL15..LHD..EUR;AGL10,GYL1#..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
82730-48A22 |
— | ||
|
82730
|
82730
82730-48G60
Block Assy, Instrument Panel Junction
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
82730-48G60 |
— | ||
|
82730
|
82730
82730-48J20
Block Assy, Instrument Panel Junction
[12.2008 - 03.2012] GGL15..GCC ULTRA LUXURY PACKAGE; AGL10,GGL15,GYL1#..LHD..EUR SEAT HEATER-WITH(DRIVER & PASSENGER) |
82730-48J20 |
— | ||
|
82877
|
82877
82877-48010
Box, Computer Integration, Rh
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
82877-48010 |
— | ||
|
84270Q
|
84270Q
90987-02027 Relay[03.2012 -] AGL10,GGL15,GYL1# |
90987-02027 |
from US $47.11 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84340-30110 |
from US $20.34 |
||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[03.2012 - 09.2015] AGL10,GGL15,GYL1# |
84340-30130 |
from US $41.91 |
||
|
84550
|
84550
84550-47010 Switch Assy, Parking BrakePARKING BRAKE [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
84550-47010 |
US $30.58 |
||
|
84841C
|
84841C
90987-02009 Relay Assy[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
90987-02009 |
from US $26.15 |
||
|
84841C
|
84841C
90987-02027 Relay[03.2012 -] AGL10,GGL15,GYL1# |
90987-02027 |
from US $47.11 |
||
|
85903
|
85903
85903-52020 Computer Sub-Assy, Shift Lock Control[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
85903-52020 |
from US $53.09 |
||
|
85970A
|
85970A
85970-48030
Relay Assy, Double Lock Door Control
[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
85970-48030 |
— | ||
|
88150A
|
88150A
88150-48020
Computer Assy, Driving Support
[12.2008 - 03.2012] GGL15..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GGL15..LHD..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA) |
88150-48020 |
— | ||
|
88150A
|
88150A
88150-48021
Computer Assy, Driving Support
[08.2013 - 03.2014] GGL15..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),P/N LABEL=8815048021; GGL15..LHD..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),P/N LABEL=8815048021 |
88150-48021 |
— | ||
|
88150A
|
88150A
88150-48022
Computer Assy, Driving Support
[03.2014 - 05.2014] GGL15..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),P/N LABEL=8815048022; GGL15..LHD..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),P/N LABEL=8815048022 |
88150-48022 |
— | ||
| replacement | |||||
|
88150A
|
88150A
88150-48023
Computer Assy, Driving Support
[03.2014 - 05.2014] GGL15..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),P/N LABEL=8815048022; GGL15..LHD..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),P/N LABEL=8815048022 |
88150-48023 |
— | ||
|
88150A
|
88150A
88150-48023
Computer Assy, Driving Support
[06.2014 -] GGL15..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GGL15..LHD..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA) |
88150-48023 |
— | ||
|
89221
|
89221
89220-48070
Computer, Multiplex Network Body
[12.2008 - 02.2010] GGL15..GCC GCC SPEC |
89220-48070 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48071 Computer, Multiplex Network Body[12.2008 - 02.2010] GGL15..GCC GCC SPEC |
89220-48071 |
US $453.73 |
||
|
89221
|
89221
89220-48071 Computer, Multiplex Network Body[03.2010 - 03.2012] GGL15..GCC GCC SPEC |
89220-48071 |
US $453.73 |
||
|
89221
|
89221
89220-48080
Computer, Multiplex Network Body
[12.2008 - 02.2010] GGL15..GCC |
89220-48080 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48081
Computer, Multiplex Network Body
[12.2008 - 02.2010] GGL15..GCC |
89220-48081 |
— | ||
|
89221
|
89221
89220-48081
Computer, Multiplex Network Body
[03.2010 - 03.2012] GGL15..GCC |
89220-48081 |
— | ||
|
89221
|
89221
89220-48630
Computer, Multiplex Network Body
[08.2009 - 02.2010] GGL15..GCC EGYPT SPEC |
89220-48630 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48631
Computer, Multiplex Network Body
[08.2009 - 02.2010] GGL15..GCC EGYPT SPEC |
89220-48631 |
— | ||
|
89221
|
89221
89220-48631
Computer, Multiplex Network Body
[03.2010 - 08.2010] GGL15..GCC EGYPT SPEC |
89220-48631 |
— | ||
|
89221
|
89221
89220-48640
Computer, Multiplex Network Body
[08.2009 - 02.2010] GGL15..GCC MOROCCO SPEC |
89220-48640 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-48641
Computer, Multiplex Network Body
[08.2009 - 02.2010] GGL15..GCC MOROCCO SPEC |
89220-48641 |
— | ||
|
89221
|
89221
89220-48641
Computer, Multiplex Network Body
[03.2010 - 03.2012] GGL15..GCC MOROCCO SPEC |
89220-48641 |
— | ||
|
89221
|
89221
89220-48B00
Computer, Multiplex Network Body
[03.2012 - 08.2013] GGL15,GYL15..GCC |
89220-48B00 |
— | ||
|
89221
|
89221
89220-48B10
Computer, Multiplex Network Body
[03.2012 - 08.2013] GGL15,GYL15..GCC GCC SPEC |
89220-48B10 |
— | ||
|
89221
|
89221
89220-48L00
Computer, Multiplex Network Body
[03.2012 - 08.2013] GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
89220-48L00 |
— | ||
|
89221
|
89221
89220-48R00
Computer, Multiplex Network Body
[08.2013 - 03.2014] GGL15,GYL15..GCC |
89220-48R00 |
— | ||
|
89221
|
89221
89220-48R10
Computer, Multiplex Network Body
[08.2013 - 03.2014] GGL15,GYL15..GCC GCC SPEC |
89220-48R10 |
— | ||
|
89221
|
89221
89220-48V00
Computer, Multiplex Network Body
[08.2013 - 03.2014] GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
89220-48V00 |
— | ||
|
89221
|
89221
89220-48W60
Computer, Multiplex Network Body
[03.2014 -] GGL15,GYL15..GCC |
89220-48W60 |
— | ||
|
89221
|
89221
89220-48W70
Computer, Multiplex Network Body
[03.2014 -] GGL15,GYL15..GCC GCC SPEC |
89220-48W70 |
— | ||
|
89221
|
89221
89220-4D070
Computer, Multiplex Network Body
[03.2014 -] GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
89220-4D070 |
— | ||
|
89650
|
89650
89650-48090
Computer Assy, Power Steering
[12.2008 - 03.2012] GGL15..GCC; GGL15..LHD..EUR SUSPENSION-COIL SPRING |
89650-48090 |
— | ||
|
89650
|
89650
89650-48130
Computer Assy, Power Steering
[12.2008 - 03.2012] AGL10,GGL15..LHD..EUR; GGL15..GCC VERSION S |
89650-48130 |
— | ||
|
89650
|
89650
89650-48420
Computer Assy, Power Steering
[03.2012 -] GGL15..GCC; AGL10..LHD TAIWAN SPEC; AGL10..LHD CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT); AGL10..LHD BEIJING SPEC&AERO BUMPER(FRONT); GGL15..LHD..EUR SUSPENSION-COIL SPRING |
89650-48420 |
— | ||
|
89650
|
89650
89650-48430
Computer Assy, Power Steering
[03.2012 -] AGL10,GGL15..LHD..EUR; GGL15..GCC F SPORT |
89650-48430 |
— | ||
|
89681A
|
89681A
89690-48010
Computer, Power Management Control
[12.2008 - 08.2011] AGL10..LHD;GGL15..GCC |
89690-48010 |
— | ||
|
89681A
|
89681A
89690-48150
Computer, Power Management Control
[03.2012 -] AGL10..LHD;GGL15..GCC |
89690-48150 |
— | ||
|
89681A
|
89681A
89690-48210
Computer, Power Management Control
[08.2011 - 03.2012] AGL10..LHD;GGL15..GCC |
89690-48210 |
— | ||
|
89815
|
89815
89815-30120 Computer, Seat Belt ControlSEAT BELT CONTROL [12.2008 - 07.2010] GGL15,GYL1# PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GGL15,GYL15..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA) |
89815-30120 |
US $754.21 |
||
|
89815
|
89815
89815-76010 Computer, Seat Belt Control[08.2010 - 03.2012] GGL15,GYL1# PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GGL15,GYL15..EUR PRE-COLLISION SYSTEM-WITH(*PSB & *PBA) |
89815-76010 |
US $569.30 |
||
|
89940
|
89940
89940-48230
Computer Assy, Headlamp Swivel
[12.2008 - 03.2012] AGL10,GGL15..LHD HEADLAMP-DISCHARGE & AFS |
89940-48230 |
— | ||
|
89940
|
89940
89940-48240
Computer Assy, Headlamp Swivel
[12.2008 - 03.2012] AGL10,GGL15..LHD |
89940-48240 |
— | ||
|
89940
|
89940
89940-48370
Computer Assy, Headlamp Swivel
[03.2012 -] AGL10,GGL15,GYL1#..LHD HEADLAMP-DISCHARGE & AFS |
89940-48370 |
— | ||
|
89940
|
89940
89940-48380
Computer Assy, Headlamp Swivel
[03.2012 -] GGL15..LHD;GYL15..GCC; AGL10..LHD HEADLAMP-DISCHARGE |
89940-48380 |
— | ||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
8271548B30
|
8271548B30
82715-48B30
Bracket,wiring Harness Clamp
|
82715-48B30 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9017806001
|
9017806001
90178-06001 New Genuine Part |
90178-06001 |
US $0.52 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
