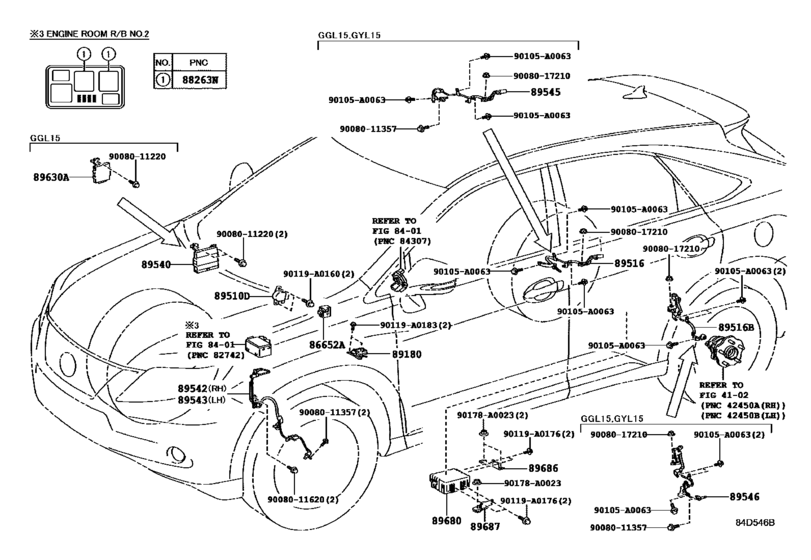

Abs & Vsc ([04.2012 - ] (1204- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89180
|
89180
89180-48080 Sensor Assy, YawrateYAWRATE [07.2012 -] GYL1#..NAP;GGL15..NAP..8FC |
89180-48080 |
US $1,014.83 |
||
|
89542
|
89542
89542-0E020
Sensor, Speed, Front Rh
[04.2012 -] GGL1#,GYL1#..NAP |
89542-0E020 |
— | ||
| replacement | |||||
|
89542
|
89542
89542-0E080
Sensor, Speed, Front Rh
[04.2012 -] GGL1#,GYL1#..NAP |
89542-0E080 |
— | ||
|
89543
|
89543
89543-0E020
Sensor, Speed, Front Lh
[04.2012 -] GGL1#,GYL1#..NAP |
89543-0E020 |
— | ||
| replacement | |||||
|
89543
|
89543
89543-0E080
Sensor, Speed, Front Lh
[04.2012 -] GGL1#,GYL1#..NAP |
89543-0E080 |
— | ||
|
89545
|
89545
89545-0E020
Sensor, Speed, Rear Rh
[04.2012 - 10.2015] GGL15,GYL15..NAP |
89545-0E020 |
— | ||
|
89546
|
89546
89546-0E020
Sensor, Speed, Rear Lh
[04.2012 -] GGL15,GYL15..NAP |
89546-0E020 |
— | ||
|
89630A
|
89630A
89630-48010 Computer Assy, 4Wd4WD [04.2012 -] GGL15..NAP |
89630-48010 |
from US $873.60 |
||
|
90105A0063
|
90105A0063
90105-A0063 BOLT FLANGE |
90105-A0063 |
US $0.73 |
||
|
90119A0160
|
90119A0160
90119-A0160
New Genuine Part
|
90119-A0160 |
— | ||
|
90119A0176
|
90119A0176
90119-A0176
New Genuine Part
|
90119-A0176 |
— | ||
|
90119A0183
|
90119A0183
90119-A0183
Bolt (For Transmission Control Cable Bracket)
|
90119-A0183 |
— | ||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.83 |
||
|
9008011357
|
9008011357
90080-11357
New Genuine Part
|
90080-11357 |
— | ||
|
9008011620
|
9008011620
90080-11620
New Genuine Part
|
90080-11620 |
— | ||
|
9008017210
|
9008017210
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
