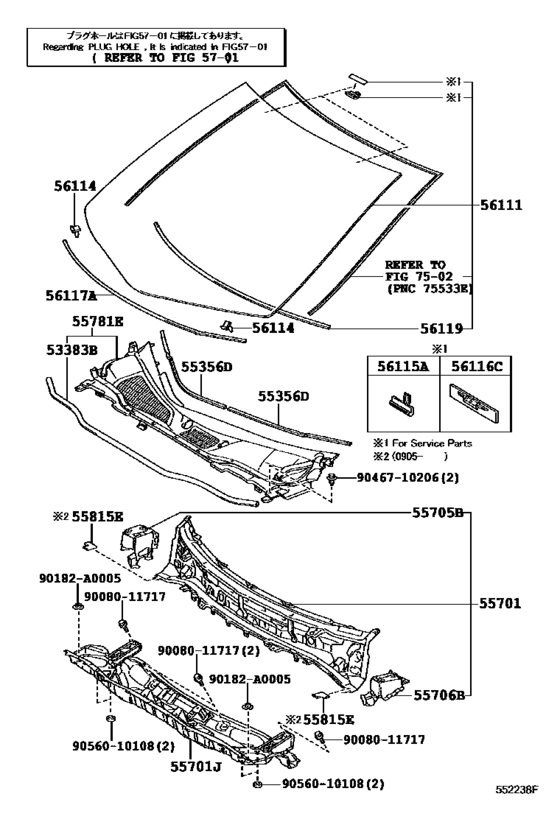

Cowl Panel & Windshield Glass ([01.2009 - ] (0901- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-0E020
Seal, Hood To Cowl Top
[04.2012 -] GGL1#,GYL1#..NAP |
53383-0E020 |
— | ||
|
55356D
|
55356D
55356-0E010
Cushion, Instrument Panel, No.2
[04.2012 -] GGL1#,GYL1#..NAP |
55356-0E010 |
— | ||
|
55701
|
55701
55700-0E021
Panel Sub-Assy, Cowl
[04.2012 -] GGL1#,GYL1#..NAP |
55700-0E021 |
— | ||
|
55701J
|
55701J
55701-0E030
Panel Sub-Assy, Cowl Top, Outer
[04.2012 -] GGL1#..NAP |
55701-0E030 |
— | ||
|
55705B
|
55705B
55705-0E020
Panel Sub-Assy, Cowl Top Side, Rh
[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
55705-0E020 |
— | ||
|
55706B
|
55706B
55706-0E020
Panel Sub-Assy, Cowl Top Side, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
55706-0E020 |
— | ||
|
55781E
|
55781E
55708-0E030
Louver Sub-Assy, Cowl Top Ventilator
[04.2012 - 04.2013] GGL1#..NAP |
55708-0E030 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-0E031
Louver Sub-Assy, Cowl Top Ventilator
[04.2012 - 04.2013] GGL1#..NAP |
55708-0E031 |
— | ||
|
55781E
|
55781E
55708-0E031
Louver Sub-Assy, Cowl Top Ventilator
[05.2013 -] GGL1#,GYL1#..NAP |
55708-0E031 |
— | ||
|
55781E
|
55781E
55708-0E040
Louver Sub-Assy, Cowl Top Ventilator
[04.2012 - 04.2013] GGL15..NAP CANADA SPEC |
55708-0E040 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-0E041
Louver Sub-Assy, Cowl Top Ventilator
[04.2012 - 04.2013] GGL15..NAP CANADA SPEC |
55708-0E041 |
— | ||
|
55781E
|
55781E
55708-0E041
Louver Sub-Assy, Cowl Top Ventilator
[05.2013 -] GGL15,GYL15..NAP CANADA SPEC |
55708-0E041 |
— | ||
|
55815E
|
55815E
55815-0E010
Seal, Front Ventilator, No.1
[04.2012 -] GGL1#,GYL1#..NAP |
55815-0E010 |
— | ||
|
56111
|
56111
56101-0E091
Glass, Windshield
[04.2012 - 02.2015] GGL15,GYL15..NAP *EHL,T=5.36,GREEN,CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-0E091 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0E092
Glass, Windshield
[04.2012 - 02.2015] GGL15,GYL15..NAP *EHL,T=5.36,GREEN,CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-0E092 |
— | ||
|
56111
|
56111
56101-0E092
Glass, Windshield
[03.2015 -] GGL15,GYL15..NAP CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-0E092 |
— | ||
|
56111
|
56111
56101-0E101
Glass, Windshield
[04.2012 -] GGL1#,GYL1#..NAP *LAM,T=5.36,GREEN |
56101-0E101 |
— | ||
|
56111
|
56111
56101-0E111
Glass, Windshield
[04.2012 - 02.2015] GGL1#,GYL1#..NAP *LAM,T=5.36,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-0E111 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0E112
Glass, Windshield
[04.2012 - 02.2015] GGL1#,GYL1#..NAP *LAM,T=5.36,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-0E112 |
— | ||
|
56111
|
56111
56101-0E112
Glass, Windshield
[03.2015 -] GGL1#,GYL1#..NAP INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-0E112 |
— | ||
|
56111
|
56111
56101-0E180
Glass, Windshield
[04.2012 - 02.2015] GGL15,GYL15..NAP *EHL,T=5.36,GREEN,CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY -WITH |
56101-0E180 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0E181
Glass, Windshield
[04.2012 - 02.2015] GGL15,GYL15..NAP *EHL,T=5.36,GREEN,CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY -WITH |
56101-0E181 |
— | ||
|
56111
|
56111
56101-0E181
Glass, Windshield
[03.2015 -] GGL15,GYL15..NAP CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH |
56101-0E181 |
— | ||
|
56111
|
56111
56101-0E190
Glass, Windshield
[04.2012 -] GGL1#,GYL15..NAP *LAM,T=5.36,GREEN,HEAD UP DISPLAY-WITH |
56101-0E190 |
— | ||
|
56111
|
56111
56101-0E200
Glass, Windshield
[04.2012 - 02.2015] GGL1#,GYL15..NAP *LAM,T=5.36,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH |
56101-0E200 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0E201
Glass, Windshield
[04.2012 - 02.2015] GGL1#,GYL15..NAP *LAM,T=5.36,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH |
56101-0E201 |
— | ||
|
56111
|
56111
56101-0E201
Glass, Windshield
[03.2015 -] GGL1#,GYL15..NAP INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH |
56101-0E201 |
— | ||
|
56114
|
56114
56114-22050 Retainer, Windshield Glass[04.2012 -] GGL1#,GYL1#..NAP |
56114-22050 |
from US $3.96 |
||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[04.2012 -] GGL1#,GYL1#..NAP |
56115-22010 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[04.2012 -] GGL1#,GYL1#..NAP |
56116-22050 |
from US $1.44 |
||
|
56117A
|
56117A
56117-50140 Dam Kit, Back Window Glass[04.2012 -] GGL1#,GYL1#..NAP *D,L=1439; GGL15,GYL15..NAP *D,L=1439,CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR); GGL15,GYL15..NAP *D,L=1439,CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH; GGL1#,GYL1#..NAP *D,L=1439,INTERMITTENT |
56117-50140 |
from US $11.17 |
||
|
56119
|
56119
56119-0E010
Seal, Windshield Glass
[04.2012 -] GGL1#,GYL1#..NAP |
56119-0E010 |
— | ||
|
90182A0005
|
90182A0005
90182-A0005
New Genuine Part
|
90182-A0005 |
— | ||
|
9008011717
|
9008011717
90080-11717
New Genuine Part
|
90080-11717 |
— | ||
|
9046710206
|
9046710206
90467-10206 Clip, Front Fender Liner, No.3 |
90467-10206 |
from US $1.13 |
||
|
9056010108
|
9056010108
90560-10108 SPACER |
90560-10108 |
US $1.60 |
||
