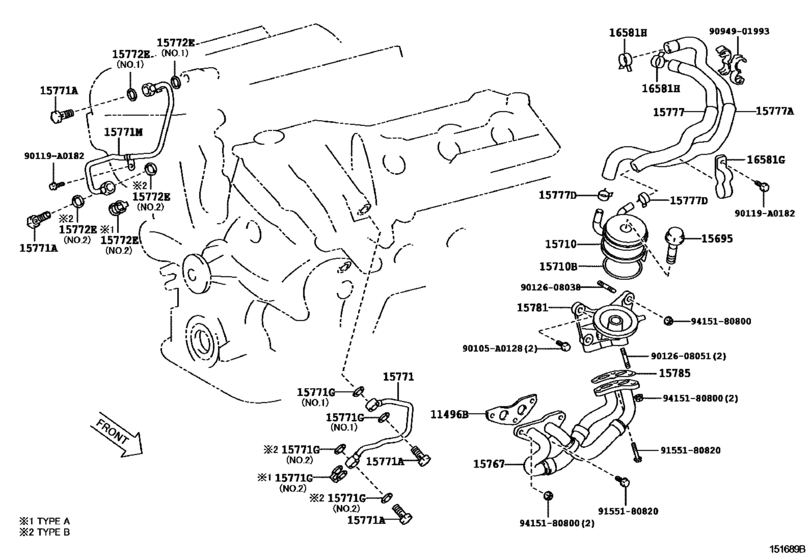

Engine Oil Cooler ([01.2009 - ] W(OIL COOLER) (0901- )2GRFE) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11496B
|
11496B
11496-31010 Gasket, Oil Hole CoverOIL HOLE COVER [07.2012 -] 2GRFE..GGL15..NAP..8FC |
11496-31010 |
from US $2.11 |
||
|
15695
|
15695
15695-31010 Bolt, Oil Cooler UnionOIL COOLER UNION [07.2012 -] 2GRFE..GGL15..NAP..8FC |
15695-31010 |
US $13.83 |
||
|
15710
|
15710
15710-31021 Cooler Assy, OilOIL [07.2012 -] 2GRFE..GGL15..NAP..8FC |
15710-31021 |
US $500.62 |
||
|
15710B
|
15710B
90301-67004 Ring, O(For Oil Thermostat Housing)[07.2012 -] 2GRFE..GGL15..NAP..8FC |
90301-67004 |
from US $3.20 |
||
|
15767
|
15767
15767-31020 Pipe, Oil Cooler[07.2012 -] 2GRFE..GGL15..NAP..8FC |
15767-31020 |
from US $72.11 |
||
|
15771
|
15771
15771-31010 Pipe, Oil, No.1[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
15771-31010 |
from US $25.33 |
||
|
15771A
|
15771A
90401-16043 Union(For Oil Pipe)[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
90401-16043 |
from US $6.45 |
||
|
15771G
|
15771G
90430-16016 Gasket[04.2012 -] 2GRFE..GGL1#..NAP NO.2,TYPE A |
90430-16016 |
from US $0.78 |
||
|
15771G
|
15771G
90430-16017 Gasket[04.2012 -] 2GR#..GGL1#,GYL1#..NAP NO.1 |
90430-16017 |
from US $0.76 |
||
|
15771M
|
15771M
15772-31030 Pipe, Oil[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
15772-31030 |
from US $17.14 |
||
|
15772E
|
15772E
90430-16016 Gasket[04.2012 -] 2GRFE..GGL1#..NAP NO.2,TYPE A |
90430-16016 |
from US $0.78 |
||
|
15772E
|
15772E
90430-16017 Gasket[04.2012 -] 2GR#..GGL1#,GYL1#..NAP NO.1 |
90430-16017 |
from US $0.76 |
||
|
15777
|
15777
16281-31030 Hose, Oil CoolerOIL COOLER [07.2012 -] 2GRFE..GGL15..NAP..8FC |
16281-31030 |
from US $16.07 |
||
|
15777A
|
15777A
16282-31050
Hose, Oil Cooler
[07.2012 -] 2GRFE..GGL15..NAP..8FC TYPE B:REFER ILLUST. |
16282-31050 |
— | ||
|
15777D
|
15777D
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[07.2012 -] 2GRFE..GGL15..NAP..8FC |
96136-42101 |
from US $2.93 |
||
|
15781
|
15781
15781-31010 Bracket, Oil Cooler, No.1OIL COOLER, NO.1 [07.2012 -] 2GRFE..GGL15..NAP..8FC |
15781-31010 |
US $82.99 |
||
|
15785
|
15785
15785-31010 Gasket, Oil CoolerOIL COOLER [07.2012 -] 2GRFE..GGL15..NAP..8FC |
15785-31010 |
from US $2.57 |
||
|
16581G
|
16581G
16581-31020 Clamp, Hose(For Oil Cooler Hose)HOSE(FOR OIL COOLER HOSE) [07.2012 -] 2GRFE..GGL15..NAP..8FC |
16581-31020 |
US $18.32 |
||
|
16581H
|
16581H
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[07.2012 -] 2GRFE..GGL15..NAP..8FC |
96136-42101 |
from US $2.93 |
||
|
90105A0128
|
90105A0128
90105-A0128
New Genuine Part
|
90105-A0128 |
— | ||
|
90119A0182
|
90119A0182
90119-A0182
New Genuine Part
|
90119-A0182 |
— | ||
|
9012608038
|
9012608038
90126-08038 New Genuine Part |
90126-08038 |
US $3.76 |
||
|
9012608051
|
9012608051
90126-08051 Bolt, Stud(For Oil Pan) |
90126-08051 |
US $1.02 |
||
|
9094901993
|
9094901993
90949-01993 Clamp, Automatic Transmission Oil Cooler Tube, No.1 |
90949-01993 |
US $5.38 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
