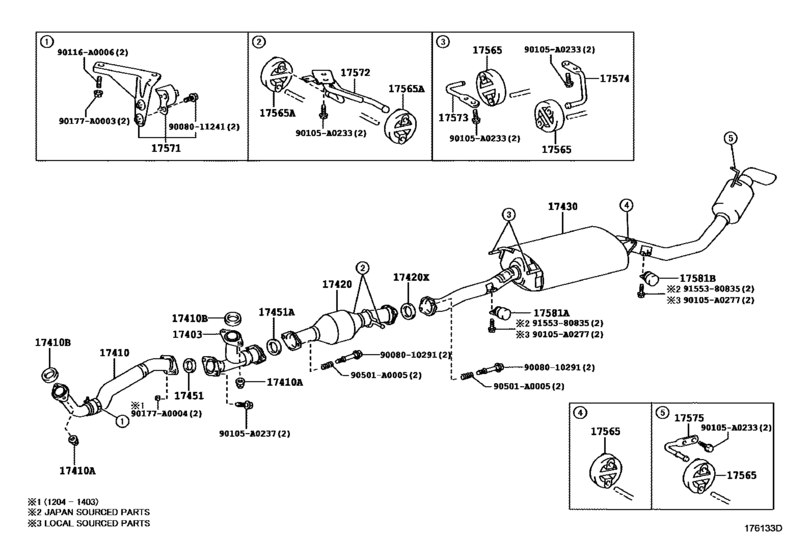

Exhaust Pipe ([01.2009 - ] (0901- )2GRFE) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17403
|
17403
17403-0P070
Pipe Sub-Assy, Exhaust, Front No.3
[04.2012 - 10.2015] 2GRFE..GGL1#..NAP |
17403-0P070 |
— | ||
|
17410
|
17410
17410-0P230
Pipe Assy, Exhaust, Front
[04.2012 - 03.2014] 2GRFE..GGL1#..NAP |
17410-0P230 |
— | ||
|
17410
|
17410
17410-0P500
Pipe Assy, Exhaust, Front
[03.2014 -] 2GRFE..GGL1#..NAP |
17410-0P500 |
— | ||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
90080-17187 |
US $44.70 |
||
| replacement | |||||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
90179-10070 |
from US $1.37 |
||
|
17410B
|
17410B
90080-43036
Gasket, Exhaust Pipe
[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
90080-43036 |
— | ||
|
17420
|
17420
17420-0P290
Pipe Assy, Exhaust, Center
[04.2012 -] 2GRFE..GGL1#..NAP |
17420-0P290 |
— | ||
|
17420X
|
17420X
17451-0D140
Gasket, Exhaust Pipe
[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
17451-0D140 |
— | ||
|
17430
|
17430
17430-0P180
Pipe Assy, Exhaust, Tail
[04.2012 - 02.2013] 2GRFE..GGL1#..NAP |
17430-0P180 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-0P181
Pipe Assy, Exhaust, Tail
[04.2012 - 02.2013] 2GRFE..GGL1#..NAP |
17430-0P181 |
— | ||
|
17430
|
17430
17430-0P181
Pipe Assy, Exhaust, Tail
[02.2013 -] 2GRFE..GGL1#..NAP |
17430-0P181 |
— | ||
|
17451
|
17451
90080-43036
Gasket, Exhaust Pipe
[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
90080-43036 |
— | ||
|
17451A
|
17451A
17451-0D140
Gasket, Exhaust Pipe
[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
17451-0D140 |
— | ||
|
17565
|
17565
17565-0S011
Support,exhaust Pipe, No.4
[04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
17565-0S011 |
— | ||
|
17565A
|
17565A
17565-0P031
Support, Exhaust Pipe, No.1
[04.2012 -] 2GRFE..GGL1#..NAP |
17565-0P031 |
— | ||
|
17571
|
17571
17571-0P141
Bracket, Exhaust Pipe Support, No.1
[03.2014 -] 2GRFE..GGL1#..NAP |
17571-0P141 |
— | ||
|
17571
|
17571
17571-31220 Bracket, Exhaust Pipe Support, No.1EXHAUST PIPE SUPPORT, NO.1 [04.2012 - 03.2014] 2GRFE..GGL1#..NAP |
17571-31220 |
US $19.22 |
||
|
17572
|
17572
17572-31090 Bracket, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [04.2012 -] 2GRFE..GGL1#..NAP |
17572-31090 |
US $26.50 |
||
|
17573
|
17573
17573-31030 Bracket, Exhaust Pipe No.1 Support, LowerEXHAUST PIPE NO.1 SUPPORT, LOWER [04.2012 -] 2GRFE..GGL1#..NAP |
17573-31030 |
US $8.88 |
||
|
17574
|
17574
17574-31110 Bracket, Exhaust Pipe Support, No.4EXHAUST PIPE SUPPORT, NO.4 [04.2012 -] 2GRFE..GGL1#..NAP |
17574-31110 |
US $8.88 |
||
|
17575
|
17575
17575-31120 Bracket, Exhaust Pipe Support, No.5EXHAUST PIPE SUPPORT, NO.5 [04.2012 -] 2GR#..GGL1#,GYL1#..NAP |
17575-31120 |
US $10.34 |
||
|
17581A
|
17581A
17581-74080 Damper, Exhaust Pipe[04.2012 -] 2GRFE..GGL1#..NAP |
17581-74080 |
US $21.99 |
||
|
17581B
|
17581B
17581-50090 Damper, Exhaust Pipe[04.2012 -] 2GRFE..GGL1#..NAP |
17581-50090 |
from US $18.95 |
||
|
90105A0233
|
90105A0233
90105-A0233
New Genuine Part
|
90105-A0233 |
— | ||
|
90105A0237
|
90105A0237
90105-A0237
New Genuine Part
|
90105-A0237 |
— | ||
|
90105A0277
|
90105A0277
90105-A0277
New Genuine Part
|
90105-A0277 |
— | ||
|
90116A0006
|
90116A0006
90116-A0006
New Genuine Part
|
90116-A0006 |
— | ||
|
90177A0003
|
90177A0003
90177-A0003
New Genuine Part
|
90177-A0003 |
— | ||
|
90177A0004
|
90177A0004
90177-A0004
New Genuine Part
|
90177-A0004 |
— | ||
|
90501A0005
|
90501A0005
90501-A0005
New Genuine Part
|
90501-A0005 |
— | ||
|
9008010291
|
9008010291
90080-10291
New Genuine Part
|
90080-10291 |
— | ||
|
9008011241
|
9008011241
90080-11241
New Genuine Part
|
90080-11241 |
— | ||
|
9155380835
|
9155380835
91553-80835 New Genuine Part |
91553-80835 |
US $1.43 |
||
