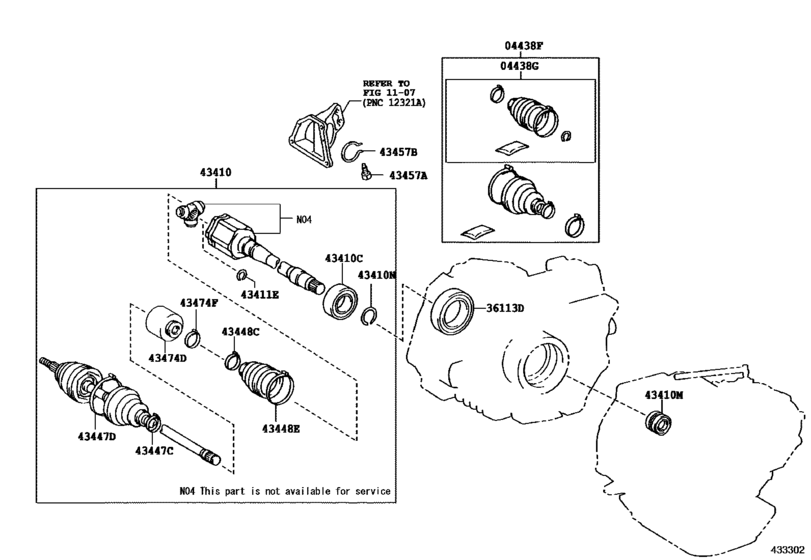

Front Drive Shaft ([01.2009 - ] RH (0901- )GGL15) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04428-0E060 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [04.2012 -] GGL15..NAP |
04428-0E060 |
US $136.81 |
||
|
04438G
|
04438G
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [04.2012 -] GGL1#,GYL1#..NAP |
04438-08130 |
from US $74.22 |
||
|
36113D
|
36113D
90311-36006 Seal, Oil (For Transfer Case Rh)[04.2012 - 10.2015] GGL15..NAP |
90311-36006 |
from US $8.96 |
||
|
43410
|
43410
43410-0W340 Shaft Assy, Front Drive, Rh[04.2012 - 10.2015] GGL15..NAP |
43410-0W340 |
US $1,255.49 |
||
|
43410C
|
43410C
90363-A0007
Bearing (For Front Drive Shaft)
[04.2012 -] GGL15..NAP |
90363-A0007 |
— | ||
|
43410M
|
43410M
90316-34001 Oil Seal, Front Drive Shaft, Rh[04.2012 - 10.2015] GGL15..NAP |
90316-34001 |
from US $8.06 |
||
|
43410N
|
43410N
90080-52054 Ring, Hole Snap (For Front Drive Shaft Rh)[04.2012 -] GGL15..NAP |
90080-52054 |
US $1.05 |
||
|
43411E
|
43411E
43425-08040 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[04.2012 -] GGL1#,GYL1#..NAP |
43425-08040 |
US $0.44 |
||
|
43447C
|
43447C
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[04.2012 -] GGL1#,GYL1#..NAP |
42345-04030 |
US $2.48 |
||
|
43447D
|
43447D
42345-06250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) [04.2012 -] GGL1#,GYL1#..NAP |
42345-06250 |
US $8.01 |
||
|
43448C
|
43448C
42345-08070 Clamp (For Front Axle Inboard Joint Boot Rh)[04.2012 -] GGL1#,GYL1#..NAP |
42345-08070 |
US $3.49 |
||
|
43448E
|
43448E
42345-06240 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [04.2012 -] GGL1#,GYL1#..NAP |
42345-06240 |
US $4.22 |
||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[04.2012 -] GGL15..NAP *10-1.25PX28.5-14.8 |
90901-19060 |
from US $2.28 |
||
|
43457B
|
43457B
90521-73001 Ring, Hole Snap (For Drive Shaft Bearing Bracket)HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) [04.2012 -] GGL15..NAP |
90521-73001 |
US $1.60 |
