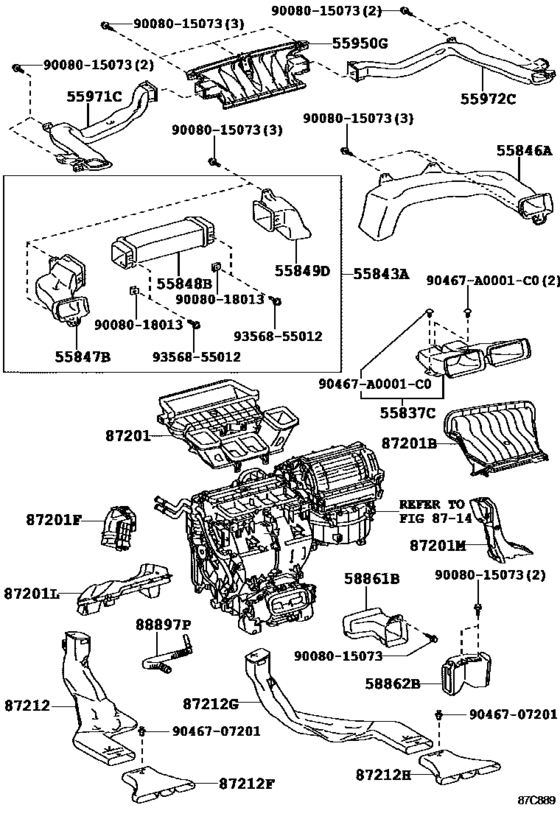

Heating & Air Conditioning - Control & Air Duct ([04.2012 - ] AIR DUCT W(HEAD UP DISPLAY) (1204- )GGL1#,GYL15) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55837C
|
55837C
55837-0E020
Duct, Heater To Register Center Sub
[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
55837-0E020 |
— | ||
|
55843A
|
55843A
55843-0E020
Duct, Heater To Register, No.1
[04.2012 -] GGL1#,GYL1#..NAP |
55843-0E020 |
— | ||
|
55843A
|
55843A
55843-0E050
Duct, Heater To Register, No.1
[04.2012 -] GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
55843-0E050 |
— | ||
|
55846A
|
55846A
55846-0E020
Duct, Heater To Register, No.4
[04.2012 -] GGL1#,GYL1#..NAP |
55846-0E020 |
— | ||
|
55847B
|
55847B
55847-0E010
Duct, Heater To Register, No.5
[04.2012 -] GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
55847-0E010 |
— | ||
|
55848B
|
55848B
55848-0E010
Duct, Heater To Register, No.6
[04.2012 -] GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
55848-0E010 |
— | ||
|
55849D
|
55849D
55849-0E010
Duct, Heater To Register, No.7
[04.2012 -] GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
55849-0E010 |
— | ||
|
55950G
|
55950G
55950-0E020
Nozzle Assy, Defroster
[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
55950-0E020 |
— | ||
|
55971C
|
55971C
55971-0E020
Duct, Side Defroster Nozzle, No.1
[04.2012 -] GGL1#,GYL1#..NAP |
55971-0E020 |
— | ||
|
55972C
|
55972C
55972-0E020
Duct, Side Defroster Nozzle, No.2
[04.2012 -] GGL1#,GYL1#..NAP |
55972-0E020 |
— | ||
|
58861B
|
58861B
58861-0E020
Duct, Console Box, No.1
[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
58861-0E020 |
— | ||
|
58862B
|
58862B
58862-0E050
Duct, Console Box, No.2
[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
58862-0E050 |
— | ||
|
87201
|
87201
87201-0E040
Duct Sub-Assy, Air, No.1
[04.2012 -] GGL1#,GYL1#..NAP |
87201-0E040 |
— | ||
|
87201B
|
87201B
87201-0E020
Duct Sub-Assy, Air, No.2
[04.2012 -] GGL1#..NAP |
87201-0E020 |
— | ||
|
87201F
|
87201F
87211-0E030
Duct Sub-Assy, Air, No.3
[04.2012 -] GGL1#,GYL1#..NAP |
87211-0E030 |
— | ||
|
87201L
|
87201L
87211-0E040
Duct Sub-Assy, Air, No.4
[04.2012 -] GGL1#,GYL1#..NAP |
87211-0E040 |
— | ||
|
87201M
|
87201M
87201-0E160
Duct Sub-Assy, Air, No.5
[04.2012 -] GGL1#,GYL1#..NAP |
87201-0E160 |
— | ||
|
87212
|
87212
87213-0E020
Duct, Air, Rear No.1
[04.2012 -] GGL1#,GYL1#..NAP |
87213-0E020 |
— | ||
|
87212F
|
87212F
87218-0E010
Duct, Air, Rear No.2
[04.2012 -] GGL1#,GYL1#..NAP |
87218-0E010 |
— | ||
|
87212G
|
87212G
87212-0E020
Duct, Air, Rear No.3
[04.2012 -] GGL1#,GYL1#..NAP |
87212-0E020 |
— | ||
|
87212H
|
87212H
87217-0E010
Duct, Air, Rear No.4
[04.2012 -] GGL1#,GYL1#..NAP |
87217-0E010 |
— | ||
|
88897P
|
88897P
87201-0E050
Aspirator
[04.2012 -] GGL1#,GYL1#..NAP |
87201-0E050 |
— | ||
|
90467A0001C0
|
90467A0001C0
90467-A0001-C0 Clip, Heater To Register DuctHEATER TO REGISTER DUCT |
90467-A0001-C0 |
US $1.02 |
||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9008018013
|
9008018013
90080-18013
New Genuine Part
|
90080-18013 |
— | ||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $1.09 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
