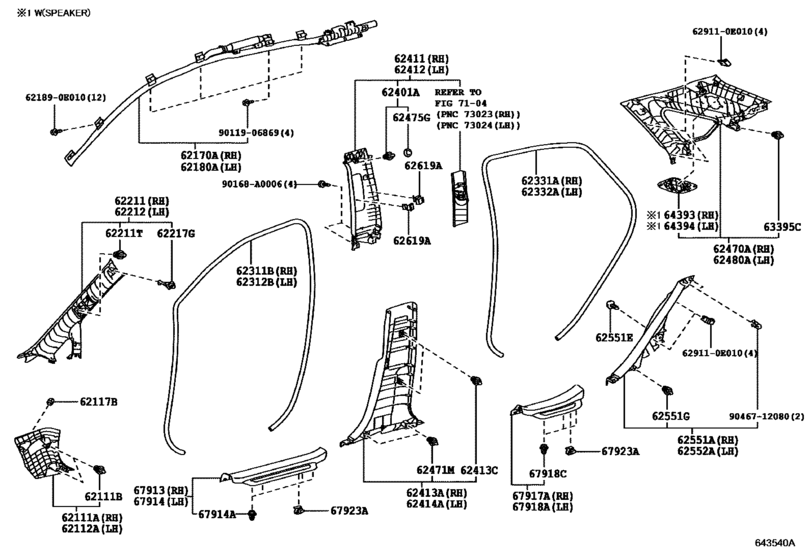

Inside Trim Board & Door Opening Trim Moulding ([03.2014 - ] (1403- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111A
|
62111A
62101-0E020-A0
Trim Sub-Assy, Cowl Side, Rh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
62101-0E020-A0 |
— | ||
|
62111A
|
62111A
62101-0E020-C0
Trim Sub-Assy, Cowl Side, Rh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
62101-0E020-C0 |
— | ||
|
62111B
|
62111B
90467-A0006 Clip(For Front Fender Seal)[04.2012 -] GGL1#,GYL1#..NAP |
90467-A0006 |
US $1.43 |
||
|
62112A
|
62112A
62102-0E020-A0
Trim Sub-Assy, Cowl Side, Lh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
62102-0E020-A0 |
— | ||
|
62112A
|
62112A
62102-0E020-C0
Trim Sub-Assy, Cowl Side, Lh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
62102-0E020-C0 |
— | ||
|
62117B
|
62117B
90467-06147 Clip(For Cowl Side Trim)[04.2012 -] GGL1#,GYL1#..NAP |
90467-06147 |
from US $0.94 |
||
|
62170A
|
62170A
62170-0E060
Air Bag Assy, Curtain Shield, Rh
[04.2012 - 03.2014] GGL1#..NAP |
62170-0E060 |
— | ||
|
62170A
|
62170A
62170-0E080
Air Bag Assy, Curtain Shield, Rh
[03.2014 -] GGL1#,GYL1#..NAP |
62170-0E080 |
— | ||
|
62180A
|
62180A
62180-0E060
Air Bag Assy, Curtain Shield, Lh
[04.2012 - 03.2014] GGL1#..NAP |
62180-0E060 |
— | ||
|
62180A
|
62180A
62180-0E080
Air Bag Assy, Curtain Shield, Lh
[03.2014 -] GGL1#,GYL1#..NAP |
62180-0E080 |
— | ||
|
62211
|
62211
62210-0E020-C0
Garnish, Front Pillar, Rh
[07.2012 - 10.2013] GGL15..NAP..8FC BLACK,TRIM2# |
62210-0E020-C0 |
— | ||
|
62211
|
62211
62210-0E081-C0
Garnish, Front Pillar, Rh
[10.2013 - 06.2014] GGL15..NAP..8FC BLACK,TRIM2#,3# |
62210-0E081-C0 |
— | ||
|
62211
|
62211
62210-0E082-C0
Garnish, Front Pillar, Rh
[06.2014 -] GGL15..NAP..8FC BLACK,TRIM2#,3# |
62210-0E082-C0 |
— | ||
|
62211T
|
62211T
90467-10188 Clip(For Deck Boad)[04.2012 -] GGL1#,GYL1#..NAP |
90467-10188 |
from US $0.90 |
||
|
62212
|
62212
62220-0E020-C0
Garnish, Front Pillar, Lh
[07.2012 - 10.2013] GGL15..NAP..8FC BLACK,TRIM2# |
62220-0E020-C0 |
— | ||
|
62212
|
62212
62220-0E081-C0
Garnish, Front Pillar, Lh
[10.2013 - 06.2014] GGL15..NAP..8FC BLACK,TRIM2#,3# |
62220-0E081-C0 |
— | ||
|
62212
|
62212
62220-0E082-C0
Garnish, Front Pillar, Lh
[06.2014 -] GGL15..NAP..8FC BLACK,TRIM2#,3# |
62220-0E082-C0 |
— | ||
|
62217G
|
62217G
62217-48030 Clip(For Front Body Pillar Garnish)[10.2013 -] GGL1#..NAP |
62217-48030 |
US $3.23 |
||
|
62217G
|
62217G
90950-08005 Clip(For Front Body Pillar Garnish)[04.2012 - 10.2013] GGL1#..NAP |
90950-08005 |
from US $4.12 |
||
|
62311B
|
62311B
62311-0E020
Weatherstrip, Front Door Opening Trim, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
62311-0E020 |
— | ||
|
62312B
|
62312B
62312-0E020
Weatherstrip, Front Door Opening Trim, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
62312-0E020 |
— | ||
|
62331A
|
62331A
62331-0E020
Weatherstrip, Rear Door Opening Trim, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
62331-0E020 |
— | ||
|
62332A
|
62332A
62332-0E020
Weatherstrip, Rear Door Opening Trim, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
62332-0E020 |
— | ||
|
62401A
|
62401A
62707-48010 Clip, Center Piller GarnishUPPER) [04.2012 -] GGL1#,GYL1#..NAP |
62707-48010 |
from US $2.04 |
||
|
62411
|
62411
62410-0E020-A0
Garnish, Center Pillar, Rh
[04.2012 - 10.2013] GGL1#..NAP IVORY,TRIM0# |
62410-0E020-A0 |
— | ||
|
62411
|
62411
62410-0E020-B0
Garnish, Center Pillar, Rh
[07.2012 - 10.2013] GGL1#..NAP LT.GRAY,TRIM1#,20,3#,4# |
62410-0E020-B0 |
— | ||
|
62411
|
62411
62410-0E020-C0
Garnish, Center Pillar, Rh
[07.2012 - 10.2013] GGL1#..NAP..6FC BLACK,TRIM21; GGL15..NAP..8FC BLACK,TRIM21,22 |
62410-0E020-C0 |
— | ||
|
62411
|
62411
62410-0E080-C0
Garnish, Center Pillar, Rh
[10.2013 -] GGL15..NAP..8FC BLACK,TRIM2#,3# |
62410-0E080-C0 |
— | ||
|
62412
|
62412
62420-0E020-A0
Garnish, Center Pillar, Lh
[04.2012 - 10.2013] GGL1#..NAP IVORY,TRIM0# |
62420-0E020-A0 |
— | ||
|
62412
|
62412
62420-0E020-B0
Garnish, Center Pillar, Lh
[07.2012 - 10.2013] GGL1#..NAP LT.GRAY,TRIM1#,20,3#,4# |
62420-0E020-B0 |
— | ||
|
62412
|
62412
62420-0E020-C0
Garnish, Center Pillar, Lh
[07.2012 - 10.2013] GGL1#..NAP..6FC BLACK,TRIM21; GGL15..NAP..8FC BLACK,TRIM21,22 |
62420-0E020-C0 |
— | ||
|
62412
|
62412
62420-0E080-C0
Garnish, Center Pillar, Lh
[10.2013 -] GGL15..NAP..8FC BLACK,TRIM2#,3# |
62420-0E080-C0 |
— | ||
|
62413A
|
62413A
62413-0E020-A0
Garnish, Center Pillar, Lower Rh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
62413-0E020-A0 |
— | ||
|
62413A
|
62413A
62413-0E020-C0
Garnish, Center Pillar, Lower Rh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
62413-0E020-C0 |
— | ||
|
62413C
|
62413C
90467-A0006 Clip(For Front Fender Seal)[04.2012 -] GGL1#,GYL1#..NAP |
90467-A0006 |
US $1.43 |
||
|
62414A
|
62414A
62414-0E020-A0
Garnish, Center Pillar, Lower Lh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
62414-0E020-A0 |
— | ||
|
62414A
|
62414A
62414-0E020-C0
Garnish, Center Pillar, Lower Lh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
62414-0E020-C0 |
— | ||
|
62470A
|
62470A
62470-0E070-A0
Garnish Assy, Roof Side, Inner Rh
[07.2012 -] GYL1#..NAP;GGL15..NAP..8FC IVORY,TRIM0# |
62470-0E070-A0 |
— | ||
|
62470A
|
62470A
62470-0E070-B0
Garnish Assy, Roof Side, Inner Rh
[07.2012 -] GGL1#..NAP..6FC LT.GRAY,TRIM1#,20,3#,40; GGL15..NAP..8FC LT.GRAY,TRIM1#,20,30,4# |
62470-0E070-B0 |
— | ||
|
62470A
|
62470A
62470-0E070-C0
Garnish Assy, Roof Side, Inner Rh
[07.2012 -] GGL1#..NAP..6FC BLACK,TRIM21; GGL15..NAP..8FC BLACK,TRIM21,22,31,32 |
62470-0E070-C0 |
— | ||
|
62470A
|
62470A
62470-0E080-A1
Garnish Assy, Roof Side, Inner Rh
[07.2012 -] GYL1#..NAP;GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0# |
62470-0E080-A1 |
— | ||
|
62470A
|
62470A
62470-0E080-B1
Garnish Assy, Roof Side, Inner Rh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4# |
62470-0E080-B1 |
— | ||
|
62470A
|
62470A
62470-0E080-C0
Garnish Assy, Roof Side, Inner Rh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32 |
62470-0E080-C0 |
— | ||
|
62471M
|
62471M
90467-10167 Clip(For Rear Floor Finish Plate)[04.2012 -] GGL1#,GYL1#..NAP |
90467-10167 |
from US $0.96 |
||
|
62475G
|
62475G
62475-48060 Seal, Roof Side, InnerROOF SIDE, INNER [04.2012 -] GGL1#,GYL1#..NAP |
62475-48060 |
US $1.16 |
||
|
62480A
|
62480A
62480-0E040-A0
Garnish Assy, Roof Side, Inner Lh
[07.2012 -] GYL1#..NAP;GGL15..NAP..8FC IVORY,TRIM0# |
62480-0E040-A0 |
— | ||
|
62480A
|
62480A
62480-0E040-B0
Garnish Assy, Roof Side, Inner Lh
[07.2012 -] GGL1#..NAP..6FC LT.GRAY,TRIM1#,20,3#,40; GGL15..NAP..8FC LT.GRAY,TRIM1#,20,30,4# |
62480-0E040-B0 |
— | ||
|
62480A
|
62480A
62480-0E040-C0
Garnish Assy, Roof Side, Inner Lh
[07.2012 -] GGL1#..NAP..6FC BLACK,TRIM21; GGL15..NAP..8FC BLACK,TRIM21,22,31,32 |
62480-0E040-C0 |
— | ||
|
62480A
|
62480A
62480-0E050-A0
Garnish Assy, Roof Side, Inner Lh
[07.2012 -] GYL1#..NAP;GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0# |
62480-0E050-A0 |
— | ||
|
62480A
|
62480A
62480-0E050-B0
Garnish Assy, Roof Side, Inner Lh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4# |
62480-0E050-B0 |
— | ||
|
62480A
|
62480A
62480-0E050-C0
Garnish Assy, Roof Side, Inner Lh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32 |
62480-0E050-C0 |
— | ||
|
62551A
|
62551A
62551-0E060-A0
Cover, Rear Seat Side, Rh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
62551-0E060-A0 |
— | ||
|
62551A
|
62551A
62551-0E060-C0
Cover, Rear Seat Side, Rh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
62551-0E060-C0 |
— | ||
|
62551E
|
62551E
90467-A0001-A1
Clip(For Rear Seat Side Garnish)
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
90467-A0001-A1 |
— | ||
|
62551E
|
62551E
90467-A0001-C0 Clip, Heater To Register DuctHEATER TO REGISTER DUCT [04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
90467-A0001-C0 |
US $1.02 |
||
|
62551G
|
62551G
62489-0E010 Clip(For Rear Floor Finish Plate)[04.2012 -] GGL1#,GYL1#..NAP |
62489-0E010 |
from US $1.24 |
||
|
62552A
|
62552A
62552-0E030-A0
Cover, Rear Seat Side, Lh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
62552-0E030-A0 |
— | ||
|
62552A
|
62552A
62552-0E030-C0
Cover, Rear Seat Side, Lh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
62552-0E030-C0 |
— | ||
|
62619A
|
62619A
62619-0E020
Plate, Side Trim Set
[04.2012 -] GGL1#,GYL1#..NAP |
62619-0E020 |
— | ||
|
63395C
|
63395C
63395-12150 Clip (For Center Pillar Garnish Panel, Upper)[04.2012 -] GGL1#,GYL1#..NAP |
63395-12150 |
from US $0.90 |
||
|
64393
|
64393
64393-0E010-A1
Grille, Rear Speaker, No.2 Rh
[07.2012 -] GYL1#..NAP;GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0# |
64393-0E010-A1 |
— | ||
|
64393
|
64393
64393-0E010-B1
Grille, Rear Speaker, No.2 Rh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4# |
64393-0E010-B1 |
— | ||
|
64393
|
64393
64393-0E010-C0
Grille, Rear Speaker, No.2 Rh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32 |
64393-0E010-C0 |
— | ||
|
64394
|
64394
64394-0E010-A0
Grille, Rear Speaker, No.2 Lh
[07.2012 -] GYL1#..NAP;GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0# |
64394-0E010-A0 |
— | ||
|
64394
|
64394
64394-0E010-B0
Grille, Rear Speaker, No.2 Lh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4# |
64394-0E010-B0 |
— | ||
|
64394
|
64394
64394-0E010-C0
Grille, Rear Speaker, No.2 Lh
[07.2012 -] GGL1#..NAP..6FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; GGL15..NAP..8FC AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32 |
64394-0E010-C0 |
— | ||
|
67913
|
67913
67910-0E050-C0
Plate, Front Door Scuff, Rh
[07.2012 -] GGL15..NAP..8FC BLACK,TRIM1#,2#,3#,4# |
67910-0E050-C0 |
— | ||
|
67914
|
67914
67920-0E050-C0
Plate, Front Door Scuff, Lh
[07.2012 -] GGL15..NAP..8FC BLACK,TRIM1#,2#,3#,4# |
67920-0E050-C0 |
— | ||
|
67914A
|
67914A
63395-12150 Clip (For Center Pillar Garnish Panel, Upper)[04.2012 -] GGL1#,GYL1#..NAP |
63395-12150 |
from US $0.90 |
||
|
67917A
|
67917A
67930-0E020-C0
Plate, Rear Door Scuff, Rh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
67930-0E020-C0 |
— | ||
|
67918A
|
67918A
67940-0E020-C0
Plate, Rear Door Scuff, Lh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
67940-0E020-C0 |
— | ||
|
67918C
|
67918C
90467-10167 Clip(For Rear Floor Finish Plate)[04.2012 -] GGL1#,GYL1#..NAP |
90467-10167 |
from US $0.96 |
||
|
67923A
|
67923A
67923-30030 Clamp, Door Scuff Plate, No.1[04.2012 -] GGL1#,GYL1#..NAP |
67923-30030 |
from US $1.37 |
||
|
90168A0006
|
90168A0006
90168-A0006
New Genuine Part
|
90168-A0006 |
— | ||
|
621890E010
|
621890E010
62189-0E010
Plate, Rear Floor Side Board Set, Rear Lh
|
62189-0E010 |
— | ||
|
629110E010
|
629110E010
62911-0E010
Clip
|
62911-0E010 |
— | ||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $1.08 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
