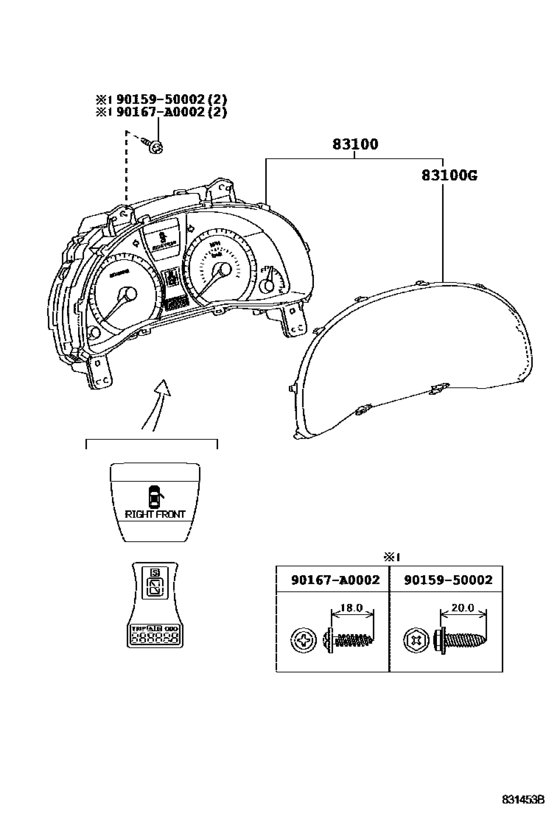

Meter ([01.2009 - ] COMBINATION METER (0901- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-0E470
Meter Assy, Combination
[04.2012 - 09.2013] GGL15..NAP CANADA SPEC |
83800-0E470 |
— | ||
|
83100
|
83100
83800-0E480
Meter Assy, Combination
[04.2012 - 09.2013] GGL1#..NAP |
83800-0E480 |
— | ||
|
83100
|
83100
83800-0E670
Meter Assy, Combination
[09.2013 -] GGL15..NAP CANADA SPEC |
83800-0E670 |
— | ||
|
83100
|
83100
83800-0E680
Meter Assy, Combination
[09.2013 -] GGL1#..NAP |
83800-0E680 |
— | ||
|
83100G
|
83100G
83852-0E170
Glass, Combination Meter
[04.2012 -] GGL1#,GYL1#..NAP |
83852-0E170 |
— | ||
|
90167A0002
|
90167A0002
90167-A0002 New Genuine Part |
90167-A0002 |
US $0.87 |
||
|
9015950002
|
9015950002
90159-50002 SCREW |
90159-50002 |
US $1.25 |
