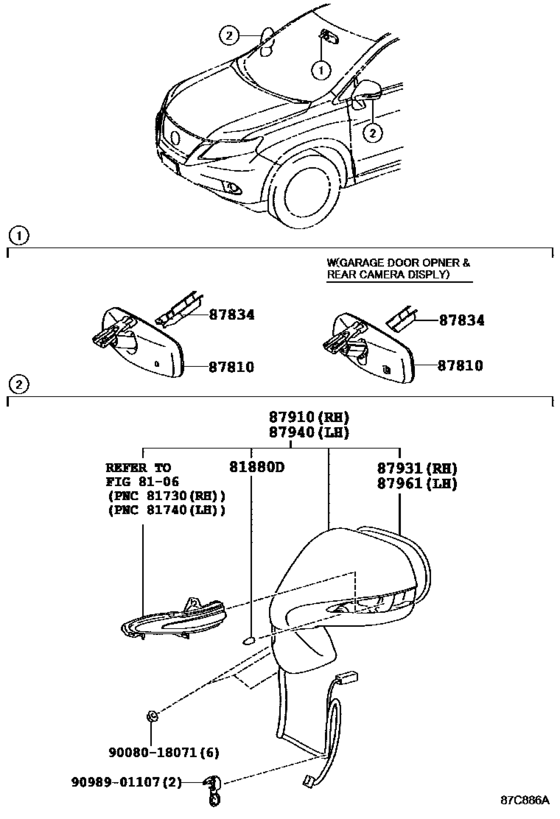

Mirror ([04.2012 - ] (1204- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81880D
|
81880D
99132-12050 Bulb (12V 5W)[04.2012 -] GGL1#,GYL1#..NAP 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81880D
|
81880D
90080-81053 Bulb(For Clearance Lamp)[04.2012 -] GGL1#,GYL1#..NAP 12V 5W |
90080-81053 |
US $1.01 |
||
|
87810
|
87810
87810-0WB00
Mirror Assy, Inner Rear View
[04.2012 - 02.2014] GGL1#..NAP INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR |
87810-0WB00 |
— | ||
|
87810
|
87810
87810-0WB01
Mirror Assy, Inner Rear View
[03.2014 - 10.2015] GGL1#,GYL1#..NAP INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR |
87810-0WB01 |
— | ||
|
87810
|
87810
87810-0WC40
Mirror Assy, Inner Rear View
[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
87810-0WC40 |
— | ||
|
87810
|
87810
87810-0WC50
Mirror Assy, Inner Rear View
[04.2012 - 10.2015] GGL1#,GYL1#..NAP INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & *GDO |
87810-0WC50 |
— | ||
|
87834
|
87834
87818-04010 Cover, Inner Rear View Mirror Stay HolderINNER REAR VIEW MIRROR STAY HOLDER [04.2012 -] GGL1#,GYL1#..NAP INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR |
87818-04010 |
from US $5.92 |
||
|
87834
|
87834
87818-06030 Cover, Inner Rear View Mirror Stay HolderINNER REAR VIEW MIRROR STAY HOLDER [04.2012 -] GGL1#,GYL1#..NAP |
87818-06030 |
US $8.74 |
||
|
87910
|
87910
87910-0E102-A0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP WHITE PEARL CS.,077 |
87910-0E102-A0 |
— | ||
|
87910
|
87910
87910-0E102-A1
Mirror Assy, Outer Rear View, Rh
[09.2013 -] GGL1#,GYL1#..NAP WHITE NOVA GF.,083 |
87910-0E102-A1 |
— | ||
|
87910
|
87910
87910-0E102-B3
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP MERCURY GRAY MC.,1H9 |
87910-0E102-B3 |
— | ||
|
87910
|
87910
87910-0E102-B4
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP PLATINUM SILVER ME.,1J4 |
87910-0E102-B4 |
— | ||
|
87910
|
87910
87910-0E102-C0
Mirror Assy, Outer Rear View, Rh
[07.2012 -] GGL15..NAP..8FC BLACK,212 ,2MH |
87910-0E102-C0 |
— | ||
|
87910
|
87910
87910-0E102-C1
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP STARLIGHT BLACK GF.,217 |
87910-0E102-C1 |
— | ||
|
87910
|
87910
87910-0E102-D1
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP GARNET RED MC.,3S0 |
87910-0E102-D1 |
— | ||
|
87910
|
87910
87910-0E102-E2
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP SLEEK ECRU ME.,4U7 |
87910-0E102-E2 |
— | ||
|
87910
|
87910
87910-0E102-E3
Mirror Assy, Outer Rear View, Rh
[04.2012 - 03.2014] GGL1#..NAP FIRE AGATE M.M.,4V3 |
87910-0E102-E3 |
— | ||
|
87910
|
87910
87910-0E102-J2
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP LAPIS LAZULI MC.,8V3 |
87910-0E102-J2 |
— | ||
|
87910
|
87910
87910-0E110-A0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE PEARL CS.,077 |
87910-0E110-A0 |
— | ||
|
87910
|
87910
87910-0E110-A1
Mirror Assy, Outer Rear View, Rh
[09.2013 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE NOVA GF.,083 |
87910-0E110-A1 |
— | ||
|
87910
|
87910
87910-0E110-B1
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,MERCURY GRAY MC.,1H 9 |
87910-0E110-B1 |
— | ||
|
87910
|
87910
87910-0E110-B2
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,PLATINUM SILVER ME. ,1J4 |
87910-0E110-B2 |
— | ||
|
87910
|
87910
87910-0E110-C0
Mirror Assy, Outer Rear View, Rh
[07.2012 -] GGL15..NAP..8FC OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,BLACK,212 ,2MH |
87910-0E110-C0 |
— | ||
|
87910
|
87910
87910-0E110-C1
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,STARLIGHT BLACK GF. ,217 |
87910-0E110-C1 |
— | ||
|
87910
|
87910
87910-0E110-D0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,GARNET RED MC.,3S0 |
87910-0E110-D0 |
— | ||
|
87910
|
87910
87910-0E110-E0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,SLEEK ECRU ME.,4U7 |
87910-0E110-E0 |
— | ||
|
87910
|
87910
87910-0E110-E1
Mirror Assy, Outer Rear View, Rh
[04.2012 - 03.2014] GGL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,FIRE AGATE M.M.,4V3 |
87910-0E110-E1 |
— | ||
|
87910
|
87910
87910-0E110-J0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,LAPIS LAZULI MC.,8V 3 |
87910-0E110-J0 |
— | ||
|
87910
|
87910
87910-0E120-A0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077 |
87910-0E120-A0 |
— | ||
|
87910
|
87910
87910-0E120-A1
Mirror Assy, Outer Rear View, Rh
[09.2013 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE NOVA GF.,083 |
87910-0E120-A1 |
— | ||
|
87910
|
87910
87910-0E120-B0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H 9 |
87910-0E120-B0 |
— | ||
|
87910
|
87910
87910-0E120-B1
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,PLATINUM SILVER ME. ,1J4 |
87910-0E120-B1 |
— | ||
|
87910
|
87910
87910-0E120-C0
Mirror Assy, Outer Rear View, Rh
[07.2012 -] GGL15..NAP..8FC OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212 ,2MH |
87910-0E120-C0 |
— | ||
|
87910
|
87910
87910-0E120-C1
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF. ,217 |
87910-0E120-C1 |
— | ||
|
87910
|
87910
87910-0E120-D0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,GARNET RED MC.,3S0 |
87910-0E120-D0 |
— | ||
|
87910
|
87910
87910-0E120-E0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7 |
87910-0E120-E0 |
— | ||
|
87910
|
87910
87910-0E120-E1
Mirror Assy, Outer Rear View, Rh
[04.2012 - 03.2014] GGL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,FIRE AGATE M.M.,4V3 |
87910-0E120-E1 |
— | ||
|
87910
|
87910
87910-0E120-J0
Mirror Assy, Outer Rear View, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,LAPIS LAZULI MC.,8V 3 |
87910-0E120-J0 |
— | ||
|
87931
|
87931
87931-0E100
Outer Mirror, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
87931-0E100 |
— | ||
|
87931
|
87931
87931-48421
Outer Mirror, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY |
87931-48421 |
— | ||
|
87931
|
87931
87931-48590
Outer Mirror, Rh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION |
87931-48590 |
— | ||
|
87940
|
87940
87940-0E092-A0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP WHITE PEARL CS.,077 |
87940-0E092-A0 |
— | ||
|
87940
|
87940
87940-0E092-A1
Mirror Assy, Outer Rear View, Lh
[09.2013 -] GGL1#,GYL1#..NAP WHITE NOVA GF.,083 |
87940-0E092-A1 |
— | ||
|
87940
|
87940
87940-0E092-B3
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP MERCURY GRAY MC.,1H9 |
87940-0E092-B3 |
— | ||
|
87940
|
87940
87940-0E092-B4
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP PLATINUM SILVER ME.,1J4 |
87940-0E092-B4 |
— | ||
|
87940
|
87940
87940-0E092-C0
Mirror Assy, Outer Rear View, Lh
[07.2012 -] GGL15..NAP..8FC BLACK,212 ,2MH |
87940-0E092-C0 |
— | ||
|
87940
|
87940
87940-0E092-C1
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP STARLIGHT BLACK GF.,217 |
87940-0E092-C1 |
— | ||
|
87940
|
87940
87940-0E092-D1
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP GARNET RED MC.,3S0 |
87940-0E092-D1 |
— | ||
|
87940
|
87940
87940-0E092-E2
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP SLEEK ECRU ME.,4U7 |
87940-0E092-E2 |
— | ||
|
87940
|
87940
87940-0E092-E3
Mirror Assy, Outer Rear View, Lh
[04.2012 - 03.2014] GGL1#..NAP FIRE AGATE M.M.,4V3 |
87940-0E092-E3 |
— | ||
|
87940
|
87940
87940-0E092-J2
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP LAPIS LAZULI MC.,8V3 |
87940-0E092-J2 |
— | ||
|
87940
|
87940
87940-0E100-A0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE PEARL CS.,077 |
87940-0E100-A0 |
— | ||
|
87940
|
87940
87940-0E100-A1
Mirror Assy, Outer Rear View, Lh
[09.2013 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE NOVA GF.,083 |
87940-0E100-A1 |
— | ||
|
87940
|
87940
87940-0E100-B1
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,MERCURY GRAY MC.,1H 9 |
87940-0E100-B1 |
— | ||
|
87940
|
87940
87940-0E100-B2
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,PLATINUM SILVER ME. ,1J4 |
87940-0E100-B2 |
— | ||
|
87940
|
87940
87940-0E100-C0
Mirror Assy, Outer Rear View, Lh
[07.2012 -] GGL15..NAP..8FC OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,BLACK,212 ,2MH |
87940-0E100-C0 |
— | ||
|
87940
|
87940
87940-0E100-C1
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,STARLIGHT BLACK GF. ,217 |
87940-0E100-C1 |
— | ||
|
87940
|
87940
87940-0E100-D0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,GARNET RED MC.,3S0 |
87940-0E100-D0 |
— | ||
|
87940
|
87940
87940-0E100-E0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,SLEEK ECRU ME.,4U7 |
87940-0E100-E0 |
— | ||
|
87940
|
87940
87940-0E100-E1
Mirror Assy, Outer Rear View, Lh
[04.2012 - 03.2014] GGL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,FIRE AGATE M.M.,4V3 |
87940-0E100-E1 |
— | ||
|
87940
|
87940
87940-0E100-J0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,LAPIS LAZULI MC.,8V 3 |
87940-0E100-J0 |
— | ||
|
87940
|
87940
87940-0E110-A0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077 |
87940-0E110-A0 |
— | ||
|
87940
|
87940
87940-0E110-A1
Mirror Assy, Outer Rear View, Lh
[09.2013 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE NOVA GF.,083 |
87940-0E110-A1 |
— | ||
|
87940
|
87940
87940-0E110-B0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H 9 |
87940-0E110-B0 |
— | ||
|
87940
|
87940
87940-0E110-B1
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,PLATINUM SILVER ME. ,1J4 |
87940-0E110-B1 |
— | ||
|
87940
|
87940
87940-0E110-C0
Mirror Assy, Outer Rear View, Lh
[07.2012 -] GGL15..NAP..8FC OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212 ,2MH |
87940-0E110-C0 |
— | ||
|
87940
|
87940
87940-0E110-C1
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF. ,217 |
87940-0E110-C1 |
— | ||
|
87940
|
87940
87940-0E110-D0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,GARNET RED MC.,3S0 |
87940-0E110-D0 |
— | ||
|
87940
|
87940
87940-0E110-E0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7 |
87940-0E110-E0 |
— | ||
|
87940
|
87940
87940-0E110-E1
Mirror Assy, Outer Rear View, Lh
[04.2012 - 03.2014] GGL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,FIRE AGATE M.M.,4V3 |
87940-0E110-E1 |
— | ||
|
87940
|
87940
87940-0E110-J0
Mirror Assy, Outer Rear View, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,LAPIS LAZULI MC.,8V 3 |
87940-0E110-J0 |
— | ||
|
87961
|
87961
87961-48401
Mirror Outer, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY |
87961-48401 |
— | ||
|
87961
|
87961
87961-48520
Mirror Outer, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
87961-48520 |
— | ||
|
87961
|
87961
87961-48610
Mirror Outer, Lh
[04.2012 -] GGL1#,GYL1#..NAP OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION |
87961-48610 |
— | ||
|
9008018071
|
9008018071
90080-18071
New Genuine Part
|
90080-18071 |
— | ||
|
9098901107
|
9098901107
90989-01107 Clamp, Height Control Tube, No.2 |
90989-01107 |
US $1.60 |
||
