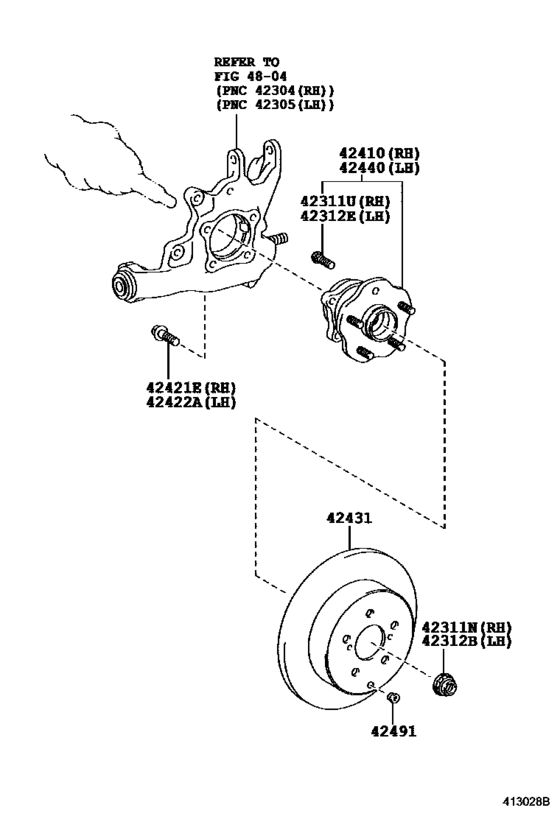

Rear Axle Shaft & Hub ([01.2009 - ] (0901- )GGL15,GYL15) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311N
|
42311N
90080-17238
Nut (For Rear Axle Shaft Rh)
[04.2012 -] GGL15,GYL15..NAP |
90080-17238 |
— | ||
| replacement | |||||
|
42311N
|
42311N
90177-22001 Nut (For Axle Shaft)[04.2012 -] GGL15,GYL15..NAP |
90177-22001 |
from US $2.36 |
||
|
42311U
|
42311U
90942-02049 Bolt, Hub[04.2012 -] GGL1#,GYL1#..NAP |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42311U
|
42311U
90942-02082 Bolt, Hub[04.2012 -] GGL1#,GYL1#..NAP |
90942-02082 |
from US $2.32 |
||
|
42312B
|
42312B
90080-17238
Nut (For Rear Axle Shaft Rh)
[04.2012 -] GGL15,GYL15..NAP |
90080-17238 |
— | ||
| replacement | |||||
|
42312B
|
42312B
90177-22001 Nut (For Axle Shaft)[04.2012 -] GGL15,GYL15..NAP |
90177-22001 |
from US $2.36 |
||
|
42312E
|
42312E
90942-02049 Bolt, Hub[04.2012 -] GGL1#,GYL1#..NAP |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42312E
|
42312E
90942-02082 Bolt, Hub[04.2012 -] GGL1#,GYL1#..NAP |
90942-02082 |
from US $2.32 |
||
|
42410
|
42410
42410-0E030
Hub & Bearing Assy, Rear Axle, Rh
[04.2012 - 10.2012] GGL15..NAP |
42410-0E030 |
— | ||
| replacement | |||||
|
42410
|
42410
42410-0E031 Hub & Bearing Assy, Rear Axle[04.2012 - 10.2012] GGL15..NAP |
42410-0E031 |
US $274.93 |
||
|
42410
|
42410
42410-0E031 Hub & Bearing Assy, Rear Axle[11.2012 -] GGL15,GYL15..NAP |
42410-0E031 |
US $274.93 |
||
|
42421E
|
42421E
90105-14097 Bolt (For Rear Axle Bearing Case Rh)[04.2012 -] GGL1#,GYL1#..NAP |
90105-14097 |
US $3.94 |
||
|
42422A
|
42422A
90105-14097 Bolt (For Rear Axle Bearing Case Rh)[04.2012 -] GGL1#,GYL1#..NAP |
90105-14097 |
US $3.94 |
||
|
42431
|
42431
42431-0E020 Disc, RearREAR [04.2012 -] GGL1#,GYL1#..NAP |
42431-0E020 |
from US $134.80 |
||
|
42440
|
42440
42410-0E030
Hub & Bearing Assy, Rear Axle, Rh
[04.2012 - 10.2012] GGL15..NAP |
42410-0E030 |
— | ||
| replacement | |||||
|
42440
|
42440
42410-0E031 Hub & Bearing Assy, Rear Axle[04.2012 - 10.2012] GGL15..NAP |
42410-0E031 |
US $274.93 |
||
|
42440
|
42440
42410-0E031 Hub & Bearing Assy, Rear Axle[11.2012 -] GGL15,GYL15..NAP |
42410-0E031 |
US $274.93 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[04.2012 -] GGL1#,GYL1#..NAP |
47491-22020 |
from US $1.77 |
||
