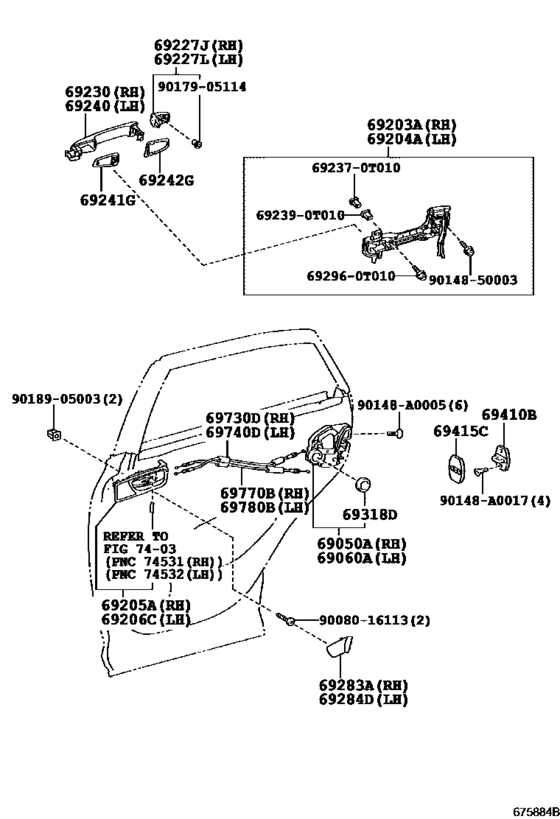

Rear Door Lock & Handle ([01.2009 - ] (0901- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69050A
|
69050A
69050-02200
Lock Assy, Rear Door W/motor, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
69050-02200 |
— | ||
|
69060A
|
69060A
69060-02190
Lock Assy, Rear Door W/motor, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
69060-02190 |
— | ||
|
69203A
|
69203A
69203-0E021
Frame Sub-Assy, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
69203-0E021 |
— | ||
|
69204A
|
69204A
69204-0E021
Frame Sub-Assy, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
69204-0E021 |
— | ||
|
69205A
|
69205A
67607-0E010-A0
Handle Sub-Assy, Rear Door Inside, Rh
[04.2012 - 10.2015] GGL1#,GYL1#..NAP AUDIO-DVD,12SPEAKER,IVORY,TRIM0#; GGL1#,GYL1#..NAP AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#; GGL1#,GYL1#..NAP AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0# |
67607-0E010-A0 |
— | ||
|
69205A
|
69205A
67607-0E010-C0
Handle Sub-Assy, Rear Door Inside, Rh
[04.2012 - 10.2015] GGL1#..NAP AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#; GGL1#..NAP AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#; GGL1#..NAP AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
67607-0E010-C0 |
— | ||
|
69205A
|
69205A
67607-0E020-A0
Handle Sub-Assy, Rear Door Inside, Rh
[04.2012 - 10.2015] GGL1#,GYL1#..NAP IVORY,TRIM0# |
67607-0E020-A0 |
— | ||
|
69205A
|
69205A
67607-0E020-C0
Handle Sub-Assy, Rear Door Inside, Rh
[04.2012 - 10.2015] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
67607-0E020-C0 |
— | ||
|
69206C
|
69206C
67608-0E010-A0
Handle Sub-Assy, Rear Door Inside, Lh
[04.2012 - 10.2015] GGL1#,GYL1#..NAP AUDIO-DVD,12SPEAKER,IVORY,TRIM0#; GGL1#,GYL1#..NAP AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#; GGL1#,GYL1#..NAP AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0# |
67608-0E010-A0 |
— | ||
|
69206C
|
69206C
67608-0E010-C0
Handle Sub-Assy, Rear Door Inside, Lh
[04.2012 - 10.2015] GGL1#..NAP AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#; GGL1#..NAP AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#; GGL1#..NAP AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
67608-0E010-C0 |
— | ||
|
69206C
|
69206C
67608-0E020-A0
Handle Sub-Assy, Rear Door Inside, Lh
[04.2012 - 10.2015] GGL1#,GYL1#..NAP IVORY,TRIM0# |
67608-0E020-A0 |
— | ||
|
69206C
|
69206C
67608-0E020-C0
Handle Sub-Assy, Rear Door Inside, Lh
[04.2012 - 10.2015] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
67608-0E020-C0 |
— | ||
|
69227J
|
69227J
69227-0E030-A0
Cover, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP WHITE PEARL CS.,077 |
69227-0E030-A0 |
— | ||
|
69227J
|
69227J
69227-0E030-A1
Cover, Rear Door Outside Handle, Rh
[09.2013 -] GGL1#,GYL1#..NAP WHITE NOVA GF.,083 |
69227-0E030-A1 |
— | ||
|
69227J
|
69227J
69227-0E030-B3
Cover, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP MERCURY GRAY MC.,1H9 |
69227-0E030-B3 |
— | ||
|
69227J
|
69227J
69227-0E030-B4
Cover, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP PLATINUM SILVER ME.,1J4 |
69227-0E030-B4 |
— | ||
|
69227J
|
69227J
69227-0E030-C0
Cover, Rear Door Outside Handle, Rh
[07.2012 -] GGL15..NAP..8FC BLACK,212 ,2MH |
69227-0E030-C0 |
— | ||
|
69227J
|
69227J
69227-0E030-C1
Cover, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP STARLIGHT BLACK GF.,217 |
69227-0E030-C1 |
— | ||
|
69227J
|
69227J
69227-0E030-D1
Cover, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP GARNET RED MC.,3S0 |
69227-0E030-D1 |
— | ||
|
69227J
|
69227J
69227-0E030-J2
Cover, Rear Door Outside Handle, Rh
[04.2012 -] GGL1#,GYL1#..NAP LAPIS LAZULI MC.,8V3 |
69227-0E030-J2 |
— | ||
|
69227L
|
69227L
69228-0E010-A0
Cover, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP WHITE PEARL CS.,077 |
69228-0E010-A0 |
— | ||
|
69227L
|
69227L
69228-0E010-A1
Cover, Rear Door Outside Handle, Lh
[09.2013 -] GGL1#,GYL1#..NAP WHITE NOVA GF.,083 |
69228-0E010-A1 |
— | ||
|
69227L
|
69227L
69228-0E010-B3
Cover, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP MERCURY GRAY MC.,1H9 |
69228-0E010-B3 |
— | ||
|
69227L
|
69227L
69228-0E010-B4
Cover, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP PLATINUM SILVER ME.,1J4 |
69228-0E010-B4 |
— | ||
|
69227L
|
69227L
69228-0E010-C0
Cover, Rear Door Outside Handle, Lh
[07.2012 -] GGL15..NAP..8FC BLACK,212 ,2MH |
69228-0E010-C0 |
— | ||
|
69227L
|
69227L
69228-0E010-C1
Cover, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP STARLIGHT BLACK GF.,217 |
69228-0E010-C1 |
— | ||
|
69227L
|
69227L
69228-0E010-D1
Cover, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP GARNET RED MC.,3S0 |
69228-0E010-D1 |
— | ||
|
69227L
|
69227L
69228-0E010-J2
Cover, Rear Door Outside Handle, Lh
[04.2012 -] GGL1#,GYL1#..NAP LAPIS LAZULI MC.,8V3 |
69228-0E010-J2 |
— | ||
|
69230
|
69230
69210-0E050-A0
Handle Assy, Rear Door Outside, Rh
[04.2012 -] GGL1#,GYL1#..NAP WHITE PEARL CS.,077 |
69210-0E050-A0 |
— | ||
|
69230
|
69230
69210-0E050-A1
Handle Assy, Rear Door Outside, Rh
[09.2013 -] GGL1#,GYL1#..NAP WHITE NOVA GF.,083 |
69210-0E050-A1 |
— | ||
|
69230
|
69230
69210-0E050-B1
Handle Assy, Rear Door Outside, Rh
[04.2012 -] GGL1#,GYL1#..NAP MERCURY GRAY MC.,1H9 |
69210-0E050-B1 |
— | ||
|
69230
|
69230
69210-0E050-B2
Handle Assy, Rear Door Outside, Rh
[04.2012 -] GGL1#,GYL1#..NAP PLATINUM SILVER ME.,1J4 |
69210-0E050-B2 |
— | ||
|
69230
|
69230
69210-0E050-C0
Handle Assy, Rear Door Outside, Rh
[07.2012 -] GGL15..NAP..8FC BLACK,212 ,2MH |
69210-0E050-C0 |
— | ||
|
69230
|
69230
69210-0E050-C1
Handle Assy, Rear Door Outside, Rh
[04.2012 -] GGL1#,GYL1#..NAP STARLIGHT BLACK GF.,217 |
69210-0E050-C1 |
— | ||
|
69230
|
69230
69210-0E050-D1
Handle Assy, Rear Door Outside, Rh
[04.2012 -] GGL1#,GYL1#..NAP GARNET RED MC.,3S0 |
69210-0E050-D1 |
— | ||
|
69230
|
69230
69210-0E050-J1
Handle Assy, Rear Door Outside, Rh
[04.2012 -] GGL1#,GYL1#..NAP LAPIS LAZULI MC.,8V3 |
69210-0E050-J1 |
— | ||
|
69240
|
69240
69220-0E040-A0
Handle Assy, Rear Door Outside, Lh
[04.2012 -] GGL1#,GYL1#..NAP WHITE PEARL CS.,077 |
69220-0E040-A0 |
— | ||
|
69240
|
69240
69220-0E040-A1
Handle Assy, Rear Door Outside, Lh
[09.2013 -] GGL1#,GYL1#..NAP WHITE NOVA GF.,083 |
69220-0E040-A1 |
— | ||
|
69240
|
69240
69220-0E040-B1
Handle Assy, Rear Door Outside, Lh
[04.2012 -] GGL1#,GYL1#..NAP MERCURY GRAY MC.,1H9 |
69220-0E040-B1 |
— | ||
|
69240
|
69240
69220-0E040-B2
Handle Assy, Rear Door Outside, Lh
[04.2012 -] GGL1#,GYL1#..NAP PLATINUM SILVER ME.,1J4 |
69220-0E040-B2 |
— | ||
|
69240
|
69240
69220-0E040-C0
Handle Assy, Rear Door Outside, Lh
[07.2012 -] GGL15..NAP..8FC BLACK,212 ,2MH |
69220-0E040-C0 |
— | ||
|
69240
|
69240
69220-0E040-C1
Handle Assy, Rear Door Outside, Lh
[04.2012 -] GGL1#,GYL1#..NAP STARLIGHT BLACK GF.,217 |
69220-0E040-C1 |
— | ||
|
69240
|
69240
69220-0E040-D1
Handle Assy, Rear Door Outside, Lh
[04.2012 -] GGL1#,GYL1#..NAP GARNET RED MC.,3S0 |
69220-0E040-D1 |
— | ||
|
69240
|
69240
69220-0E040-J1
Handle Assy, Rear Door Outside, Lh
[04.2012 -] GGL1#,GYL1#..NAP LAPIS LAZULI MC.,8V3 |
69220-0E040-J1 |
— | ||
|
69241G
|
69241G
69241-0E010
Pad, Rear Door Outside Handle, Front
[04.2012 -] GGL1#,GYL1#..NAP RH |
69241-0E010 |
— | ||
|
69241G
|
69241G
69242-0E020
Pad, Rear Door Outside Handle, Front
[04.2012 -] GGL1#,GYL1#..NAP LH |
69242-0E020 |
— | ||
|
69242G
|
69242G
69241-0E021
Pad, Front Door Outside Handle, Rear
[04.2012 - 12.2013] GGL1#..NAP RH |
69241-0E021 |
— | ||
| replacement | |||||
|
69242G
|
69242G
69241-0E060
Pad, Front Door Outside Handle, Rear
[04.2012 - 12.2013] GGL1#..NAP RH |
69241-0E060 |
— | ||
|
69242G
|
69242G
69241-0E060
Pad, Front Door Outside Handle, Rear
[01.2014 -] GGL1#,GYL1#..NAP RH |
69241-0E060 |
— | ||
|
69242G
|
69242G
69242-0E031
Pad, Front Door Outside Handle, Rear
[04.2012 - 12.2013] GGL1#..NAP LH |
69242-0E031 |
— | ||
| replacement | |||||
|
69242G
|
69242G
69242-0E060
Pad, Front Door Outside Handle, Rear
[04.2012 - 12.2013] GGL1#..NAP LH |
69242-0E060 |
— | ||
|
69242G
|
69242G
69242-0E060
Pad, Front Door Outside Handle, Rear
[01.2014 -] GGL1#,GYL1#..NAP LH |
69242-0E060 |
— | ||
|
69283A
|
69283A
69283-0E010-A0
Plug, Front Door Inside Handle Bezel, Rh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
69283-0E010-A0 |
— | ||
|
69283A
|
69283A
69283-0E010-C0
Plug, Front Door Inside Handle Bezel, Rh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
69283-0E010-C0 |
— | ||
|
69284D
|
69284D
69284-0E010-A0
Plug, Front Door Inside Handle Bezel, Lh
[04.2012 -] GGL1#,GYL1#..NAP IVORY,TRIM0# |
69284-0E010-A0 |
— | ||
|
69284D
|
69284D
69284-0E010-C0
Plug, Front Door Inside Handle Bezel, Lh
[04.2012 -] GGL1#..NAP BLACK,TRIM1#,2#,3#,4# |
69284-0E010-C0 |
— | ||
|
69318D
|
69318D
69318-AA010 Seal, Door Lock Wiring Harness[04.2012 -] GGL1#,GYL1#..NAP |
69318-AA010 |
US $1.60 |
||
|
69410B
|
69410B
69410-0E010
Plate Assy, Front Door Lock Striker
[04.2012 -] GGL1#,GYL1#..NAP |
69410-0E010 |
— | ||
|
69415C
|
69415C
69415-0E010
Cover, Door Lock Striker, Front
[04.2012 -] GGL1#,GYL1#..NAP |
69415-0E010 |
— | ||
|
69730D
|
69730D
69730-0E020
Cable Assy, Rear Door Lock Remote Control, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
69730-0E020 |
— | ||
|
69740D
|
69740D
69730-0E020
Cable Assy, Rear Door Lock Remote Control, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
69730-0E020 |
— | ||
|
69770B
|
69770B
69770-0E020
Cable Assy, Rear Door Inside Locking, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
69770-0E020 |
— | ||
|
69780B
|
69780B
69770-0E020
Cable Assy, Rear Door Inside Locking, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
69770-0E020 |
— | ||
|
90148A0005
|
90148A0005
90148-A0005
New Genuine Part
|
90148-A0005 |
— | ||
|
90148A0017
|
90148A0017
90148-A0017
New Genuine Part
|
90148-A0017 |
— | ||
|
692370T010
|
692370T010
69237-0T010
Retainer, Door Outside Handle
|
69237-0T010 |
— | ||
|
692390T010
|
692390T010
69239-0T010
Bush(For Rear Door Outside Handle)
|
69239-0T010 |
— | ||
|
692960T010
|
692960T010
69296-0T010 Screw, Door Inside Handle |
69296-0T010 |
US $1.05 |
||
|
9008016113
|
9008016113
90080-16113
New Genuine Part
|
90080-16113 |
— | ||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.66 |
||
|
9017905114
|
9017905114
90179-05114 New Genuine Part |
90179-05114 |
US $0.87 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
