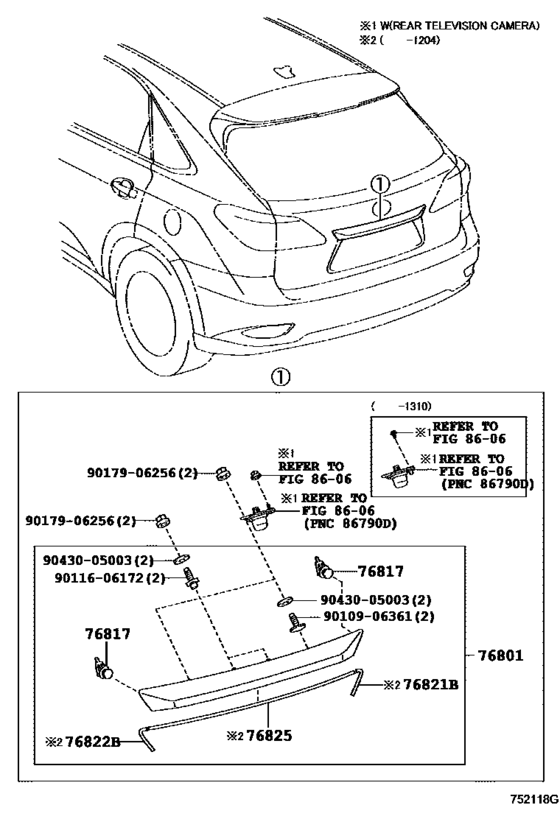

Rear Moulding ([01.2009 - ] (0901- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76801
|
76801
76801-0E220
Garnish Sub-Assy, Back Door, Outside
[04.2012 - 09.2015] GGL1#,GYL1#..NAP |
76801-0E220 |
— | ||
|
76801
|
76801
76801-0E230
Garnish Sub-Assy, Back Door, Outside
[04.2012 - 10.2013] GGL1#..NAP INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR; GGL1#..NAP INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & *GDO&AUDIO-DVD,12SPEAKER&EMV & NAVI GATION SYSTEM-WITH; GGL1#..NAP INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & |
76801-0E230 |
— | ||
|
76801
|
76801
76801-0E231
Garnish Sub-Assy, Back Door, Outside
[10.2013 - 09.2015] GGL1#,GYL1#..NAP INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR; GGL1#,GYL1#..NAP INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & *GDO&AUDIO-DVD,12SPEAKER&EMV & NAVI GATION SYSTEM-WITH; GGL1#,GYL1#..NAP INSIDE REAR VIEW MIRROR-AUTOM |
76801-0E231 |
— | ||
|
76817
|
76817
76817-50010 Clip, Back Door Outside Garnish[04.2012 - 10.2015] GGL1#,GYL1#..NAP |
76817-50010 |
from US $0.98 |
||
|
9010906361
|
9010906361
90109-06361 BOLT |
90109-06361 |
from US $0.62 |
||
|
9011606172
|
9011606172
90116-06172 BOLT STUD |
90116-06172 |
from US $0.74 |
||
|
9017906256
|
9017906256
90179-06256 NUT |
90179-06256 |
from US $0.88 |
||
|
9043005003
|
9043005003
90430-05003 GASKET |
90430-05003 |
from US $0.62 |
