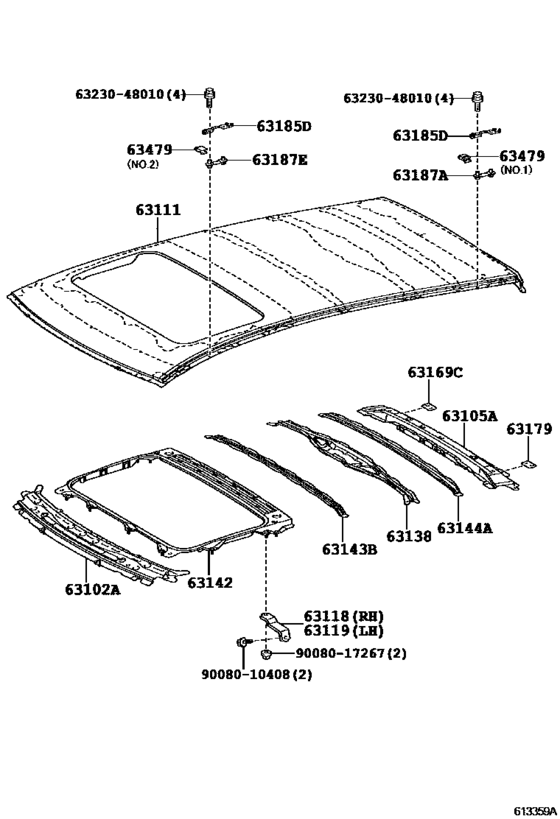

Roof Panel & Back Window Glass ([01.2009 - ] ROOF PANEL (0901- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-0E900
Panel Sub-Assy, Windshield Header
[04.2012 -] GGL1#,GYL1#..NAP |
63102-0E900 |
— | ||
|
63105A
|
63105A
63105-0E010
Frame Sub-Assy, Back Door Opening
[04.2012 -] GGL1#,GYL1#..NAP |
63105-0E010 |
— | ||
|
63111
|
63111
63111-0E010
Panel, Roof
[04.2012 - 09.2013] GGL1#..NAP |
63111-0E010 |
— | ||
| replacement | |||||
|
63111
|
63111
63111-48150 Panel, RoofROOF [04.2012 - 09.2013] GGL1#..NAP |
63111-48150 |
US $797.89 |
||
|
63111
|
63111
63111-0E190
Panel, Roof
[09.2013 -] GGL1#,GYL1#..NAP |
63111-0E190 |
— | ||
|
63118
|
63118
63118-0E010
Support, Roof Panel, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
63118-0E010 |
— | ||
|
63119
|
63119
63118-0E010
Support, Roof Panel, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
63118-0E010 |
— | ||
|
63138
|
63138
63138-0E010
Bracket, Dome Lamp, No.2
[04.2012 -] GGL1#,GYL1#..NAP |
63138-0E010 |
— | ||
|
63142
|
63142
63142-0E010
Reinforcement, Roof Panel, No.2
[04.2012 -] GGL1#,GYL1#..NAP |
63142-0E010 |
— | ||
|
63143B
|
63143B
63143-0E010
Reinforcement, Roof Panel, No.3
[04.2012 -] GGL1#,GYL1#..NAP |
63143-0E010 |
— | ||
|
63144A
|
63144A
63144-0E010
Reinforcement, Roof Panel, No.4
[04.2012 -] GGL1#,GYL1#..NAP |
63144-0E010 |
— | ||
|
63169C
|
63169C
63169-0E020
Retainer, Roof Reinforcement, No.2
[04.2012 -] GGL1#,GYL1#..NAP |
63169-0E020 |
— | ||
|
63179
|
63179
63179-0E020
Plate, Roof Panel Reinforcement, Lh
[04.2012 -] GGL1#,GYL1#..NAP |
63179-0E020 |
— | ||
|
63185D
|
63185D
63185-48010 Bracket, Roof Rack, FrontROOF RACK, FRONT [04.2012 -] GGL1#,GYL1#..NAP |
63185-48010 |
from US $2.36 |
||
|
63187A
|
63187A
63187-42010 Bracket, Roof Rack, Rear[04.2012 -] GGL1#,GYL1#..NAP |
63187-42010 |
US $3.03 |
||
|
63187E
|
63187E
63187-48010 Bracket, Roof Rack, Front[04.2012 -] GGL1#,GYL1#..NAP |
63187-48010 |
US $6.05 |
||
|
63479
|
63479
63479-0E010
Clip(Bracket, Roof Rack)
[04.2012 -] GGL1#,GYL1#..NAP NO.1 |
63479-0E010 |
— | ||
|
63479
|
63479
63479-48020 Retainer, Roof Inner RackROOF INNER RACK [04.2012 -] GGL1#,GYL1#..NAP NO.2 |
63479-48020 |
US $1.46 |
||
|
6323048010
|
6323048010
63230-48010 Moulding Assy, Roof Window, Side |
63230-48010 |
US $2.89 |
||
|
9008010408
|
9008010408
90080-10408
New Genuine Part
|
90080-10408 |
— | ||
|
9008017267
|
9008017267
90080-17267
New Genuine Part
|
90080-17267 |
— | ||
