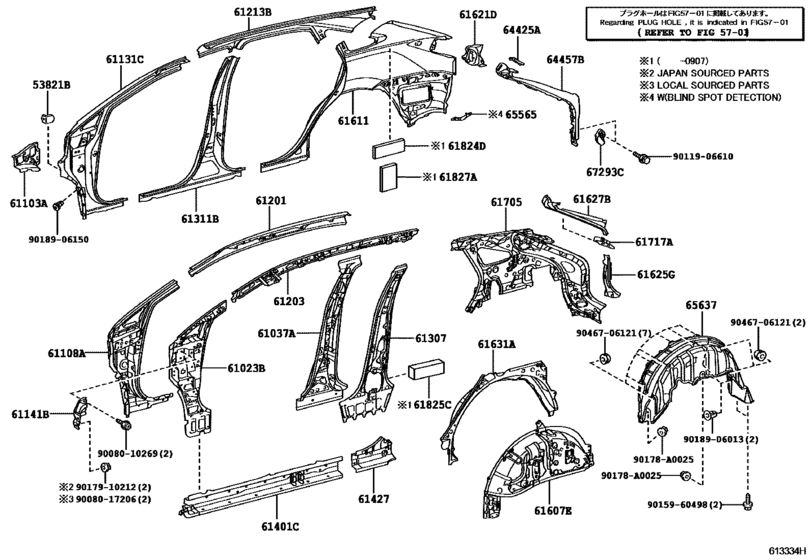

Side Member ([01.2009 - ] RH (0901- )) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-0E020
Bracket, Front Fender, Rear Rh
[04.2012 -] GGL1#,GYL1#..NAP |
53821-0E020 |
— | ||
|
61023B
|
61023B
61023-0E010
Pillar Sub-Assy, Front Body, Inner Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61023-0E010 |
— | ||
|
61037A
|
61037A
61037-0E904
Reinforcement Sub-Assy, Center Body Pillar, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61037-0E904 |
— | ||
|
61103A
|
61103A
61103-0E030
Reinforcement Sub-Assy, Cowl Side, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61103-0E030 |
— | ||
|
61108A
|
61108A
61108-0E901
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61108-0E901 |
— | ||
|
61131C
|
61131C
61131-0E050
Pillar, Front Body, Outer Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61131-0E050 |
— | ||
|
61141B
|
61141B
61141-0E010
Gusset, Front Body Pillar, Upper Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61141-0E010 |
— | ||
|
61201
|
61201
61201-0E900
Rail Sub-Assy, Roof Side, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61201-0E900 |
— | ||
|
61203
|
61203
61203-0E010
Rail Sub-Assy, Roof Side, Inner Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61203-0E010 |
— | ||
|
61213B
|
61213B
61213-0E050
Rail, Roof Side, Outer No.2 Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61213-0E050 |
— | ||
|
61307
|
61307
61307-0E010
Pillar Sub-Assy, Center Body, Inner Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61307-0E010 |
— | ||
|
61311B
|
61311B
61311-0E040
Pillar, Center Body, Outer Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61311-0E040 |
— | ||
|
61401C
|
61401C
61401-0E900
Panel Sub-Assy, Rocker, Outer Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61401-0E900 |
— | ||
|
61427
|
61427
61427-0E020
Reinforcement, Rocker Panel, No.5 Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61427-0E020 |
— | ||
|
61607E
|
61607E
61607-0E020
Panel, Quarter Wheel House, Inner Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61607-0E020 |
— | ||
|
61611
|
61611
61611-0E062
Panel, Quarter, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61611-0E062 |
— | ||
|
61621D
|
61621D
61621-0E020
Trough, Back Door Opening, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61621-0E020 |
— | ||
|
61625G
|
61625G
61625-0E020
Extension, Quarter Panel, Rear Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61625-0E020 |
— | ||
|
61627B
|
61627B
61627-0E020
Extension, Quarter Panel, Upper Rear Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61627-0E020 |
— | ||
|
61631A
|
61631A
61631-0E020
Panel, Quarter Wheel House, Outer Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61631-0E020 |
— | ||
|
61705
|
61705
61705-0E901
Panel Sub-Assy, Roof Side, Inner Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61705-0E901 |
— | ||
|
61717A
|
61717A
61717-0E010
Reinforcement, Quarter Panel Extension, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
61717-0E010 |
— | ||
|
64425A
|
64425A
64425-0E010
Plug, Quarter Panel, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
64425-0E010 |
— | ||
|
64457B
|
64457B
64457-0E020
Cover, Back Door Stopper Cushion, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
64457-0E020 |
— | ||
|
65565
|
65565
65565-0E010
Patch, Side Panel Rear End, Rh
[04.2012 -] GGL1#,GYL1#..NAP LANE CHANGE ASSIST-WITH(BLIND SPOT DETECTION) |
65565-0E010 |
— | ||
|
65637
|
65637
65637-0E010
Liner, Rear Wheel House, Rh
[04.2012 -] GGL1#,GYL1#..NAP |
65637-0E010 |
— | ||
|
67293C
|
67293C
67293-48060 Cushion, Back Door StopperBACK DOOR STOPPER [04.2012 -] GGL1#,GYL1#..NAP |
67293-48060 |
from US $8.44 |
||
|
90178A0025
|
90178A0025
90178-A0025
New Genuine Part
|
90178-A0025 |
— | ||
|
9008010269
|
9008010269
90080-10269 New Genuine Part |
90080-10269 |
US $1.60 |
||
|
9008017206
|
9008017206
90080-17206
New Genuine Part
|
90080-17206 |
— | ||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.68 |
||
|
9017910212
|
9017910212
90179-10212 Nut(For Front Suspension Support) |
90179-10212 |
from US $0.92 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906150
|
9018906150
90189-06150 BUSH |
90189-06150 |
from US $0.45 |
||
|
9046706121
|
9046706121
90467-06121 Clip, Rear Bumper Side |
90467-06121 |
from US $2.94 |
||
