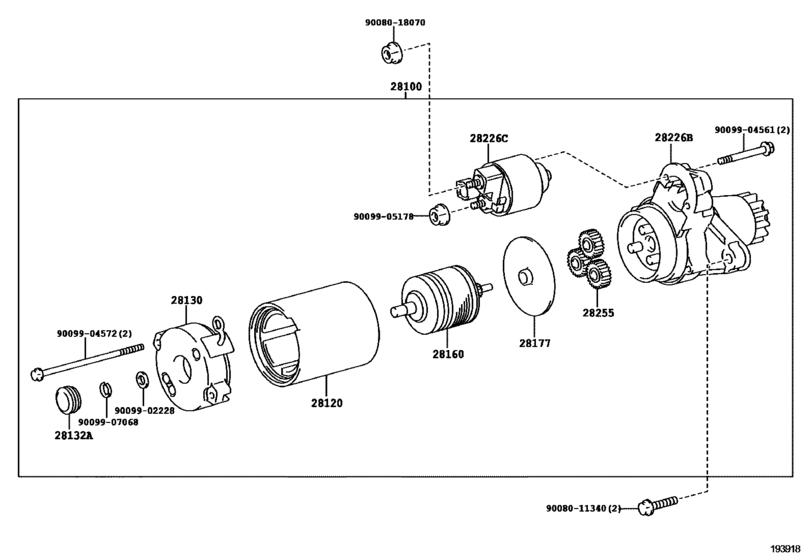

Starter ([07.2012 - ] 12V 1.7KW (1207- )2GRFE..GGL15..8FC) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-0P070
Starter Assy
[07.2012 -] 2GRFE..GGL15..NAP..8FC 12V 1.7KW |
28100-0P070 |
— | ||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[07.2012 -] 2GRFE..GGL15..NAP..8FC |
28120-28060 |
— | ||
|
28130
|
28130
28130-0P070
Frame Assy, Starter Commutator End
[07.2012 -] 2GRFE..GGL15..NAP..8FC |
28130-0P070 |
— | ||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[04.2012 -] 2GRFE..GGL1#..NAP |
28132-28040 |
from US $1.75 |
||
|
28160
|
28160
28160-28040 Armature Assy, Starter[04.2012 -] 2GRFE..GGL1#..NAP |
28160-28040 |
from US $125.35 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[04.2012 -] 2GRFE..GGL1#..NAP |
28177-28040 |
US $4.19 |
||
|
28226B
|
28226B
28226-0P070
Starter Kit, Repair Service
[07.2012 -] 2GRFE..GGL15..NAP..8FC |
28226-0P070 |
— | ||
|
28226C
|
28226C
28226-28051 Starter Kit, Repair Service[07.2012 -] 2GRFE..GGL15..NAP..8FC |
28226-28051 |
from US $65.40 |
||
|
28255
|
28255
28255-20020
Gear, Planet
[07.2012 -] 2GRFE..GGL15..NAP..8FC |
28255-20020 |
— | ||
|
9008011340
|
9008011340
90080-11340
New Genuine Part
|
90080-11340 |
— | ||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907068
|
9009907068
90099-07068 RING SNAP |
90099-07068 |
from US $0.28 |
