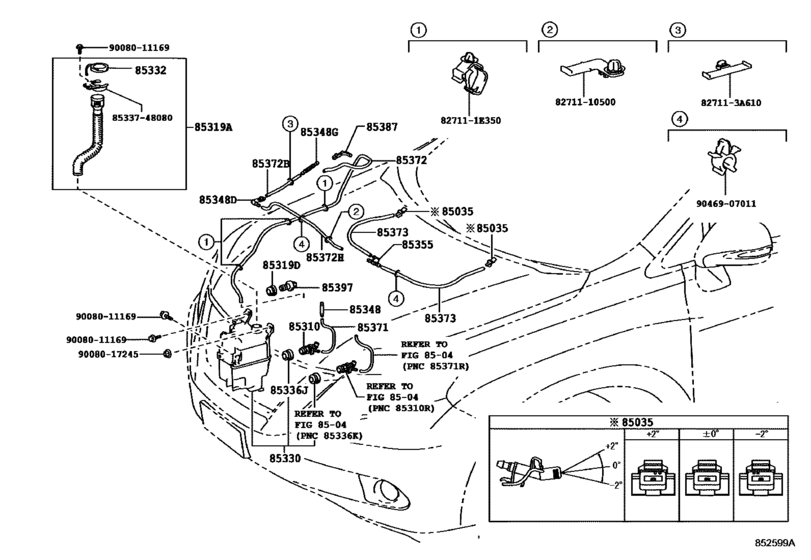

Windshield Washer ([01.2009 - ] (0901- )GGL1#) Diagram Toyota LEXUS RX
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 07.2012
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12300 Nozzle Sub-Assy, Washer[04.2012 -] GGL1#,GYL1#..NAP ANGLE 0 |
85381-12300 |
from US $8.39 |
||
|
85035
|
85035
85381-12310 Nozzle Sub-Assy, Washer[04.2012 -] GGL1#,GYL1#..NAP ANGLE -2 |
85381-12310 |
US $13.36 |
||
|
85035
|
85035
85381-12320 Nozzle Sub-Assy, Washer[04.2012 -] GGL1#,GYL1#..NAP ANGLE +2 |
85381-12320 |
from US $8.39 |
||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[04.2012 -] GGL1#,GYL1#..NAP |
85330-60190 |
from US $90.20 |
||
|
85319A
|
85319A
85319-0E030
Hose, Inlet
[04.2012 -] GGL1#..NAP |
85319-0E030 |
— | ||
|
85319D
|
85319D
85319-AA020
Packing, Front Washer
[04.2012 -] GGL1#,GYL1#..NAP |
85319-AA020 |
— | ||
|
85330
|
85330
85315-0E030
Jar Assy, Windshield Washer
[04.2012 - 10.2015] GGL1#..NAP |
85315-0E030 |
— | ||
|
85330
|
85330
85315-0E040
Jar Assy, Windshield Washer
[04.2012 - 10.2015] GGL15..NAP CANADA SPEC; GGL15..NAP..6FC CANADA SPEC&ULTRA PREMIUM PACKAGE; GGL1#..NAP..6FC ULTRA PREMIUM PACKAGE |
85315-0E040 |
— | ||
|
85332
|
85332
85316-48060 Cap, Windshield Washer Jar[04.2012 -] GGL1#..NAP |
85316-48060 |
from US $1.47 |
||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[04.2012 -] GGL1#,GYL1#..NAP |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85349-32150 Joint, Windshield Washer Hose, No.1[04.2012 -] GGL1#..NAP |
85349-32150 |
US $1.37 |
||
|
85348D
|
85348D
85375-16160 Joint, Windshield Washer Hose, No.1[04.2012 -] GGL1#,GYL1#..NAP |
85375-16160 |
from US $0.84 |
||
|
85348G
|
85348G
85385-48320
Joint, Windshield Washer Hose, No.1
[04.2012 -] GGL1#,GYL1#..NAP |
85385-48320 |
— | ||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[04.2012 -] GGL1#,GYL1#..NAP |
85321-28020 |
from US $10.20 |
||
|
85371
|
85371
90068-33095
Hose, Windshield Washer (From Motor To Joint)
[04.2012 -] GGL1#,GYL1#..NAP L=280; GGL15,GYL15..NAP L=280,CANADA SPEC; GGL15..NAP..6FC L=280,CANADA SPEC&ULTRA PREMIUM PACKAGE; GGL1#..NAP..6FC L=280,ULTRA PREMIUM PACKAGE |
90068-33095 |
— | ||
|
85372
|
85372
90068-33103
Hose, Windshield Washer (From Joint To Joint), No.1
[04.2012 -] GGL1#,GYL1#..NAP L=1340 |
90068-33103 |
— | ||
|
85372B
|
85372B
90068-33037 Hose, Windshield Washer (From Joint To Nozzle)[04.2012 -] GGL1#,GYL1#..NAP L=200 |
90068-33037 |
US $1.89 |
||
|
85372H
|
85372H
90068-33050
Hose, Windshield Washer (From Joint To Joint), No.2
[04.2012 -] GGL1#,GYL1#..NAP L=700 |
90068-33050 |
— | ||
|
85373
|
85373
90068-33101
Hose, Windshield Washer (From Joint To Nozzle)
[04.2012 -] GGL1#,GYL1#..NAP L=560 |
90068-33101 |
— | ||
|
85387
|
85387
85387-48320
Clamp No.1 (For Windseield Washer)
[04.2012 -] GGL1#,GYL1#..NAP |
85387-48320 |
— | ||
|
85397
|
85397
85397-AA040 Switch Assy, Washer Level Warning[04.2012 -] GGL1#,GYL1#..NAP |
85397-AA040 |
from US $39.80 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.09 |
||
|
827113A610
|
827113A610
82711-3A610 Clamp, Washer, No.2 |
82711-3A610 |
US $1.60 |
||
|
8271110500
|
8271110500
82711-10500 Clamp No.1 (For Windseield Washer) |
82711-10500 |
from US $1.29 |
||
|
8533748080
|
8533748080
85337-48080
Case, Level Warning Switch
|
85337-48080 |
— | ||
|
9008011169
|
9008011169
90080-11169 BOLT WWASHER |
90080-11169 |
US $0.83 |
||
|
9008017245
|
9008017245
90080-17245
New Genuine Part
|
90080-17245 |
— | ||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.97 |
