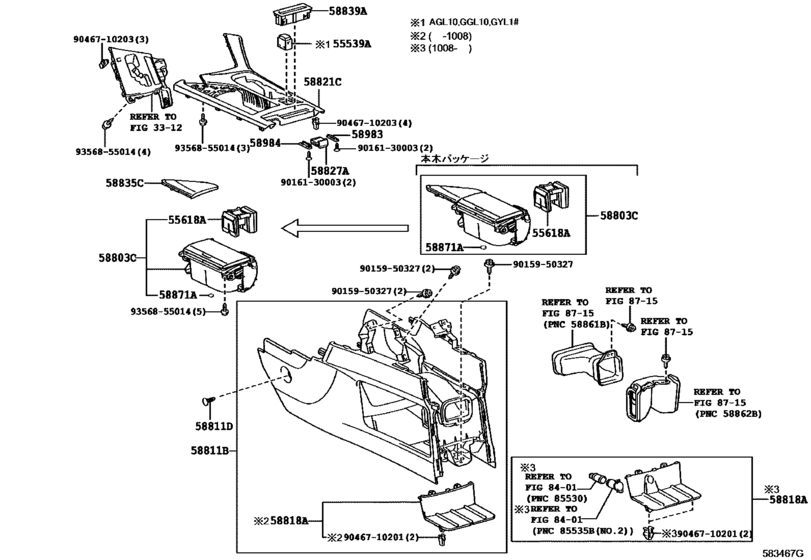

Console Box & Bracket ([12.2008 - 03.2012] (0812-1203)) Diagram Toyota LEXUS RX
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- GGL16
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- RX350
- From
- 12.2008
- To
- 03.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55618A
|
55618A
55618-48180 Holder, Console Box CupCONSOLE BOX CUP [12.2008 - 03.2012] AGL10,GGL1#,GYL1# |
55618-48180 |
from US $20.09 |
||
|
58803C
|
58803C
58803-48020 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [12.2008 - 08.2010] GGL16,GYL16 |
58803-48020 |
US $168.90 |
||
|
58803C
|
58803C
58803-48040-E0 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [12.2008 - 08.2010] GGL16,GYL16 本木目パッケージ,DK.BROWN,TRIM1# |
58803-48040-E0 |
US $544.54 |
||
|
58803C
|
58803C
58803-48040-E1 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [12.2008 - 11.2009] GGL1#,GYL1# 本木目パッケージ,MD.BROWN,TRIM0#,2# |
58803-48040-E1 |
US $544.54 |
||
| replacement | |||||
|
58803C
|
58803C
58803-48040-E3 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [12.2008 - 11.2009] GGL1#,GYL1# 本木目パッケージ,MD.BROWN,TRIM0#,2# |
58803-48040-E3 |
US $544.54 |
||
|
58803C
|
58803C
58803-48040-E3 Box Sub-Assy, Console Cup HolderCONSOLE CUP HOLDER [11.2009 - 08.2010] GGL16,GYL16 本木目パッケージ,MD.BROWN,TRIM0#,2# |
58803-48040-E3 |
US $544.54 |
||
|
58811B
|
58811B
58810-48500-A0 Box, ConsoleCONSOLE [12.2008 - 08.2010] GGL1# IVORY,TRIM0# |
58810-48500-A0 |
US $266.45 |
||
|
58811B
|
58811B
58810-48500-B0 Box, ConsoleCONSOLE [12.2008 - 08.2010] GGL1# LT.GRAY,TRIM1# |
58810-48500-B0 |
US $266.45 |
||
|
58811B
|
58811B
58810-48500-C0 Box, ConsoleCONSOLE [12.2008 - 08.2010] GGL1# BLACK,TRIM2# |
58810-48500-C0 |
US $266.45 |
||
|
58811B
|
58811B
58810-48501-A0 Box, Console[08.2010 - 03.2012] AGL10,GGL1# IVORY,TRIM0# |
58810-48501-A0 |
US $266.45 |
||
|
58811B
|
58811B
58810-48501-B0 Box, Console[08.2010 - 03.2012] AGL10,GGL1# LT.GRAY,TRIM1# |
58810-48501-B0 |
US $266.45 |
||
|
58811B
|
58811B
58810-48501-C0 Box, Console[08.2010 - 03.2012] AGL10,GGL1# BLACK,TRIM2# |
58810-48501-C0 |
US $266.45 |
||
|
58811D
|
58811D
90467-06020-A6 Clip(For Console Box)[12.2008 - 03.2012] AGL10,GGL1#,GYL1# IVORY,TRIM0# |
90467-06020-A6 |
US $1.60 |
||
|
58811D
|
58811D
90467-06020-B4 Clip(For Console Box)[12.2008 - 03.2012] AGL10,GGL1# LT.GRAY,TRIM1# |
90467-06020-B4 |
US $2.34 |
||
|
58811D
|
58811D
90467-06020-C0 Clip[12.2008 - 03.2012] AGL10,GGL1# BLACK,TRIM2# |
90467-06020-C0 |
from US $1.33 |
||
|
58818A
|
58818A
58818-48020-A0 Cover, Console Box, FrCONSOLE BOX, FR [12.2008 - 08.2010] GGL1#,GYL1# IVORY,TRIM0# |
58818-48020-A0 |
US $32.32 |
||
|
58818A
|
58818A
58818-48020-B0 Cover, Console Box, FrCONSOLE BOX, FR [12.2008 - 08.2010] GGL1# LT.GRAY,TRIM1# |
58818-48020-B0 |
US $32.32 |
||
|
58818A
|
58818A
58818-48020-C0 Cover, Console Box, FrCONSOLE BOX, FR [12.2008 - 08.2010] GGL1# BLACK,TRIM2# |
58818-48020-C0 |
US $32.32 |
||
|
58818A
|
58818A
58818-48060-A0 Cover, Console Box, Fr[08.2010 - 03.2012] AGL10,GGL1#,GYL1# IVORY,TRIM0# |
58818-48060-A0 |
US $26.94 |
||
|
58818A
|
58818A
58818-48060-B0 Cover, Console Box, Fr[08.2010 - 03.2012] AGL10,GGL1# LT.GRAY,TRIM1# |
58818-48060-B0 |
US $32.32 |
||
|
58818A
|
58818A
58818-48060-C0 Cover, Console Box, Fr[08.2010 - 03.2012] GYL1# BLACK,TRIM1#,2#; AGL10,GGL1# BLACK,TRIM2# |
58818-48060-C0 |
US $26.94 |
||
|
58821C
|
58821C
58821-48100-C0 Panel, Console, UpperCONSOLE, UPPER [12.2008 - 03.2012] AGL10,GGL1#,GYL1# BLACK,TRIM1#,2# |
58821-48100-C0 |
US $96.10 |
||
|
58821C
|
58821C
58821-48100-E0 Panel, Console, UpperCONSOLE, UPPER [12.2008 - 03.2012] AGL10,GGL1#,GYL1# DK. BROWN,TRIM0# |
58821-48100-E0 |
US $96.10 |
||
|
58827A
|
58827A
58827-48020-C0 Garnish, Console Box PocketCONSOLE BOX POCKET [12.2008 - 03.2012] AGL10,GGL1#,GYL1# BLACK,TRIM1#,2# |
58827-48020-C0 |
US $4.80 |
||
|
58827A
|
58827A
58827-48020-E0 Garnish, Console Box PocketCONSOLE BOX POCKET [12.2008 - 03.2012] AGL10,GGL1#,GYL1# DK. BROWN,TRIM0# |
58827-48020-E0 |
US $4.80 |
||
|
58835C
|
58835C
58835-48020 Ornament, Console BoxCONSOLE BOX [12.2008 - 08.2010] GGL16,GYL16 |
58835-48020 |
US $48.48 |
||
|
58839A
|
58839A
58839-48040 Cover, Console Box HoleCONSOLE BOX HOLE [12.2008 - 03.2012] GGL16,GYL16; AGL10,GGL10,15,GYL10,15 “ｖｅｒｓｉｏｎ Ｌ”; AGL10,GGL10,15,GYL10,15 本革シート仕様車 |
58839-48040 |
US $11.65 |
||
|
58983
|
58983
58983-48010 Retainer, Upper ConsoleUPPER CONSOLE [12.2008 - 03.2012] AGL10,GGL1#,GYL1# |
58983-48010 |
US $3.35 |
||
|
58984
|
58984
58984-48010 Retainer, Upper ConsoleUPPER CONSOLE [12.2008 - 03.2012] AGL10,GGL1#,GYL1# |
58984-48010 |
US $3.35 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.68 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.84 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.68 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
