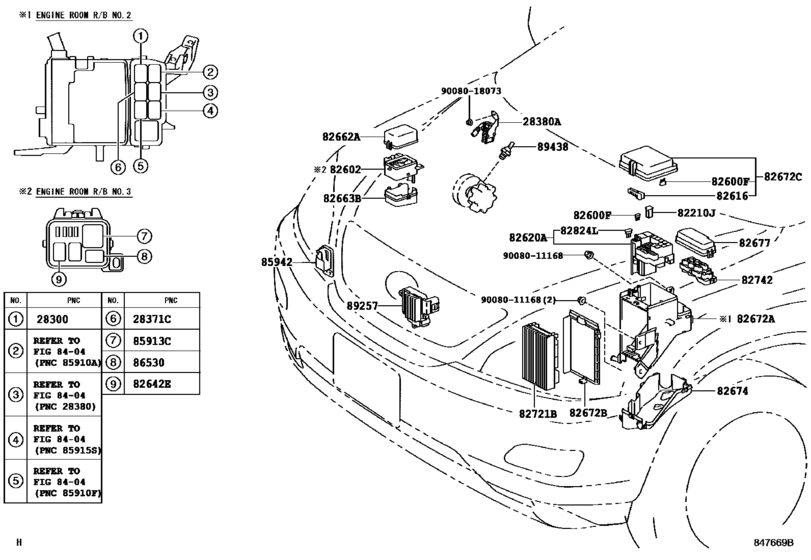

Switch & Relay & Computer ([02.2006 - ] ENGINE ROOM (0602- )NAP) Diagram Toyota LEXUS RX
- Year
- 2006 - 2009
- Sales region
- U.S.A.
- Frame
- GSU30
- grade
- STD
- body
- WG
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX350
- From
- 02.2006
- To
- 01.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- RX350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-0A010
Relay Assy, Starter
[02.2006 -] 2GRFE..GSU3#..NAP |
28300-0A010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-0A011 Relay Assy, Starter[02.2006 -] 2GRFE..GSU3#..NAP |
28300-0A011 |
from US $38.73 |
||
|
28371C
|
28371C
90080-87026
Relay, Water Pump
[02.2006 -] 2GRFE..GSU3#..NAP |
90080-87026 |
— | ||
| replacement | |||||
|
28371C
|
28371C
90987-02027 Relay[02.2006 -] 2GRFE..GSU3#..NAP |
90987-02027 |
from US $44.54 |
||
|
28380A
|
28380A
23080-31080 Resister, Fuel Pump[02.2006 - 06.2006] 2GRFE..GSU3#..NAP |
23080-31080 |
US $85.90 |
||
| replacement | |||||
|
28380A
|
28380A
23080-31140 Resister, Fuel Pump[02.2006 - 06.2006] 2GRFE..GSU3#..NAP |
23080-31140 |
US $85.90 |
||
|
28380A
|
28380A
23080-31140 Resister, Fuel Pump[07.2006 -] 2GRFE..GSU3#..NAP |
23080-31140 |
US $85.90 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[02.2006 - 03.2008] GSU3#..NAP 60A,TERMINAL:MALE,CANADA SPEC&SPORT PACKAGE&CRUISE CONTROL-RADAR CRUISE&HEADLAMP-D ISCHARGE & WITH(AFS); GSU3#..NAP 60A,TERMINAL:MALE,CANADA SPEC&SPORT PACKAGE&CRUISE CONTROL-RADAR CRUISE&HEADLAMP-D ISCHARGE & WITH(AFS)&SEAT |
90982-08202 |
US $11.20 |
||
|
82210J
|
82210J
90982-08246 Fusible Link[02.2006 - 01.2009] GSU3#..NAP 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[02.2006 - 01.2009] GSU3#..NAP 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[02.2006 - 01.2009] GSU3#..NAP 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[02.2006 - 01.2009] GSU3#..NAP 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[02.2006 - 01.2009] GSU3#..NAP 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90080-82050
Instrument Panel Fuse
[02.2006 - 01.2009] GSU3#..NAP 7.5A,MINI FUSE,INSTRUMENT PANEL J/B |
90080-82050 |
— | ||
|
82600F
|
82600F
90080-82051 Instrument Panel Fuse[02.2006 - 01.2009] GSU3#..NAP 10A,MINI FUSE,INSTRUMENT PANEL J/B |
90080-82051 |
US $1.46 |
||
|
82600F
|
82600F
90080-82052
Instrument Panel Fuse
[02.2006 - 01.2009] GSU3#..NAP 15A,MINI FUSE,INSTRUMENT PANEL J/B |
90080-82052 |
— | ||
|
82600F
|
82600F
90080-82053
Instrument Panel Fuse
[02.2006 - 01.2009] GSU3#..NAP 20A,MINI FUSE,INSTRUMENT PANEL J/B |
90080-82053 |
— | ||
|
82600F
|
82600F
90080-82054 Instrument Panel Fuse[02.2006 - 01.2009] GSU3#..NAP 30A,MINI FUSE,INSTRUMENT PANEL J/B |
90080-82054 |
US $1.60 |
||
|
82600F
|
82600F
90080-82055
Instrument Panel Fuse
[02.2006 - 01.2009] GSU3#..NAP 25A,MINI FUSE,INSTRUMENT PANEL J/B |
90080-82055 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[02.2006 -] GSU3#..NAP 7.5A,MINI FUSE,ENGINE ROOM J/B |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[02.2006 -] GSU3#..NAP 10A,MINI FUSE,ENGINE ROOM J/B |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[02.2006 -] GSU3#..NAP 15A,MINI FUSE,ENGINE ROOM J/B |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[02.2006 -] GSU3#..NAP 20A,MINI FUSE,ENGINE ROOM J/B |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[02.2006 -] GSU3#..NAP 25A,MINI FUSE,ENGINE ROOM J/B |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[02.2006 -] GSU3#..NAP 30A,MINI FUSE,ENGINE ROOM J/B |
90982-09013 |
from US $0.94 |
||
|
82602
|
82602
82602-48090 Block Sub-Assy, Relay[02.2006 - 01.2009] GSU3#..NAP |
82602-48090 |
US $24.46 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[02.2006 -] GSU3#..NAP |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-48040 Block Assy, Fusible Link[02.2006 - 01.2009] GSU3#..NAP |
82620-48040 |
US $81.54 |
||
|
82642E
|
82642E
90084-98032 Relay, Cooling Fan, No.2[02.2006 -] GSU3#..NAP |
90084-98032 |
US $81.54 |
||
|
82662A
|
82662A
82662-0E020
Cover, Relay Block, Upper, No.1
[02.2006 -] GSU3#..NAP |
82662-0E020 |
— | ||
|
82663B
|
82663B
82663-48040 Cover, Relay Block, Lower, No.3[02.2006 - 01.2009] GSU3#..NAP |
82663-48040 |
US $11.65 |
||
|
82672A
|
82672A
82672-48040 Cover, Junction Block[02.2006 - 01.2009] GSU3#..NAP |
82672-48040 |
from US $46.01 |
||
|
82672B
|
82672B
82672-48050 Cover, Junction Block[02.2006 - 01.2009] GSU3#..NAP |
82672-48050 |
US $17.33 |
||
|
82672C
|
82672C
82672-0E060
Cover, Junction Block
[02.2006 -] GSU3#..NAP |
82672-0E060 |
— | ||
|
82672C
|
82672C
82672-0E070
Cover, Junction Block
[02.2006 - 03.2008] GSU3#..NAP SPORT PACKAGE |
82672-0E070 |
— | ||
|
82674
|
82674
82674-48050 Cover, Junction Block Lower[02.2006 - 01.2009] GSU3#..NAP |
82674-48050 |
US $23.88 |
||
|
82677
|
82677
82677-0E020
Cover, Junction Block, Upper No.2
[02.2006 -] GSU3#..NAP |
82677-0E020 |
— | ||
|
82721B
|
82721B
82721-48050 Block, Engine Room Junction[02.2006 - 04.2007] GSU3#..NAP |
82721-48050 |
US $168.90 |
||
| replacement | |||||
|
82721B
|
82721B
82721-48051
Block, Engine Room Junction
[02.2006 - 04.2007] GSU3#..NAP |
82721-48051 |
— | ||
|
82721B
|
82721B
82721-48051
Block, Engine Room Junction
[05.2007 - 01.2009] GSU3#..NAP |
82721-48051 |
— | ||
|
82742
|
82742
82741-48050 Block, Engine Room Relay[02.2006 - 01.2009] GSU3#..NAP |
82741-48050 |
US $19.80 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[02.2006 - 01.2009] GSU3#..NAP |
82824-20140 |
US $3.32 |
||
|
85913C
|
85913C
90080-87025 Relay Assy (For Heater Blower Motor)DEFOGGER [02.2006 -] GSU3#..NAP |
90080-87025 |
US $39.46 |
||
|
85942
|
85942
85942-48010 Relay, Headlamp Cleaner ControlHEADLAMP CLEANER CONTROL [02.2006 - 01.2009] GSU3#..NAP CANADA SPEC; GSU3#..NAP CANADA SPEC&SEAT HEARTER-WITH; GSU3#..NAP SEAT HEARTER-WITH |
85942-48010 |
US $244.61 |
||
|
86530
|
86530
90080-87026
Relay, Water Pump
[02.2006 -] GSU3#..NAP |
90080-87026 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02027 Relay[02.2006 -] GSU3#..NAP |
90987-02027 |
from US $44.54 |
||
|
89257
|
89257
89257-30070 Computer, Cooling Fan[02.2006 - 01.2009] GSU3#..NAP |
89257-30070 |
from US $226.08 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[02.2006 - 01.2009] GSU3#..NAP |
89438-33010 |
from US $30.23 |
||
|
9008011168
|
9008011168
90080-11168
New Genuine Part
|
90080-11168 |
— | ||
|
9008018073
|
9008018073
90080-18073 NUT WWASHER |
90080-18073 |
US $0.61 |
||
