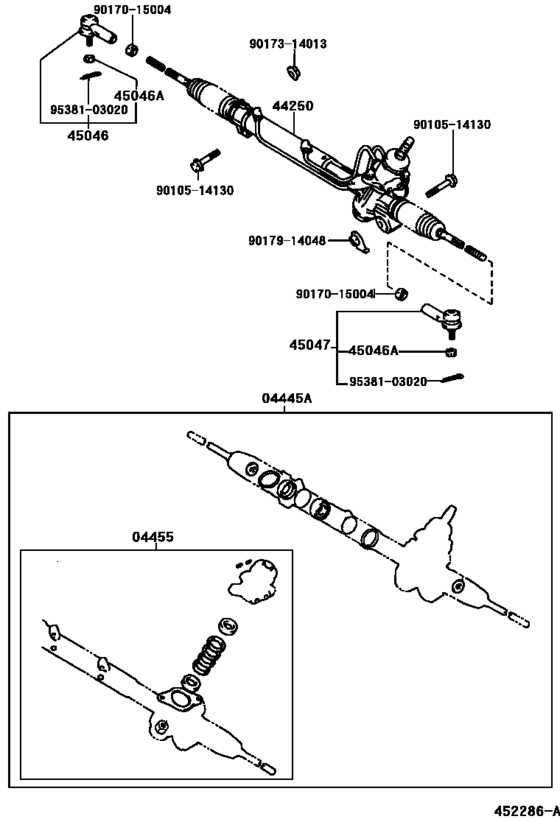

Front Steering Gear & Link ([01.1998 - 07.2000] (9801-0007)) Diagram Toyota LEXUS RX
- Year
- 1998 - 2003
- Sales region
- U.S.A.
- Frame
- MCU15
- body
- WG
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 01.1998
- To
- 02.2003
- Vehicle Model
- RX300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-33080 Gasket Kit, Power Steering Gear(For Rack & Pinion)[01.1998 - 07.2000] MCU1# |
04445-33080 |
from US $87.36 |
||
|
04445A
|
04445A
04445-48030 Gasket Kit, Power Steering Gear(For Rack & Pinion)POWER STEERING GEAR(FOR RACK & PINION) [07.2000 -] MCU1# |
04445-48030 |
US $82.99 |
||
|
04455
|
04455
04455-33020
Gasket Kit, Power Steering Control Valve Overhole
[01.1998 -] MCU1# |
04455-33020 |
— | ||
|
44250
|
44250
44250-48020 Gear Assy, Power Steering(For Rack & Pinion)[01.1998 - 04.1999] MCU1# |
44250-48020 |
US $1,438.53 |
||
| replacement | |||||
|
44250
|
44250
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[01.1998 - 04.1999] MCU1# |
44250-48041 |
US $1,438.53 |
||
|
44250
|
44250
44250-48021 Gear Assy, Power Steering(For Rack & Pinion)[04.1999 - 07.2000] MCU1# |
44250-48021 |
US $1,438.53 |
||
| replacement | |||||
|
44250
|
44250
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[04.1999 - 07.2000] MCU1# |
44250-48041 |
US $1,438.53 |
||
|
44250
|
44250
44250-48040
Gear Assy, Power Steering(For Rack & Pinion)
[07.2000 - 11.2000] MCU1# |
44250-48040 |
— | ||
| replacement | |||||
|
44250
|
44250
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[07.2000 - 11.2000] MCU1# |
44250-48041 |
US $1,438.53 |
||
|
44250
|
44250
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[11.2000 - 09.2002] MCU1# |
44250-48041 |
US $1,438.53 |
||
|
45046
|
45046
45046-29255 End Sub-Assy, Tie Rod[01.1998 -] MCU1# |
45046-29255 |
from US $44.48 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.1998 -] MCU1# |
90171-12028 |
from US $1.37 |
||
|
45047
|
45047
45046-29255 End Sub-Assy, Tie Rod[01.1998 -] MCU1# |
45046-29255 |
from US $44.48 |
||
|
9010514130
|
9010514130
90105-14130 New Genuine Part |
90105-14130 |
US $6.46 |
||
|
9017015004
|
9017015004
90170-15004 Nut, Rack End Lock |
90170-15004 |
US $2.87 |
||
|
9017314013
|
9017314013
90173-14013 New Genuine Part |
90173-14013 |
US $3.32 |
||
|
9017914048
|
9017914048
90179-14048 Nut(For Front Suspension Lower Arm) |
90179-14048 |
US $2.89 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
