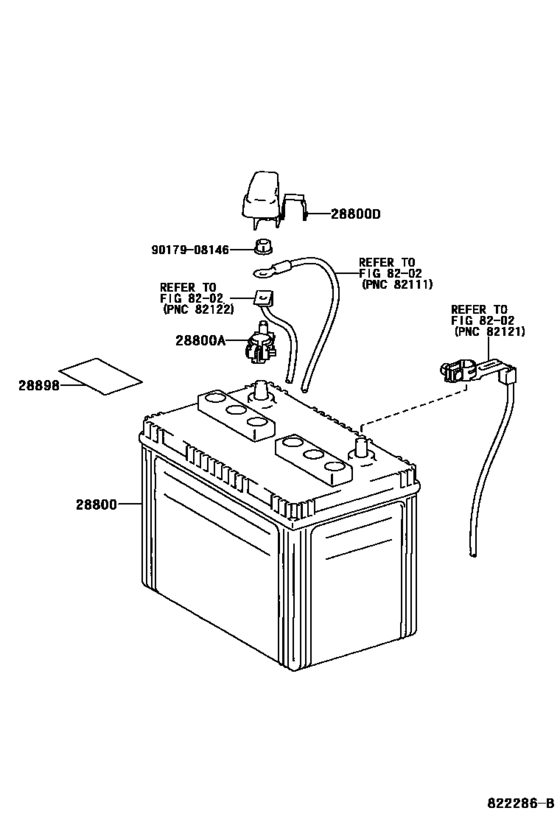

Battery & Battery Cable ([07.2000 - ] (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-64132
Battery
[07.2000 -] 1MZFE..MCU15 80D26L |
28800-64132 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-67102
Battery
[07.2000 -] 1MZFE..MCU15 80D26L |
28800-67102 |
— | ||
|
28800A
|
28800A
90982-05058 Terminal, Battery Positive[07.2000 -] 1MZFE..MCU15 |
90982-05058 |
from US $15.41 |
||
|
28800D
|
28800D
82821-20350 Cover, Connector(For Battery Terminal)[07.2000 -] 1MZFE..MCU15 |
82821-20350 |
from US $9.48 |
||
|
28898
|
28898
28898-46010 Plate, Battery[07.2000 -] 1MZFE..MCU15..LHD NORWAY SPEC |
28898-46010 |
US $2.91 |
||
|
28898
|
28898
28898-46020
Plate, Battery
[07.2000 -] 1MZFE..MCU15 |
28898-46020 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
