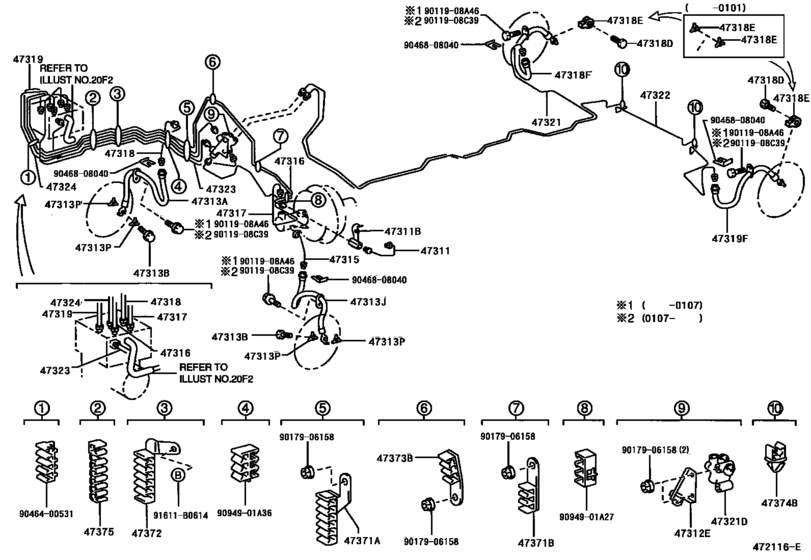

Brake Tube & Clamp ([07.2000 - ] (0007- )LHD) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-48010 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [07.2000 -] MCU15..LHD |
47311-48010 |
US $5.24 |
||
|
47311B
|
47311B
90412-10237 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [07.2000 -] MCU15..LHD |
90412-10237 |
US $10.63 |
||
|
47312E
|
47312E
90904-12038 Way, No.2(For Front Brake Tube)[07.2000 -] MCU15 |
90904-12038 |
US $11.36 |
||
|
47313A
|
47313A
90947-02875 Hose, Flexible, No.1(For Front)[07.2000 -] MCU15 |
90947-02875 |
US $26.03 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[07.2000 - 01.2001] MCU15 |
90401-10015 |
from US $3.58 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[01.2001 -] MCU15 |
90401-10058 |
from US $3.94 |
||
|
47313J
|
47313J
90947-02876 Hose, Flexible, No.1(For Front)[07.2000 -] MCU15 |
90947-02876 |
US $26.03 |
||
|
47313P
|
47313P
47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)[07.2000 - 01.2001] MCU15 |
47389-30010 |
from US $1.19 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[01.2001 -] MCU15 |
47389-50020 |
from US $5.01 |
||
|
47315
|
47315
47315-48010 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [07.2000 -] MCU15..LHD |
47315-48010 |
US $19.80 |
||
|
47316
|
47316
47316-48100 Tube, Front Brake, No.6FRONT BRAKE, NO.6 [07.2000 -] MCU15..LHD |
47316-48100 |
US $36.25 |
||
|
47317
|
47317
47317-48100 Tube, Front Brake, No.7FRONT BRAKE, NO.7 [07.2000 -] MCU15..LHD |
47317-48100 |
US $39.02 |
||
|
47318
|
47318
47318-48040 Tube, Front Brake, No.8[07.2000 - 07.2002] MCU15 |
47318-48040 |
US $21.99 |
||
|
47318
|
47318
47318-48120 Tube, Front Brake, No.8FRONT BRAKE, NO.8 [07.2002 -] MCU15..LHD |
47318-48120 |
US $21.99 |
||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[07.2000 - 01.2001] MCU15 |
90401-10015 |
from US $3.58 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[01.2001 -] MCU15 |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)[07.2000 - 01.2001] MCU15 |
47389-30010 |
from US $1.19 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[01.2001 -] MCU15 |
47389-50020 |
from US $5.01 |
||
|
47318F
|
47318F
90947-02970 Hose, Flexible(For Rear Rh)[07.2000 -] MCU15 |
90947-02970 |
US $28.83 |
||
|
47319
|
47319
47319-48080 Tube, Front Brake, No.9FRONT BRAKE, NO.9 [07.2000 -] MCU15..LHD |
47319-48080 |
US $24.46 |
||
|
47319F
|
47319F
90947-02971 Hose, Flexible(For Rear Lh)[07.2000 -] MCU15 |
90947-02971 |
US $22.71 |
||
|
47321
|
47321
47321-48010
Tube, Rear Brake, No.1
[07.2000 -] MCU15 |
47321-48010 |
— | ||
|
47321D
|
47321D
90412-10140 Valve Assy, Proportioning[07.2000 -] MCU15 |
90412-10140 |
from US $32.50 |
||
|
47322
|
47322
47322-48020 Tube, Rear Brake, No.2[07.2000 -] MCU15 |
47322-48020 |
US $63.92 |
||
|
47323
|
47323
47323-48100 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [07.2000 -] MCU15..LHD |
47323-48100 |
US $19.80 |
||
|
47324
|
47324
47324-48100 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [07.2000 -] MCU15..LHD |
47324-48100 |
US $24.46 |
||
|
47371A
|
47371A
47371-48070 Clamp, Brake Tube, No.1BRAKE TUBE, NO.1 [07.2000 -] MCU15..LHD |
47371-48070 |
US $11.50 |
||
|
47371B
|
47371B
47371-48090 Clamp, Brake Tube, No.6BRAKE TUBE, NO.6 [07.2000 -] MCU15..LHD |
47371-48090 |
US $6.84 |
||
|
47372
|
47372
47371-48060 Clamp, Brake Tube, No.2BRAKE TUBE, NO.2 [07.2000 -] MCU15..LHD |
47371-48060 |
US $13.25 |
||
|
47373B
|
47373B
47371-48080 Clamp, Brake Tube, No.3BRAKE TUBE, NO.3 [07.2000 -] MCU15..LHD |
47371-48080 |
US $6.84 |
||
|
47374B
|
47374B
47371-48050 Clamp, Brake Tube, No.4[07.2000 -] MCU15 |
47371-48050 |
US $2.62 |
||
|
47375
|
47375
47372-33010 Clamp, Brake Tube, No.1[07.2000 -] MCU15..LHD |
47372-33010 |
US $5.68 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $1.43 |
||
|
9011908C39
|
9011908C39
90119-08C39 New Genuine Part |
90119-08C39 |
US $1.43 |
||
|
9094901A27
|
9094901A27
90949-01A27 New Genuine Part |
90949-01A27 |
US $3.79 |
||
|
9094901A36
|
9094901A36
90949-01A36 New Genuine Part |
90949-01A36 |
US $8.30 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9046400531
|
9046400531
90464-00531 Clamp, Brake Tube, No.4 |
90464-00531 |
US $31.10 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
