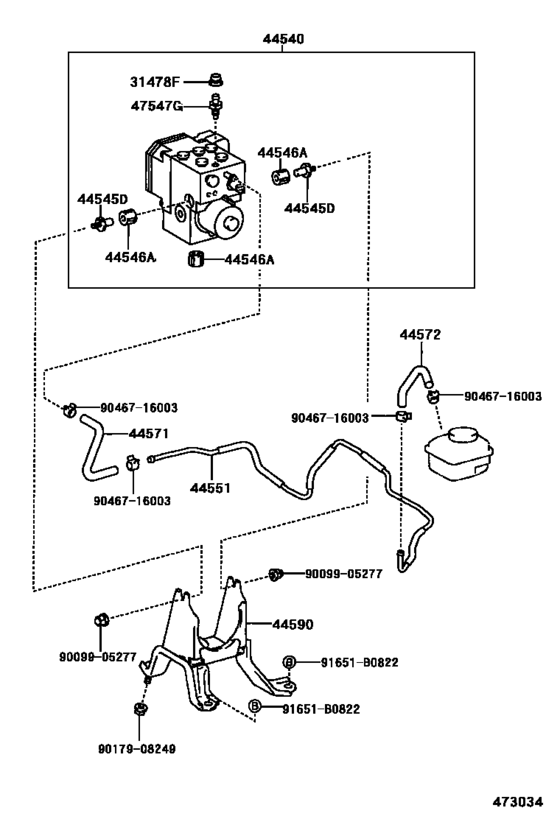

Brake Tube & Clamp ([07.2000 - ] (0007- )LHD) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31478F
|
31478F
31478-30010 Bleeder Plug Cap[07.2000 -] MCU15 |
31478-30010 |
from US $1.60 |
||
|
44540
|
44540
44050-48020
Actuator Assy, Abs & Traction
[07.2000 -] MCU15 |
44050-48020 |
— | ||
|
44545D
|
44545D
44545-42020 Holder, Brake Actuator Bolt[07.2000 -] MCU15 |
44545-42020 |
US $7.51 |
||
|
44546A
|
44546A
44546-42020 Cushion, Brake Actuator Bolt[07.2000 -] MCU15 |
44546-42020 |
US $7.16 |
||
|
44551
|
44551
44551-48010 Tube, Brake Actuator, No.1BRAKE ACTUATOR, NO.1 [07.2000 - 10.2000] MCU15..LHD |
44551-48010 |
US $45.43 |
||
|
44551
|
44551
44551-48011
Tube, Brake Actuator, No.1
[10.2000 -] MCU15..LHD |
44551-48011 |
— | ||
|
44571
|
44571
44571-48020
Hose, Brake Actuator
[07.2000 -] MCU15..LHD |
44571-48020 |
— | ||
|
44572
|
44572
44571-48030 Hose, Brake Actuator, No.2BRAKE ACTUATOR, NO.2 [07.2000 - 10.2000] MCU15..LHD |
44571-48030 |
US $19.95 |
||
|
44572
|
44572
44571-48031
Hose, Brake Actuator, No.2
[10.2000 -] MCU15..LHD |
44571-48031 |
— | ||
|
44590
|
44590
44590-48010 Bracket Assy, Brake Actuator[07.2000 -] MCU15 |
44590-48010 |
US $49.07 |
||
|
47547G
|
47547G
47547-27030 Plug, Bleeder(For Front Disc Brake)[07.2000 -] MCU15 |
47547-27030 |
from US $3.10 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9009905277
|
9009905277
90099-05277
New Genuine Part
|
90099-05277 |
— | ||
|
9017908249
|
9017908249
90179-08249 New Genuine Part |
90179-08249 |
US $1.79 |
||
|
9046716003
|
9046716003
90467-16003
Clip Or Clamp(For Ventilation Hose)
|
90467-16003 |
— | ||
| replacement | |||||
|
9046716003
|
9046716003
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
