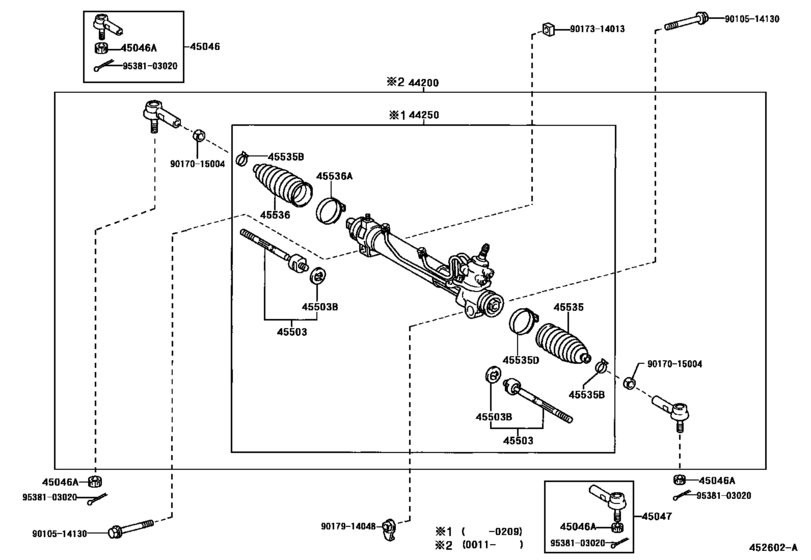

Front Steering Gear & Link ([07.2000 - ] (0007- )LHD) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-48051 Link Assy, Power SteeringPOWER STEERING [11.2000 -] MCU15..LHD |
44200-48051 |
US $1,543.36 |
||
| replacement | |||||
|
44200
|
44200
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[11.2000 -] MCU15..LHD |
44250-48041 |
US $1,438.53 |
||
|
44250
|
44250
44250-48050 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [07.2000 - 11.2000] MCU15..LHD |
44250-48050 |
US $1,438.53 |
||
| replacement | |||||
|
44250
|
44250
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[07.2000 - 11.2000] MCU15..LHD |
44250-48041 |
US $1,438.53 |
||
|
44250
|
44250
44250-48051 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [11.2000 - 09.2002] MCU15..LHD |
44250-48051 |
US $1,438.53 |
||
| replacement | |||||
|
44250
|
44250
44250-48041 Gear Assy, Power Steering(For Rack & Pinion)[11.2000 - 09.2002] MCU15..LHD |
44250-48041 |
US $1,438.53 |
||
|
45046
|
45046
45046-29255 End Sub-Assy, Tie Rod[07.2000 -] MCU15 |
45046-29255 |
from US $44.48 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.2000 -] MCU15 |
90171-12028 |
from US $1.37 |
||
|
45047
|
45047
45046-29255 End Sub-Assy, Tie Rod[07.2000 -] MCU15 |
45046-29255 |
from US $44.48 |
||
|
45503
|
45503
45503-49025
End Sub-Assy, Steering Rack
[07.2000 - 11.2000] MCU15 |
45503-49025 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-49095 End Sub-Assy, Steering Rack[07.2000 - 11.2000] MCU15 |
45503-49095 |
from US $43.74 |
||
|
45503
|
45503
45503-49095 End Sub-Assy, Steering Rack[11.2000 -] MCU15 |
45503-49095 |
from US $43.74 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[07.2000 - 11.2000] MCU15 OD=37 |
90214-14002 |
US $9.86 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[11.2000 -] MCU15 OD=35.2 |
90214-14009 |
from US $1.68 |
||
|
45535
|
45535
45535-06020
Boot, Steering Rack, No.1
[07.2000 - 09.2001] MCU15 (L) |
45535-06020 |
— | ||
|
45535
|
45535
45535-07010 Boot, Steering Rack, No.1[09.2001 -] MCU15 (L) |
45535-07010 |
from US $10.73 |
||
|
45535
|
45535
45535-33020 Boot, Steering Rack, No.1[07.2000 -] MCU15 (J) |
45535-33020 |
from US $15.59 |
||
|
45535B
|
45535B
90467-19017
Clip(For Steering Rack Boot)
[07.2000 - 04.2002] MCU15 |
90467-19017 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2000 - 04.2002] MCU15 |
90467-19021 |
from US $1.38 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 -] MCU15 |
90467-19021 |
from US $1.38 |
||
|
45535D
|
45535D
90460-58006 Clamp(For Steering Rack Boot No.1)[07.2000 -] MCU15 |
90460-58006 |
US $6.63 |
||
|
45536
|
45536
45535-06020
Boot, Steering Rack, No.1
[07.2000 - 09.2001] MCU15 (L) |
45535-06020 |
— | ||
|
45536
|
45536
45535-07010 Boot, Steering Rack, No.1[09.2001 -] MCU15 (L) |
45535-07010 |
from US $10.73 |
||
|
45536
|
45536
45535-33020 Boot, Steering Rack, No.1[07.2000 -] MCU15 (J) |
45535-33020 |
from US $15.59 |
||
|
45536A
|
45536A
90460-58006 Clamp(For Steering Rack Boot No.1)[07.2000 -] MCU15 |
90460-58006 |
US $6.63 |
||
|
9010514130
|
9010514130
90105-14130 New Genuine Part |
90105-14130 |
US $6.46 |
||
|
9017015004
|
9017015004
90170-15004 Nut, Rack End Lock |
90170-15004 |
US $2.87 |
||
|
9017314013
|
9017314013
90173-14013 New Genuine Part |
90173-14013 |
US $3.32 |
||
|
9017914048
|
9017914048
90179-14048 Nut(For Front Suspension Lower Arm) |
90179-14048 |
US $2.89 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
