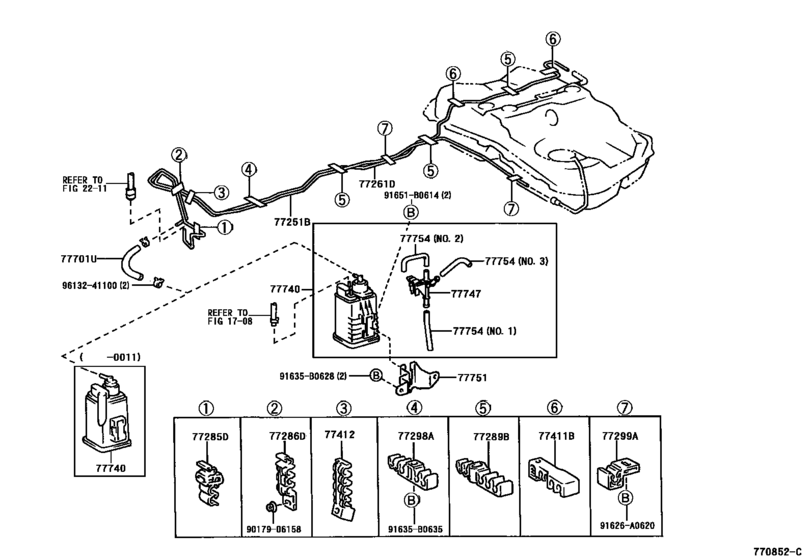

Fuel Tank & Tube ([07.2000 - ] (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-48060 Tube, Fuel MainFUEL MAIN [07.2000 -] MCU15..LHD |
77251-48060 |
US $85.90 |
||
|
77261D
|
77261D
77261-48050 Tube, Fuel Tank To CanisterFUEL TANK TO CANISTER [07.2000 -] MCU15..LHD |
77261-48050 |
US $50.67 |
||
|
77285D
|
77285D
77285-48010 Clamp, Fuel Tube, No.1[07.2000 -] MCU15 |
77285-48010 |
US $9.17 |
||
|
77286D
|
77286D
77286-48010 Clamp, Fuel Tube, No.2[07.2000 -] MCU15 |
77286-48010 |
US $4.95 |
||
|
77289B
|
77289B
77289-48010 Clamp, Fuel Tube, No.3[07.2000 -] MCU15 |
77289-48010 |
US $8.59 |
||
|
77298A
|
77298A
77298-48010 Clamp, Fuel Tube, No.4[07.2000 -] MCU15 |
77298-48010 |
US $7.43 |
||
|
77299A
|
77299A
77299-48010 Clamp, Fuel Tube, No.5[07.2000 -] MCU15 |
77299-48010 |
US $3.20 |
||
|
77411B
|
77411B
77411-48010 Support, Fuel Tube Grommet, No.1[07.2000 -] MCU15 |
77411-48010 |
US $6.99 |
||
|
77412
|
77412
77412-48010 Support, Fuel Tube Grommet, No.2[07.2000 -] MCU15 |
77412-48010 |
US $16.02 |
||
|
77701U
|
77701U
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[07.2000 -] MCU15 *H,L=150 |
95333-06020 |
— | ||
| replacement | |||||
|
77701U
|
77701U
95337-06020 Hose, Differential Pressure Control[07.2000 -] MCU15 *H,L=150 |
95337-06020 |
from US $10.21 |
||
|
77740
|
77740
77730-48010 Canister Assy, Charcoal[11.2000 -] MCU15 |
77730-48010 |
US $155.79 |
||
|
77740
|
77740
77740-63010 Canister Assy, Charcoal[07.2000 - 11.2000] MCU15 |
77740-63010 |
US $96.10 |
||
|
77747
|
77747
77747-48010 Pipe, Charcoal Canister, No.1[11.2000 -] MCU15 |
77747-48010 |
US $3.49 |
||
|
77751
|
77751
77751-48030 Bracket, Charcoal Canister Base[07.2000 -] MCU15 |
77751-48030 |
US $16.60 |
||
|
77754
|
77754
77754-48010 Hose, Charcoal Canister Outlet, No.1[11.2000 -] MCU15 NO.1 |
77754-48010 |
US $5.53 |
||
|
77754
|
77754
77754-48020 Hose, Charcoal Canister Outlet, No.1[11.2000 -] MCU15 NO.2 |
77754-48020 |
US $6.12 |
||
|
77754
|
77754
77754-48030 Hose, Charcoal Canister Outlet, No.1[11.2000 -] MCU15 NO.3 |
77754-48030 |
US $4.66 |
||
|
91626A0620
|
91626A0620
91626-A0620 New Genuine Part |
91626-A0620 |
US $0.87 |
||
|
91635B0628
|
91635B0628
91635-B0628 New Genuine Part |
91635-B0628 |
US $1.46 |
||
| replacement | |||||
|
91635B0628
|
91635B0628
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.66 |
||
|
91635B0635
|
91635B0635
91635-B0635 BOLT WWASHER |
91635-B0635 |
US $1.75 |
||
| replacement | |||||
|
91635B0635
|
91635B0635
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.79 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
