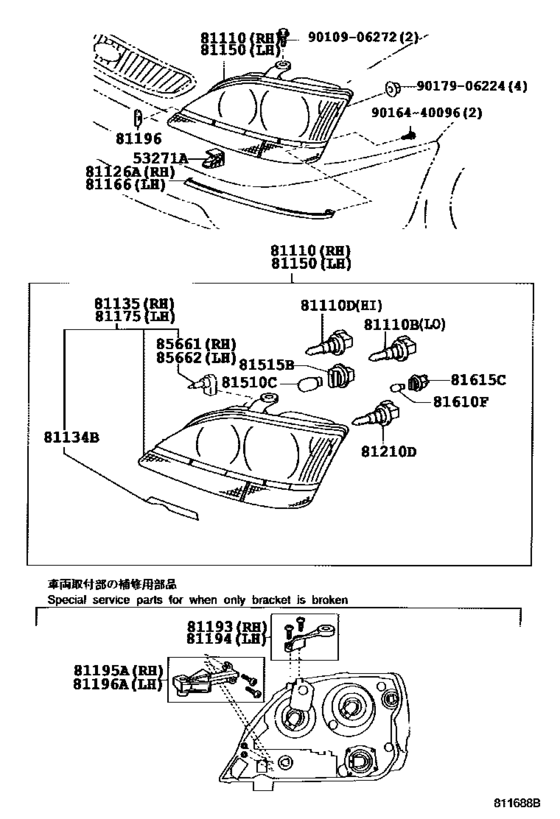

Headlamp ([07.2000 - ] (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[07.2000 -] MCU15 |
53271-12060 |
from US $7.70 |
||
|
81110
|
81110
81110-48090
Headlamp Assy, Rh
[07.2000 -] MCU15..LHD |
81110-48090 |
— | ||
|
81110B
|
81110B
90080-81040
Bulb(For Headlamp, No.1)
[07.2000 -] MCU15 12V 51W |
90080-81040 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13047 Bulb (HB4)[07.2000 -] MCU15 12V 51W |
90981-13047 |
from US $15.29 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[07.2000 -] MCU15 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[07.2000 -] MCU15 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81126A
|
81126A
81126-48011 Plate, Headlamp, Rh[07.2000 -] MCU15 |
81126-48011 |
US $18.17 |
||
|
81134B
|
81134B
81134-48010 Tape, Headlamp Plate[07.2000 -] MCU15 |
81134-48010 |
US $10.48 |
||
|
81135
|
81135
81130-48090
Unit Assy, Headlamp, Rh
[07.2000 -] MCU15..LHD |
81130-48090 |
— | ||
|
81150
|
81150
81150-48090
Headlamp Assy, Lh
[07.2000 -] MCU15..LHD |
81150-48090 |
— | ||
|
81166
|
81166
81166-48011 Plate, Headlamp, Lh[07.2000 -] MCU15 |
81166-48011 |
US $18.17 |
||
|
81175
|
81175
81170-48090
Unit Assy, Headlamp, Lh
[07.2000 -] MCU15..LHD |
81170-48090 |
— | ||
|
81193
|
81193
81193-48010 Retainer, Headlamp Protector, Upper Rh[07.2000 -] MCU15 |
81193-48010 |
from US $3.72 |
||
|
81194
|
81194
81194-48010 Retainer, Headlamp Protector, Upper Rh[07.2000 -] MCU15 |
81194-48010 |
from US $3.76 |
||
|
81195A
|
81195A
81195-48010 Retainer, Headlamp Protector, Lower Rh[07.2000 -] MCU15 |
81195-48010 |
US $4.66 |
||
|
81196
|
81196
81196-48010 Retainer, Headlamp[07.2000 -] MCU15 |
81196-48010 |
from US $3.92 |
||
|
81196A
|
81196A
81196-48020 Retainer, Headlamp Protector, Lower Lh[07.2000 -] MCU15 |
81196-48020 |
US $4.66 |
||
|
81210D
|
81210D
90080-81040
Bulb(For Headlamp, No.1)
[07.2000 -] MCU15 12V 51W |
90080-81040 |
— | ||
| replacement | |||||
|
81210D
|
81210D
90981-13047 Bulb (HB4)[07.2000 -] MCU15 12V 51W |
90981-13047 |
from US $15.29 |
||
|
81510C
|
81510C
90981-13043 Bulb (12V 21W)[07.2000 -] MCU15 12V 21W |
90981-13043 |
from US $3.24 |
||
|
81515B
|
81515B
90075-99128 Cover, Headlamp Socket[07.2000 -] MCU15 |
90075-99128 |
from US $6.44 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[07.2000 -] MCU15 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[07.2000 -] MCU15 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615C
|
81615C
90075-60016
Plug Assy, Front Turn Signal Lamp
[07.2000 -] MCU15 |
90075-60016 |
— | ||
| replacement | |||||
|
81615C
|
81615C
99159-10228 Plug Assy, Front Turn Signal Lamp[07.2000 -] MCU15 |
99159-10228 |
from US $6.42 |
||
|
85661
|
85661
85661-48010 Motor, Headlamp Leveling, Rh[07.2000 -] MCU15 |
85661-48010 |
US $224.22 |
||
|
85662
|
85662
85661-48010 Motor, Headlamp Leveling, Rh[07.2000 -] MCU15 |
85661-48010 |
US $224.22 |
||
|
9010906272
|
9010906272
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.84 |
||
|
9016440096
|
9016440096
90164-40096 SCREW BINDING |
90164-40096 |
from US $0.38 |
||
|
9017906224
|
9017906224
90179-06224
Direct
|
90179-06224 |
— | ||
| replacement | |||||
|
9017906224
|
9017906224
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
