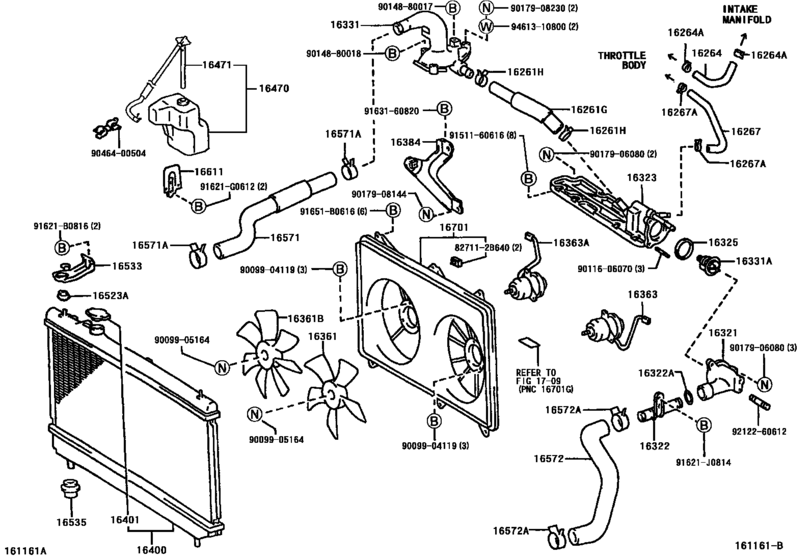

Radiator & Water Outlet ([07.2000 - ] (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261G
|
16261G
16261-20010 Hose, Water By-Pass, No.1[07.2000 -] 1MZFE..MCU15 |
16261-20010 |
from US $18.62 |
||
|
16261H
|
16261H
90467-28007 Clip Or Clamp(For Ventilation Hose)[04.2002 -] 1MZFE..MCU15 |
90467-28007 |
from US $3.06 |
||
|
16261H
|
16261H
90467-28008 Clip(For Water By-Pass Hose No.1)[07.2000 - 04.2002] 1MZFE..MCU15 |
90467-28008 |
US $4.95 |
||
| replacement | |||||
|
16261H
|
16261H
90467-28007 Clip Or Clamp(For Ventilation Hose)[07.2000 - 04.2002] 1MZFE..MCU15 |
90467-28007 |
from US $3.06 |
||
|
16264
|
16264
16264-20020 Hose, Water By-Pass, No.2[07.2000 -] 1MZFE..MCU15 |
16264-20020 |
US $10.57 |
||
|
16264A
|
16264A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.2000 -] 1MZFE..MCU15 |
96135-41300 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[07.2000 -] 1MZFE..MCU15 |
96135-51300 |
from US $2.13 |
||
|
16267
|
16267
16267-20020 Hose, Water By-Pass, No.3[07.2000 -] 1MZFE..MCU15 |
16267-20020 |
from US $16.34 |
||
|
16267A
|
16267A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.2000 -] 1MZFE..MCU15 |
96135-41300 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51300 Clamp, Hose[07.2000 -] 1MZFE..MCU15 |
96135-51300 |
from US $2.13 |
||
|
16321
|
16321
16321-20030 Inlet, Water[07.2000 -] 1MZFE..MCU15 |
16321-20030 |
from US $49.98 |
||
|
16322
|
16322
16322-20031 Pipe, Water Inlet[07.2000 -] 1MZFE..MCU15 |
16322-20031 |
from US $35.80 |
||
|
16322A
|
16322A
96761-35031 Ring, O(For Water Inlet Pipe)[07.2000 -] 1MZFE..MCU15 |
96761-35031 |
from US $2.57 |
||
|
16323
|
16323
16323-20020 Housing, Water Inlet[07.2000 -] 1MZFE..MCU15 |
16323-20020 |
from US $123.75 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[07.2000 -] 1MZFE..MCU15 |
16325-62010 |
from US $4.06 |
||
|
16331
|
16331
16331-20030 Outlet, Water[07.2000 -] 1MZFE..MCU15 |
16331-20030 |
US $174.72 |
||
|
16331A
|
16331A
90916-03084
Thermostat
[07.2000 -] 1MZFE..MCU15 *WAX 82-95 |
90916-03084 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03129 Thermostat[07.2000 -] 1MZFE..MCU15 *WAX 82-95 |
90916-03129 |
from US $20.42 |
||
|
16361
|
16361
16361-20070 Fan[07.2000 -] 1MZFE..MCU15 |
16361-20070 |
from US $61.59 |
||
|
16361B
|
16361B
16361-20080 Fan, No.2NO.2 [07.2000 -] 1MZFE..MCU15 |
16361-20080 |
US $85.90 |
||
|
16363
|
16363
16363-20230 Motor, Cooling FanCOOLING FAN [07.2000 -] 1MZFE..MCU15 |
16363-20230 |
US $362.54 |
||
|
16363A
|
16363A
16363-20230 Motor, Cooling FanCOOLING FAN [07.2000 -] 1MZFE..MCU15 |
16363-20230 |
US $362.54 |
||
|
16384
|
16384
16384-20020 Bracket, Fan Belt Adjusting Bar[07.2000 -] 1MZFE..MCU15 |
16384-20020 |
US $20.09 |
||
|
16400
|
16400
16400-20200 Radiator Assy[07.2000 -] 1MZFE..MCU15 |
16400-20200 |
US $808.08 |
||
|
16401
|
16401
16401-62100
Cap Sub-Assy, Radiator
[07.2000 -] 1MZFE..MCU15 |
16401-62100 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-31520
Radiator Cap Sub-Assy (108kPa)
[07.2000 -] 1MZFE..MCU15 |
16401-31520 |
— | ||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[07.2000 -] 1MZFE..MCU15 |
16401-36020 |
from US $16.31 |
||
|
16470
|
16470
16470-20060 Tank Assy, Radiator Reserve[07.2000 -] 1MZFE..MCU15 |
16470-20060 |
US $240.27 |
||
|
16471
|
16471
16405-20040
Cap Sub-Assy, Reserve Tank
[07.2000 -] 1MZFE..MCU15 |
16405-20040 |
— | ||
|
16523A
|
16523A
16523-74010 Cushion, Sub-Radiator Support[07.2000 -] 1MZFE..MCU15 |
16523-74010 |
from US $5.23 |
||
|
16533
|
16533
16533-74310 Support, Radiator, Upper[07.2000 -] 1MZFE..MCU15 |
16533-74310 |
US $30.93 |
||
|
16535
|
16535
16535-20010 Support, Radiator, Lower[07.2000 -] 1MZFE..MCU15 |
16535-20010 |
from US $6.38 |
||
|
16571
|
16571
16571-20030 Hose, Radiator, Inlet[07.2000 -] 1MZFE..MCU15 |
16571-20030 |
from US $28.26 |
||
|
16571A
|
16571A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[06.2002 -] 1MZFE..MCU15 |
90466-35001 |
from US $5.38 |
||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[04.2002 - 06.2002] 1MZFE..MCU15 |
90467-37005 |
from US $3.96 |
||
|
16571A
|
16571A
90467-37006
Clamp Or Clip, Hose(For Radiator Inlet)
[07.2000 - 04.2002] 1MZFE..MCU15 |
90467-37006 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[07.2000 - 04.2002] 1MZFE..MCU15 |
90467-37005 |
from US $3.96 |
||
|
16572
|
16572
16572-20060 Hose, Radiator, Outlet[07.2000 -] 1MZFE..MCU15 |
16572-20060 |
from US $26.50 |
||
|
16572A
|
16572A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[06.2002 -] 1MZFE..MCU15 |
90466-35001 |
from US $5.38 |
||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[04.2002 - 06.2002] 1MZFE..MCU15 |
90467-37005 |
from US $3.96 |
||
|
16572A
|
16572A
90467-37006
Clamp Or Clip, Hose(For Radiator Inlet)
[07.2000 - 04.2002] 1MZFE..MCU15 |
90467-37006 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[07.2000 - 04.2002] 1MZFE..MCU15 |
90467-37005 |
from US $3.96 |
||
|
16611
|
16611
16611-74170 Bracket, Radiator Reserve Tank[07.2000 -] 1MZFE..MCU15 |
16611-74170 |
US $20.97 |
||
|
16701
|
16701
16711-20120 Shroud Sub-Assy, FanFAN [07.2000 -] 1MZFE..MCU15 |
16711-20120 |
US $131.04 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91621G0612
|
91621G0612
91621-G0612 New Genuine Part |
91621-G0612 |
US $2.15 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.97 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011606070
|
9011606070
90116-06070 BOLT |
90116-06070 |
US $2.33 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9014880018
|
9014880018
90148-80018 New Genuine Part |
90148-80018 |
US $1.49 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.47 |
||
|
9017908144
|
9017908144
90179-08144 New Genuine Part |
90179-08144 |
US $1.89 |
||
| replacement | |||||
|
9017908144
|
9017908144
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.33 |
||
|
9046400504
|
9046400504
90464-00504 New Genuine Part |
90464-00504 |
US $3.14 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
|
9163160820
|
9163160820
91631-60820 New Genuine Part |
91631-60820 |
US $1.75 |
||
| replacement | |||||
|
9163160820
|
9163160820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.78 |
||
|
9212260612
|
9212260612
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
92122-60612 |
US $1.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
