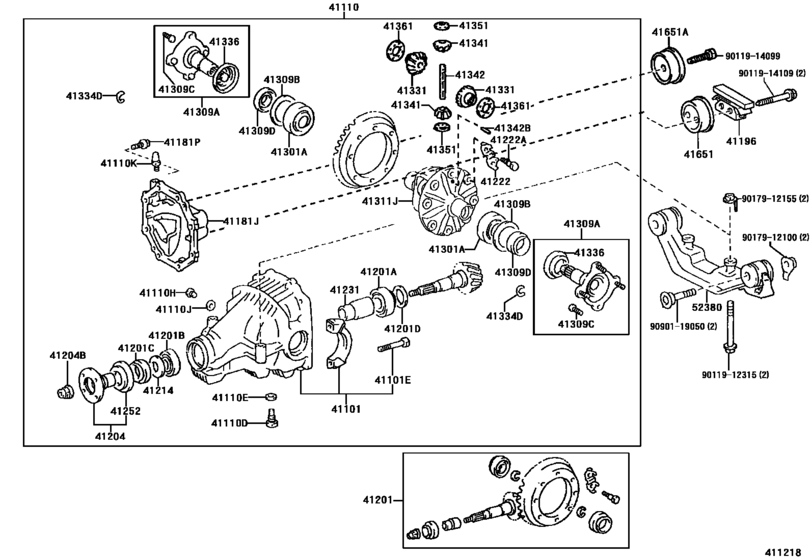

Rear Axle Housing & Differential ([07.2000 - ] (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-12050
Carrier Sub-Assy, Differential, Rear
[07.2000 -] MCU15 |
41101-12050 |
— | ||
|
41101E
|
41101E
90105-12114 Bolt (For Rear Differential Carrier)[07.2000 -] MCU15 |
90105-12114 |
US $5.73 |
||
|
41110
|
41110
41110-48030 Carrier Assy, Differential, Rear[07.2000 - 06.2001] MCU15 *FGR=41:14=2.928 |
41110-48030 |
US $2,751.84 |
||
|
41110
|
41110
41110-48060 Carrier Assy, Differential, RearDIFFERENTIAL, REAR [06.2001 -] MCU15 *FGR=41:14=2.928 |
41110-48060 |
US $2,751.84 |
||
|
41110D
|
41110D
90341-18035 Plug, No.1 (With Magnet)[07.2000 -] MCU15 |
90341-18035 |
from US $3.22 |
||
|
41110E
|
41110E
12157-10010 Gasket (For Drain Plug)[07.2000 -] MCU15 |
12157-10010 |
from US $0.76 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [07.2000 -] MCU15 |
90341-18032 |
from US $3.76 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[07.2000 -] MCU15 |
12157-10010 |
from US $0.76 |
||
|
41110K
|
41110K
90930-03129 Plug, Breather(For Parking Cover)[07.2000 -] MCU15 |
90930-03129 |
US $6.63 |
||
|
41181J
|
41181J
41181-48020 Cover, Rear Differential Carrier[07.2000 -] MCU15 |
41181-48020 |
US $116.48 |
||
|
41181P
|
41181P
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
[07.2000 -] MCU15 |
90105-10202 |
— | ||
| replacement | |||||
|
41181P
|
41181P
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[07.2000 -] MCU15 |
90105-10361 |
from US $0.96 |
||
|
41196
|
41196
41196-48040
Damper, Rear Differential Dynamic
[07.2000 -] MCU15 |
41196-48040 |
— | ||
|
41201
|
41201
41201-49145 Final Gear Kit, Differential, RearDIFFERENTIAL, REAR [06.2001 -] MCU15 *FGR=41:14=2.928 |
41201-49145 |
US $774.59 |
||
|
41201
|
41201
41201-80136 Final Gear Kit, Differential, Rear[07.2000 - 06.2001] MCU15 *FGR=41:14=2.928 |
41201-80136 |
US $814.20 |
||
|
41201A
|
41201A
90368-34049
Bearing (For Rear Drive Pinion Rear)
[07.2000 -] MCU15 |
90368-34049 |
— | ||
| replacement | |||||
|
41201A
|
41201A
90366-34019 Bearing (For Rear Drive Pinion Rear)[07.2000 -] MCU15 |
90366-34019 |
US $41.33 |
||
|
41201B
|
41201B
90368-30002 Bearing (For Rear Drive Pinion Front)[07.2000 -] MCU15 |
90368-30002 |
from US $36.62 |
||
|
41201C
|
41201C
90311-38068 Seal, Oil (For Front Differential Carrier)[07.2000 -] MCU15 |
90311-38068 |
from US $6.27 |
||
|
41201D
|
41201D
90201-35396 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.36,MARK 05 |
90201-35396 |
US $5.38 |
||
|
41201D
|
41201D
90201-35397 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.39,MARK 06 |
90201-35397 |
US $5.38 |
||
|
41201D
|
41201D
90201-35398 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.42,MARK 07 |
90201-35398 |
US $5.38 |
||
|
41201D
|
41201D
90201-35399 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.43,MARK 08 |
90201-35399 |
US $5.38 |
||
|
41201D
|
41201D
90201-35400 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.48,MARK 09 |
90201-35400 |
US $5.38 |
||
|
41201D
|
41201D
90201-35401 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.51,MARK 10 |
90201-35401 |
US $5.38 |
||
|
41201D
|
41201D
90201-35402 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.54,MARK 11 |
90201-35402 |
US $3.72 |
||
|
41201D
|
41201D
90201-35403 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.57,MARK 12 |
90201-35403 |
US $5.38 |
||
|
41201D
|
41201D
90201-35404 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.60,MARK 13 |
90201-35404 |
US $5.38 |
||
|
41201D
|
41201D
90201-35438 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.63,MARK 14 |
90201-35438 |
US $5.38 |
||
|
41201D
|
41201D
90201-35439 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.66,MARK 15 |
90201-35439 |
US $5.38 |
||
|
41201D
|
41201D
90201-35440 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.69,MARK 16 |
90201-35440 |
US $5.38 |
||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.27,MARK 02 |
90201-35516 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.30,MARK 03 |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[07.2000 -] MCU15 T=2.33,MARK 04 |
90201-35518 |
from US $2.15 |
||
|
41201D
|
41201D
90564-34001
Shim (For Power Take-Off Output Shaft)
[06.2001 -] MCU15 T=2.30,MARK 30 |
90564-34001 |
— | ||
|
41201D
|
41201D
90564-34002
Washer, Plate (For Rear Differential Drive Pinion)
[06.2001 -] MCU15 T=2.31,MARK 31 |
90564-34002 |
— | ||
|
41201D
|
41201D
90564-34003 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.32,MARK 32 |
90564-34003 |
US $3.06 |
||
|
41201D
|
41201D
90564-34004 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.33,MARK 33 |
90564-34004 |
US $3.06 |
||
|
41201D
|
41201D
90564-34005 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.34,MARK 34 |
90564-34005 |
US $3.06 |
||
|
41201D
|
41201D
90564-34006 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.35,MARK 35 |
90564-34006 |
US $3.06 |
||
|
41201D
|
41201D
90564-34007 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.36,MARK 36 |
90564-34007 |
US $3.06 |
||
|
41201D
|
41201D
90564-34008 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.37,MARK 37 |
90564-34008 |
US $3.06 |
||
|
41201D
|
41201D
90564-34009 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.38,MARK 38 |
90564-34009 |
US $3.06 |
||
|
41201D
|
41201D
90564-34010 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.39,MARK 39 |
90564-34010 |
US $3.06 |
||
|
41201D
|
41201D
90564-34011 Shim (For Power Take-Off Output Shaft)[06.2001 -] MCU15 T=2.40,MARK 40 |
90564-34011 |
US $3.06 |
||
|
41201D
|
41201D
90564-34012 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.41,MARK 41 |
90564-34012 |
US $3.06 |
||
|
41201D
|
41201D
90564-34013 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.42,MARK 42 |
90564-34013 |
US $3.06 |
||
|
41201D
|
41201D
90564-34014 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.43,MARK 43 |
90564-34014 |
US $3.06 |
||
|
41201D
|
41201D
90564-34015 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.44,MARK 44 |
90564-34015 |
US $3.06 |
||
|
41201D
|
41201D
90564-34016 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.45,MARK 45 |
90564-34016 |
US $3.06 |
||
|
41201D
|
41201D
90564-34017 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.46,MARK 46 |
90564-34017 |
US $3.06 |
||
|
41201D
|
41201D
90564-34018 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.47,MARK 47 |
90564-34018 |
US $3.06 |
||
|
41201D
|
41201D
90564-34019 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.48,MARK 48 |
90564-34019 |
US $3.06 |
||
|
41201D
|
41201D
90564-34020 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.49,MARK 49 |
90564-34020 |
US $3.06 |
||
|
41201D
|
41201D
90564-34021 Shim (For Power Take-Off Output Shaft)[06.2001 -] MCU15 T=2.50,MARK 50 |
90564-34021 |
US $3.06 |
||
|
41201D
|
41201D
90564-34022
Washer, Plate (For Rear Differential Drive Pinion)
[06.2001 -] MCU15 T=2.51,MARK 51 |
90564-34022 |
— | ||
|
41201D
|
41201D
90564-34023
Washer, Plate (For Rear Differential Drive Pinion)
[06.2001 -] MCU15 T=2.52,MARK 52 |
90564-34023 |
— | ||
|
41201D
|
41201D
90564-34024 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.53,MARK 53 |
90564-34024 |
US $3.06 |
||
|
41201D
|
41201D
90564-34025 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.54,MARK 54 |
90564-34025 |
US $3.06 |
||
|
41201D
|
41201D
90564-34026 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.55,MARK 55 |
90564-34026 |
US $3.06 |
||
|
41201D
|
41201D
90564-34027 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.56,MARK 56 |
90564-34027 |
US $3.20 |
||
|
41201D
|
41201D
90564-34028 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.57,MARK 57 |
90564-34028 |
US $3.20 |
||
|
41201D
|
41201D
90564-34029 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.58,MARK 58 |
90564-34029 |
US $3.20 |
||
|
41201D
|
41201D
90564-34030 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.59,MARK 59 |
90564-34030 |
US $3.20 |
||
|
41201D
|
41201D
90564-34031 Shim (For Power Take-Off Output Shaft)[06.2001 -] MCU15 T=2.60,MARK 60 |
90564-34031 |
US $3.20 |
||
|
41201D
|
41201D
90564-34032 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.61,MARK 61 |
90564-34032 |
US $3.20 |
||
|
41201D
|
41201D
90564-34033 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.62,MARK 62 |
90564-34033 |
US $3.20 |
||
|
41201D
|
41201D
90564-34034 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.63,MARK 63 |
90564-34034 |
US $3.20 |
||
|
41201D
|
41201D
90564-34035 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.64,MARK 64 |
90564-34035 |
US $3.20 |
||
|
41201D
|
41201D
90564-34036 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.65,MARK 65 |
90564-34036 |
US $3.20 |
||
|
41201D
|
41201D
90564-34037 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.66,MARK 66 |
90564-34037 |
US $3.20 |
||
|
41201D
|
41201D
90564-34038 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.67,MARK 67 |
90564-34038 |
US $3.20 |
||
|
41201D
|
41201D
90564-34039 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.68,MARK 68 |
90564-34039 |
US $3.20 |
||
|
41201D
|
41201D
90564-34040 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.69,MARK 69 |
90564-34040 |
US $3.20 |
||
|
41201D
|
41201D
90564-34041 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.70,MARK 70 |
90564-34041 |
US $3.20 |
||
|
41201D
|
41201D
90564-34042 Washer, Plate (For Rear Differential Drive Pinion)[06.2001 -] MCU15 T=2.71,MARK 71 |
90564-34042 |
US $3.20 |
||
|
41204
|
41204
41204-20040 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[07.2000 -] MCU15 |
41204-20040 |
from US $46.53 |
||
|
41204B
|
41204B
90179-18020 Nut (For Transfer Gear)[07.2000 -] MCU15 OD=33.5 |
90179-18020 |
from US $1.46 |
||
|
41214
|
41214
41214-20020 Slinger, Rear Differential Drive Pinion Oil[07.2000 -] MCU15 |
41214-20020 |
US $11.11 |
||
|
41222
|
41222
41222-28010 Plate, Rear Differential Ring Gear Set Bolt Lock[07.2000 -] MCU15 |
41222-28010 |
US $2.33 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[07.2000 -] MCU15 |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-22010 Spacer, Rear Differential Drive Pinion Bearing[07.2000 -] MCU15 |
41231-22010 |
from US $10.20 |
||
|
41252
|
41252
41252-48020 Deflector, Dust (For Rear Differential)[07.2000 -] MCU15 |
41252-48020 |
US $5.09 |
||
|
41301A
|
41301A
90368-41001 Bearing(For Rear Differential Case)[07.2000 -] MCU15 |
90368-41001 |
from US $39.65 |
||
|
41309A
|
41309A
41309-32020 Shaft Sub-Assy, Rear Differential Side Gear[07.2000 -] MCU15 |
41309-32020 |
US $129.58 |
||
|
41309B
|
41309B
90201-54001 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.22 |
90201-54001 |
from US $8.74 |
||
|
41309B
|
41309B
90201-54002 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.25 |
90201-54002 |
US $8.74 |
||
|
41309B
|
41309B
90201-54003 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.28 |
90201-54003 |
US $5.68 |
||
|
41309B
|
41309B
90201-54004 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.31 |
90201-54004 |
US $5.68 |
||
|
41309B
|
41309B
90201-54005 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.34 |
90201-54005 |
US $8.74 |
||
|
41309B
|
41309B
90201-54006 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.37 |
90201-54006 |
US $6.64 |
||
|
41309B
|
41309B
90201-54007 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.40 |
90201-54007 |
US $5.68 |
||
|
41309B
|
41309B
90201-54008 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.43 |
90201-54008 |
US $5.68 |
||
|
41309B
|
41309B
90201-54009 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.46 |
90201-54009 |
US $5.68 |
||
|
41309B
|
41309B
90201-54010 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.49 |
90201-54010 |
US $5.68 |
||
|
41309B
|
41309B
90201-54011 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.52 |
90201-54011 |
US $6.64 |
||
|
41309B
|
41309B
90201-54012 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.55 |
90201-54012 |
US $5.68 |
||
|
41309B
|
41309B
90201-54013 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.58 |
90201-54013 |
US $5.68 |
||
|
41309B
|
41309B
90201-54014 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.61 |
90201-54014 |
US $8.74 |
||
|
41309B
|
41309B
90201-54015 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.64 |
90201-54015 |
US $5.68 |
||
|
41309B
|
41309B
90201-54016 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.67 |
90201-54016 |
US $6.64 |
||
|
41309B
|
41309B
90201-54017 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.70 |
90201-54017 |
US $5.68 |
||
|
41309B
|
41309B
90201-54018 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.73 |
90201-54018 |
US $5.68 |
||
|
41309B
|
41309B
90201-54019 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.76 |
90201-54019 |
US $5.68 |
||
|
41309B
|
41309B
90201-54020 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.79 |
90201-54020 |
US $5.68 |
||
|
41309B
|
41309B
90201-54021 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.82 |
90201-54021 |
US $6.64 |
||
|
41309B
|
41309B
90201-54022 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.85 |
90201-54022 |
US $5.24 |
||
|
41309B
|
41309B
90201-54023 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.88 |
90201-54023 |
US $5.68 |
||
|
41309B
|
41309B
90201-54024 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.91 |
90201-54024 |
US $6.64 |
||
|
41309B
|
41309B
90201-54025 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.94 |
90201-54025 |
US $5.68 |
||
|
41309B
|
41309B
90201-54026 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=2.97 |
90201-54026 |
US $5.68 |
||
|
41309B
|
41309B
90201-54027 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.00 |
90201-54027 |
US $5.68 |
||
|
41309B
|
41309B
90201-54028 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.03 |
90201-54028 |
US $5.68 |
||
|
41309B
|
41309B
90201-54029 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.06 |
90201-54029 |
US $5.68 |
||
|
41309B
|
41309B
90201-54030 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.09 |
90201-54030 |
US $5.68 |
||
|
41309B
|
41309B
90201-54031 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.12 |
90201-54031 |
US $5.68 |
||
|
41309B
|
41309B
90201-54032 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.15 |
90201-54032 |
US $5.68 |
||
|
41309B
|
41309B
90201-54033 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.18 |
90201-54033 |
US $5.68 |
||
|
41309B
|
41309B
90201-54034 Washer, Plate (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 T=3.21 |
90201-54034 |
US $5.68 |
||
|
41309C
|
41309C
90114-10028 Bolt (For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 |
90114-10028 |
US $2.15 |
||
|
41309D
|
41309D
90311-35032 Seal, Oil (For Differential Side Gear Shaft)[07.2000 -] MCU15 |
90311-35032 |
from US $8.42 |
||
|
41311J
|
41311J
41311-14031 Case Sub-Assy, Rear Differential[07.2000 -] MCU15 |
41311-14031 |
US $165.98 |
||
|
41331
|
41331
41331-28010 Gear, Rear Differential Side[07.2000 -] MCU15 |
41331-28010 |
US $46.59 |
||
|
41334D
|
41334D
90520-22012 Ring, Hole Snap (For Differential Side Gear Shaft)[07.2000 -] MCU15 |
90520-22012 |
US $2.87 |
||
|
41336
|
41336
41336-14010 Cover, Dust(For Rear Differential Side Gear Shaft)[07.2000 -] MCU15 |
41336-14010 |
from US $7.96 |
||
|
41341
|
41341
41341-22020
Pinion, Rear Differential
[07.2000 -] MCU15 |
41341-22020 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-12030 Pinion, Rear Differential[07.2000 -] MCU15 |
41341-12030 |
US $23.06 |
||
|
41342
|
41342
41342-22010 Shaft, Rear Differential Pinion[07.2000 -] MCU15 |
41342-22010 |
US $10.92 |
||
|
41342B
|
41342B
90250-04193 Pin, Straight (For Front Differential Pinion Shaft)[07.2000 -] MCU15 |
90250-04193 |
US $1.46 |
||
|
41351
|
41351
41351-12030 Washer, Rear Differential Pinion Thrust[07.2000 -] MCU15 |
41351-12030 |
from US $1.72 |
||
|
41361
|
41361
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.00,MARK 02 |
41361-22020 |
US $2.80 |
||
|
41361
|
41361
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.10,MARK 03 |
41361-22030 |
US $2.80 |
||
|
41361
|
41361
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.20,MARK 04 |
41361-22040 |
from US $3.92 |
||
|
41361
|
41361
41361-22120 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.30,MARK 12 |
41361-22120 |
US $5.24 |
||
|
41361
|
41361
41361-22130 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.40,MARK 13 |
41361-22130 |
US $5.59 |
||
|
41361
|
41361
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=0.95,MARK 14 |
41361-22140 |
US $2.53 |
||
|
41361
|
41361
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.05,MARK 15 |
41361-22150 |
US $2.62 |
||
|
41361
|
41361
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.15,MARK 16 |
41361-22160 |
US $2.62 |
||
|
41361
|
41361
41361-22170 Washer, Rear Differential Side Gear Thrust, No.1[07.2000 -] MCU15 T=1.25,MARK 17 |
41361-22170 |
US $2.97 |
||
|
41361
|
41361
41361-22180
Washer, Rear Differential Side Gear Thrust, No.1
[07.2000 -] MCU15 T=1.35,MARK 18 |
41361-22180 |
— | ||
|
41651
|
41651
41651-48020 Cushion, Rear Differential Mount, No.1[07.2000 -] MCU15 |
41651-48020 |
from US $38.71 |
||
|
41651A
|
41651A
41651-48030 Cushion, Rear Differential Mount, No.2[07.2000 -] MCU15 |
41651-48030 |
from US $37.26 |
||
|
52380
|
52380
52380-48010
Support, Rear Differential, No.1
[08.2001 -] MCU15..LHD SAUDI ARABIA,GULF SPEC |
52380-48010 |
— | ||
|
52380
|
52380
52380-48021
Support, Rear Differential, No.1
[07.2000 -] MCU15 |
52380-48021 |
— | ||
|
9011912315
|
9011912315
90119-12315
New Genuine Part
|
90119-12315 |
— | ||
| replacement | |||||
|
9011912315
|
9011912315
90119-12335 New Genuine Part |
90119-12335 |
US $7.17 |
||
|
9011914099
|
9011914099
90119-14099 New Genuine Part |
90119-14099 |
US $3.40 |
||
|
9011914109
|
9011914109
90119-14109 New Genuine Part |
90119-14109 |
US $6.45 |
||
|
9017912100
|
9017912100
90179-12100 Nut(For Rear Suspension Arm) |
90179-12100 |
from US $1.31 |
||
|
9017912155
|
9017912155
90179-12155 New Genuine Part |
90179-12155 |
US $5.24 |
||
|
9090119050
|
9090119050
90901-19050 New Genuine Part |
90901-19050 |
US $16.60 |
||
